Your solution for an oil-free kitchen
Cooking with oil means delicious meals for your family but an oily kitchen as well. Unless you have the OIL SMASHER cooker hood that is.
This state-of-the-art, super-sleek hood features patented OIL SMASHER technology. An internal high-speed spinning disk captures the oil to stop build-up on your kitchen surfaces. The innovative cleaning reminder alarm lets you know when it’s time to clean the disk. Simply remove, wash easily and replace as new. Your kitchen has never felt so clean.
Country of Origin: Made in Japan
Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

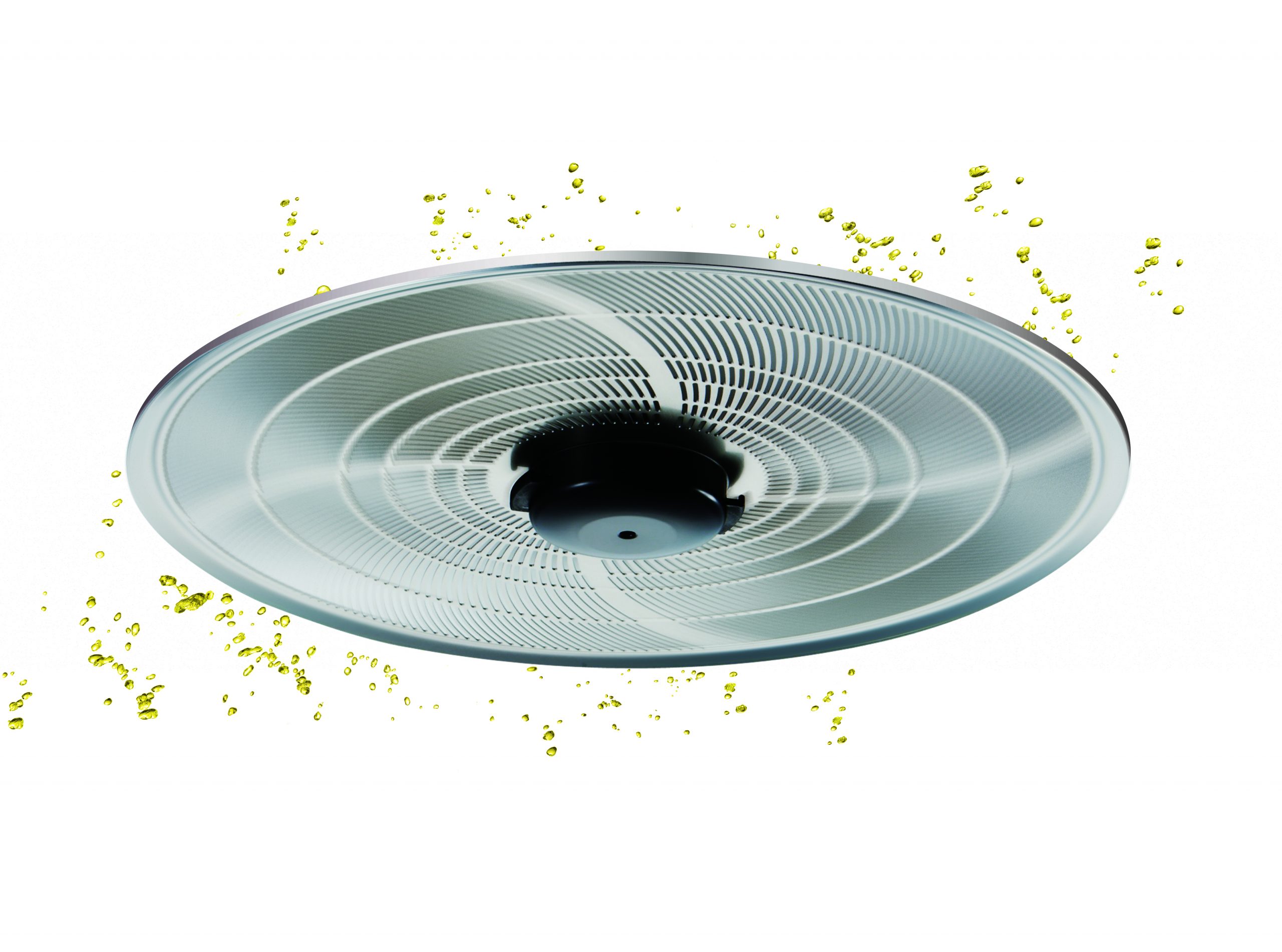

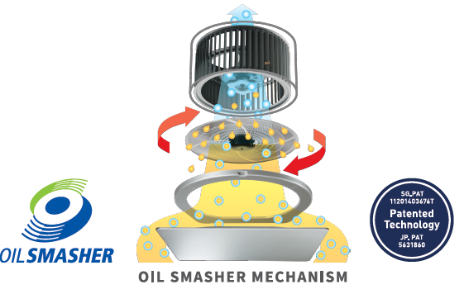

Patented OIL SMASHER High-speed Spinning Disk keeps oil out.

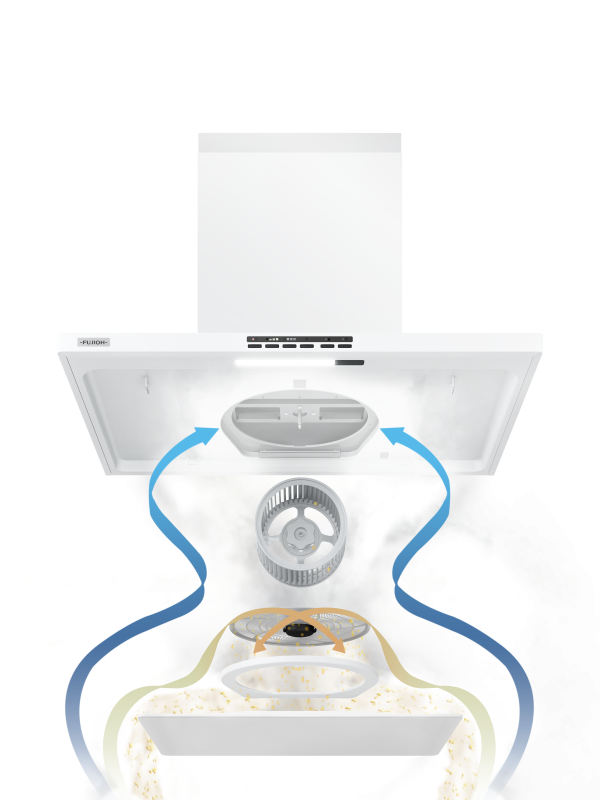

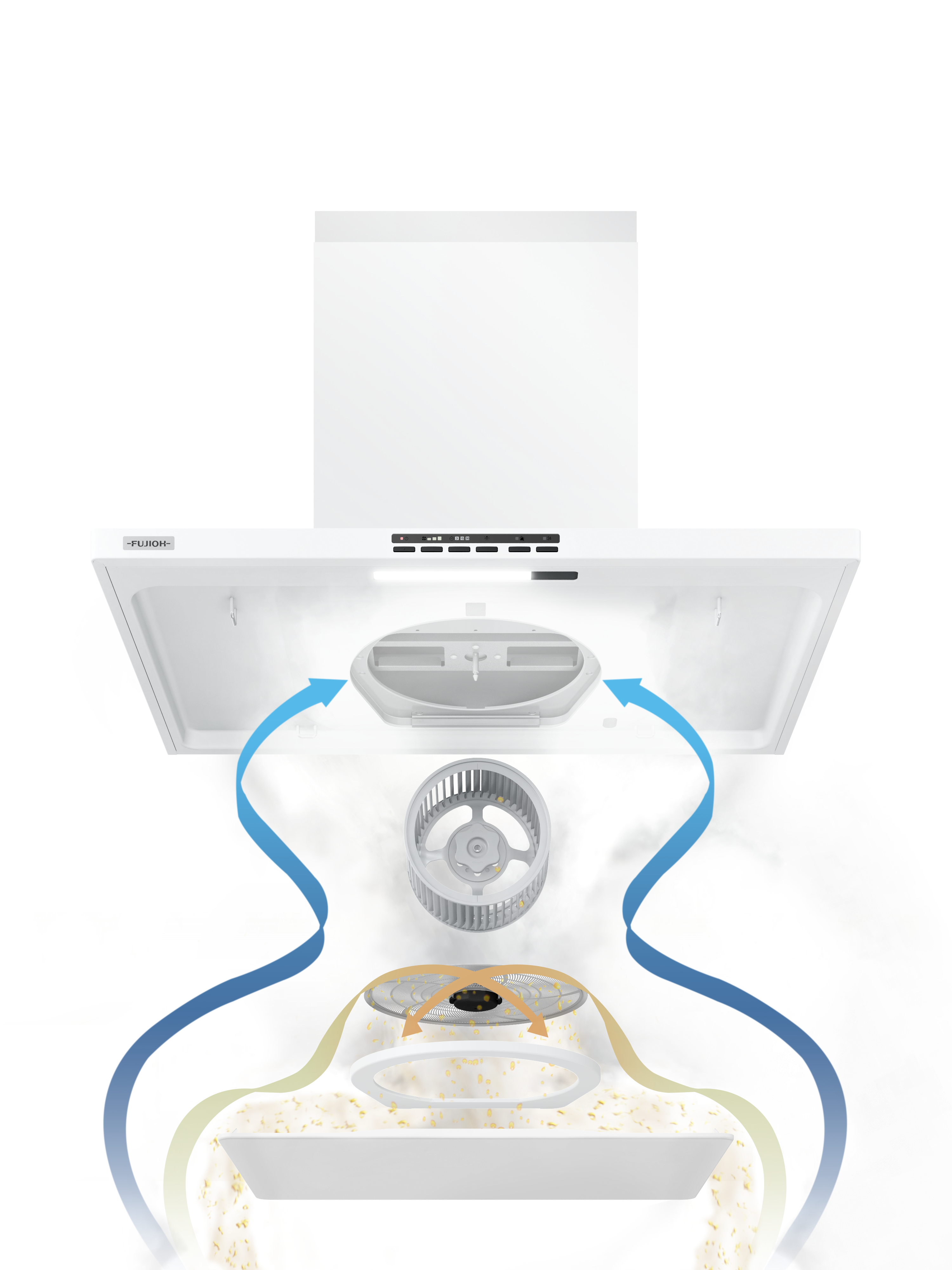

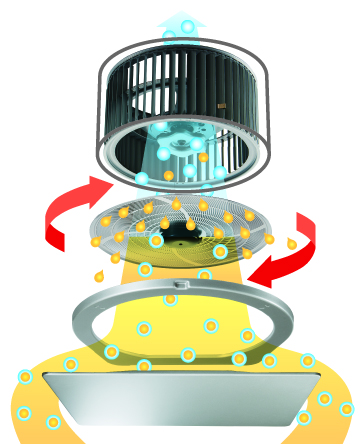

The disk spins and catches most of the oil in the cooking fumes. The oil on the disk is spun off by centrifugal force and collects in the oil tray.

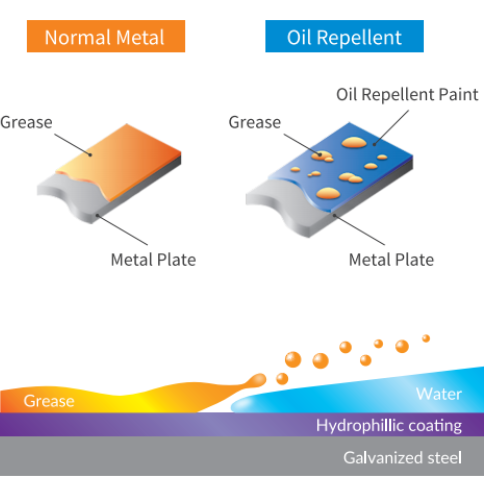

The material repels oil and lifts it from the surface so it’s easy to wipe up. Cleaning takes much lesser time and effort compared to conventional materials.

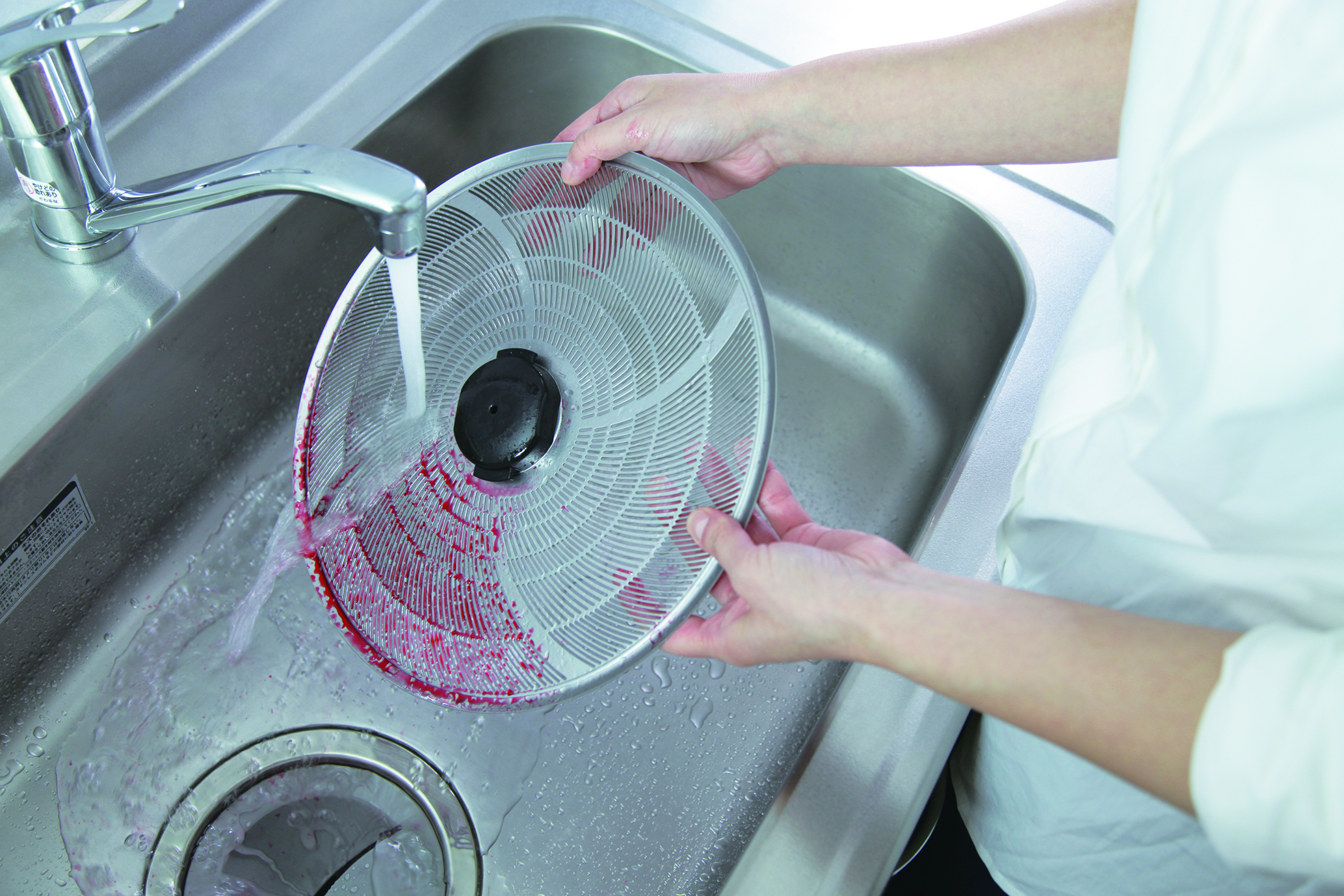

Oil gets lifted from the surface by water thanks to the hydrophilic coating. That’s what makes the disk so easy to clean.

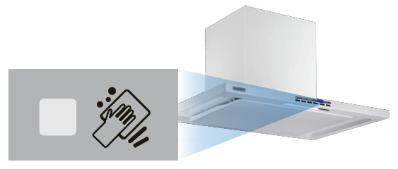

Reminds you when it’s time to clean, so you’ll never forget.
Cleaning lamp lights up according to the total running time of the cooker hood.
*Items to clean: Parts that can be removed and cleaned (oil tray and disk)
*Time when running for 24 hour mode does not count
*Wipe off the rectifier panel and oil panel in normal daily care

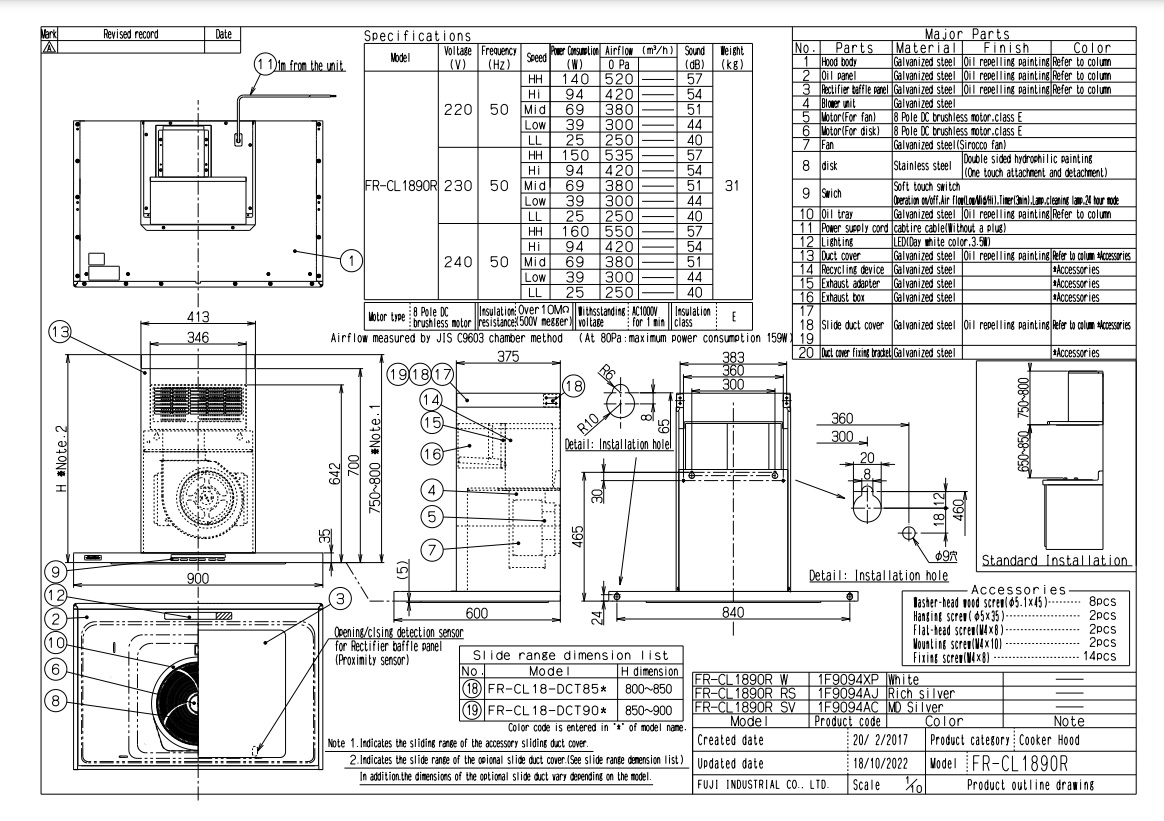

Models |
FR-CL1890R |
FR-CL1890V |
|---|---|---|
Type |
Recycling |
Ventilation |
Material |
(Body) Galvanized Steel |
(Body) Galvanized Steel |

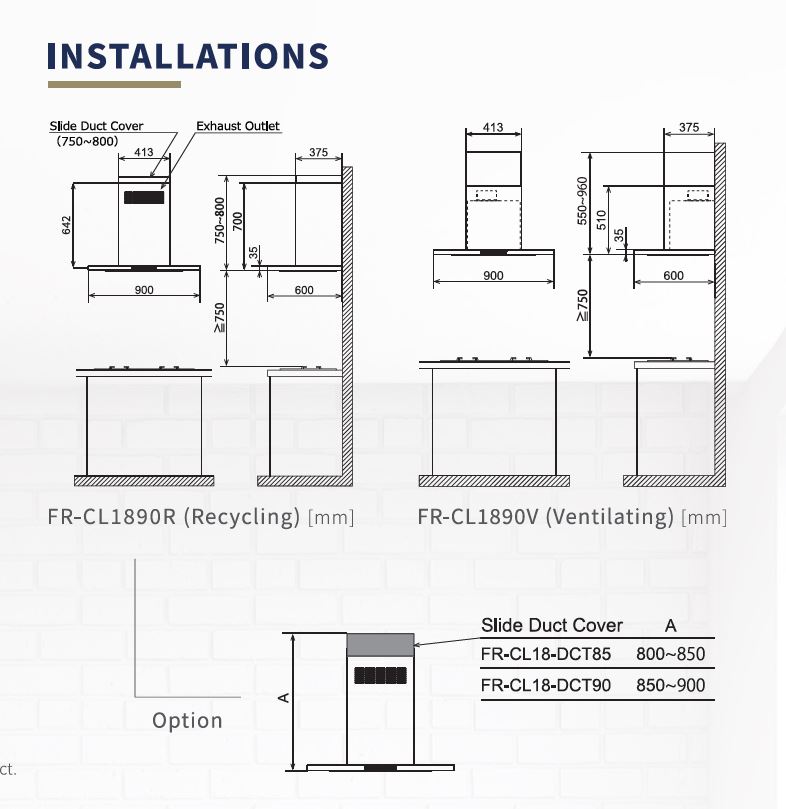

Dimensions [mm] |
W900 x D600 x H750~800 |
W900 x D600 x H550~960 |
Weight [kg] |
31 |
28 |
Power Consumption [W] (220/230/240V) |
94/94/94 |
62/62/62 |
Voltage [V/Hz] |
220-240/50 |
220-240/50 |
Duct Diameter [mm] |
- |
150 |
Air Flow [m3/h] (220/230/240V) |
420/420/420 |
420/420/420 |
Sound Level [dB] (220/230/240V) |
54/54/54 |
46/46/46 |
Oil Capturing Ratio [%] |
94 |
91 |
Switch |
Electronic Soft Touch |
Electronic Soft Touch |
Speed |
3 Speed & Boost mode & 24 hour mode |
3 Speed & Boost mode & 24 hour mode |
Hood Body |
Oil Repellent Paint |
Oil Repellent Paint |
Fan |
Steel fan |
Steel fan |
Rectifier Panel |
Oil Repellent Paint |
Oil Repellent Paint |
Filter |
Aqua Slit Spinning Disk Stainless Steel with Hydrophilic Coating |
Aqua Slit Spinning Disk Stainless Steel with Hydrophilic Coating |
Oil Tray |
Oil Repellent Paint |
Oil Repellent Paint |
Motor |
DC Motor |
DC Motor |
Lighting |
LED 3.5W x 1 |
LED 3.5W x 1 |
Timer |
3/15/30 min & Cleaning Lamp Function |
3/15/30 min & Cleaning Lamp Function |
- Oil Tray
- Aqua Slit Spinning Disk
- Rectifier Panel
