900MM CHIMNEY COOKER HOOD WITH GLASS PANEL
FR-HT2190 V
Icon Include
Oil Repellent Filter
Icon Include
Rectifier Panel
Icon Include
Touch Switch
Icon Include
Timer
Icon Include
LED
Icon Include
Oil Tray

Sleek design meets perfect functionality!

Introducing the brand-new stylish FR-HT21 cooker hood that comes with all black rectifier panel and oil panel, giving a complete black sleek finishing.

Moreover, the hood allow you easy accessibility through the front black glass panel with touch screen adds elegancy to the next level. With advanced features that ensure the high fume and oil suction, also the easy cleaning slot filter, this cooker hood will leave your kitchen feeling fresh even in a rush.

Country of Origin: Made in China

Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

  • Slot Filter with Oil Repellent Coating
  • Touch Switch Panel
  • Metal Fan with Double Side Suction
Clear
Feature
EFFICIENT SUCTION WITH RECTIFIER PANEL Icon

The customized rectifier panel makes the inlet opening narrower, improving the efficiency of fume suction. Moreover, with the combination of slot filter able to contributes in high oil capturing up to 88%.

METAL FAN WITH DOUBLE SIDE SUCTION

The compact metal fan with double side suction for efficient smoke suction.

Feature
Feature
EASY CLEANING Icon

Slot filter (Made in Japan) coated with oil repellent coating which repels and do not allow oil to stick on the metal surface, making the filter surface easy to clean.

9 MINS TIMER Icon
ECO LED LIGHTING Icon

Models

FR-HT2190V

Type

Ventilation

Dimensions [mm]

W895 x D505 x H590~1030

Weight [kg]

18.5

Power Consumption [W]

(220/230/240V)

244/260/275

Voltage [V/Hz]

220,230,240/50

Duct Diameter [mm]

150

Sound Level [dB]

(220/230/240V)

58/59/59

Oil Capturing Ratio [%]

88

Switch

Touch Switch

Speed

3 Speeds

Hood Body

Black Coated Paint

Fan

Metal Fan

Rectifier Panel

Paint

Filter

Slot Filter
Oil Repellent Coating

Motor

AC Motor

Lighting

LED 1.5W x 2

Timer

9 mins

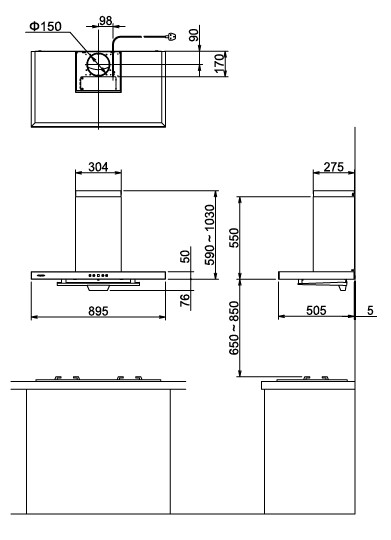

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing

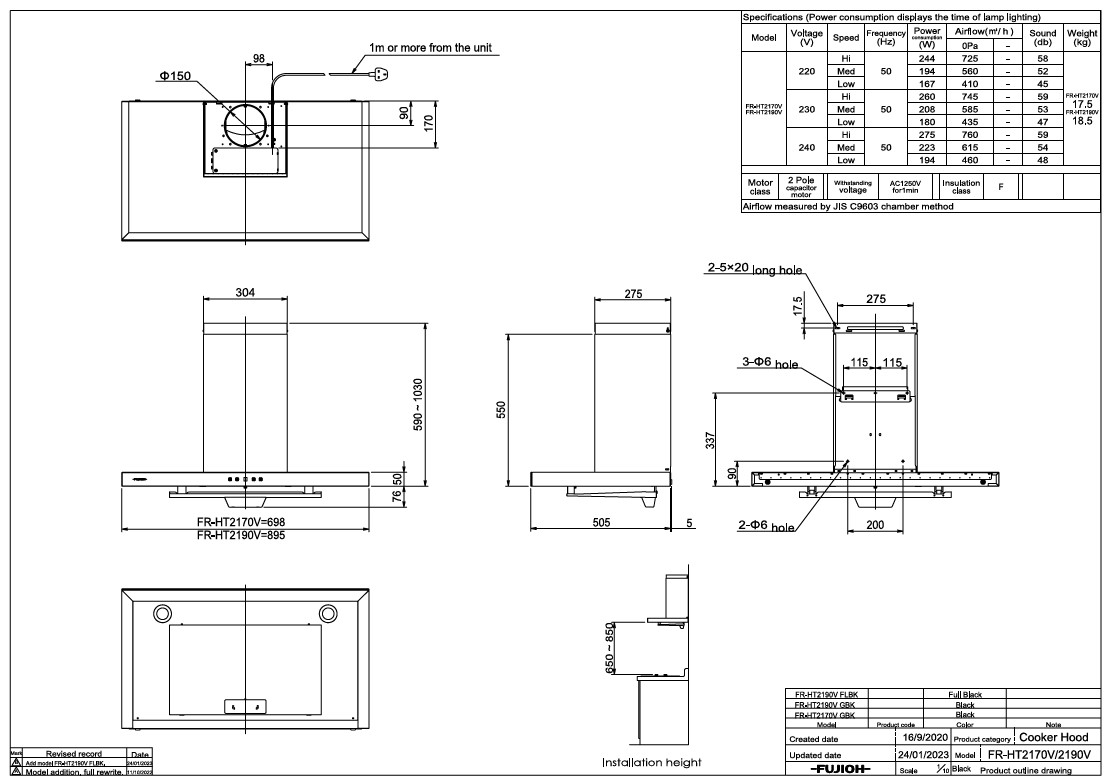

PRODUCT DRAWING

Please download Product Drawing here.

Drawing

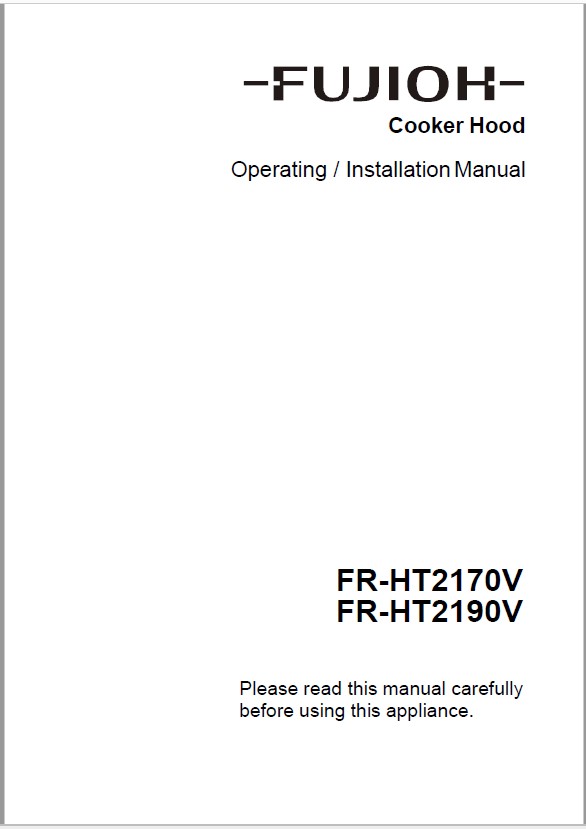

PRODUCT MANUAL

Please download Product Manual here.

Downloads
PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
Accessories
  • Oil Tray
  • Slot Filter
  • Rectifier Panel
CHECK FOR ACCESSORIES AVAILABILITY
