600mm Telescopic Cooker Hood

FR-AE2260 R/V

Telescopic Hood

Slim Design

Aluminium Filters

Charcoal Filters

LED

Beauty in Simplicity
Aesthetically hidden away in the quiet kitchen, a minimalist looking cooker hood takes its break. Slim design with sliding panel, the telescopic cooker hood comes to life with its hidden buttons on. Coupled with mesh and charcoal filters, it does what it has to do – remove grease and smell for a clean kitchen.

Simple, yet such a beauty.

Country of Origin: Made in China

Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

Slim Telescopic Hood with Sliding Front Panel
Aluminium Mesh Filters
Hidden Switches

01/ Slim Telescopic Hood with Sliding Front Panel Icon

Slim telescopic hood with sliding front panel for minimalist looking kitchen

02/ Aluminium Mesh Filters Icon

Equipped with 2 aluminium mesh filters

03/ Charcoal Filters Icon

Equipped with 2 charcoal filters to reduce grease smell (applicable for Recycling type only)

03/ Hidden Switches

Hidden switches for minimalist design

Hidden Switch (1): Light On/Off
Hidden Switch (2): Off / High
Hidden Switch (3): Low Speed/ Off/ Medium Speed

04/ Eco LED Lighting Icon

LED 2.oW x 2

Models	FR-AE2260R	FR-AE2260V
Type	Recycling	Ventilation
Material	SUS430	SUS430

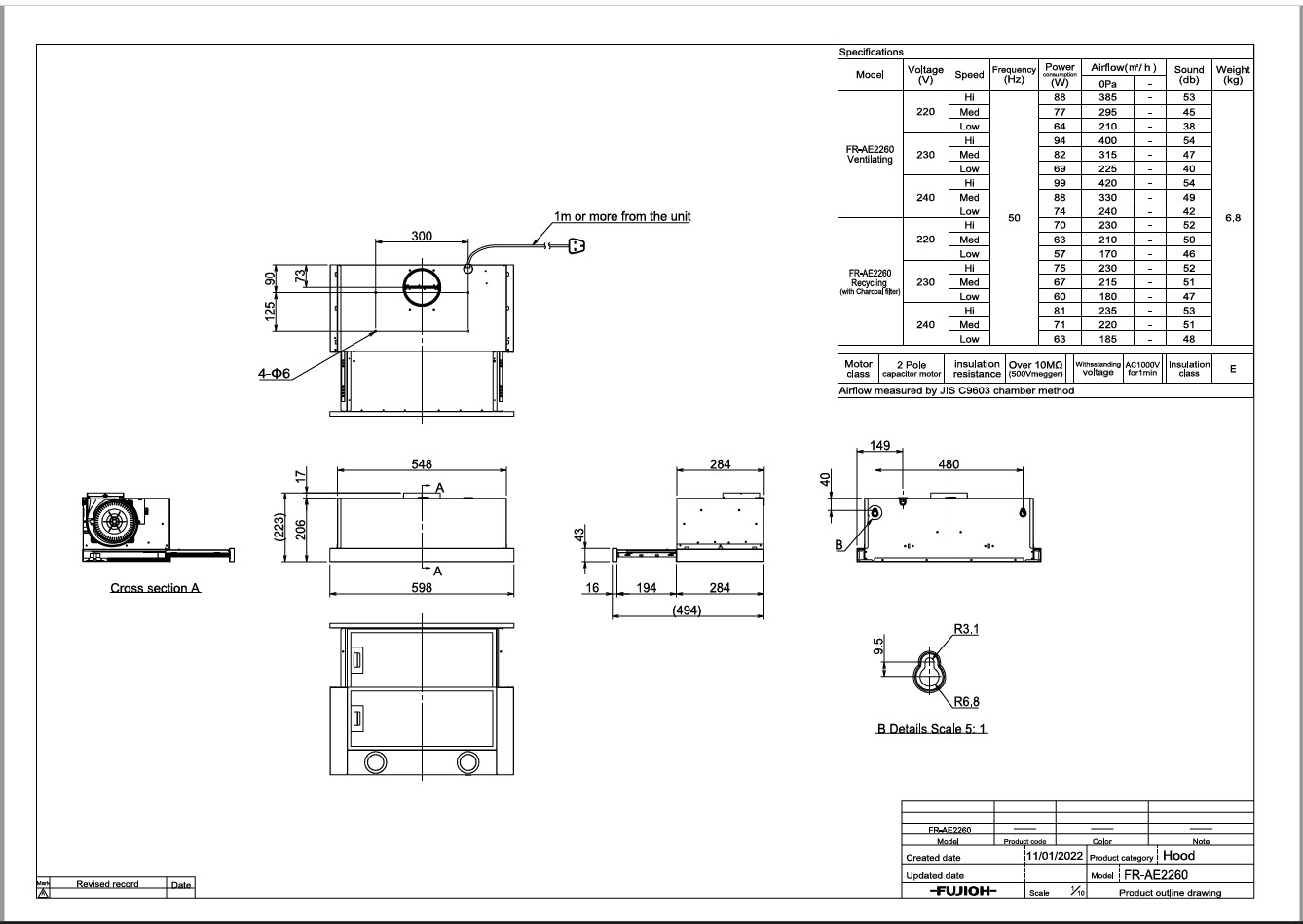

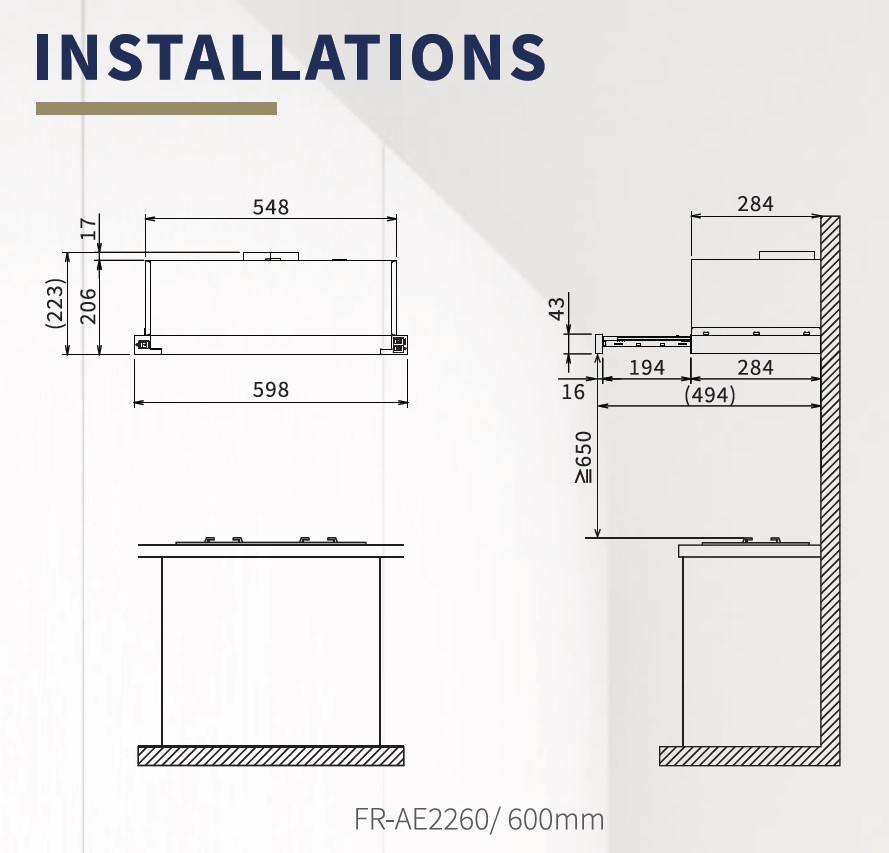

Dimensions [mm]	W598 x D300 - 494 x H206	W598 x D300 - 494 x H206
Weight [kg]	6.8	6.8
Power Consumption [W] (220/230/240V)	70/75/81	88/94/99
Voltage [V/Hz]	220, 230, 240/50	220, 230, 240/50
Duct Diameter [mm]	-	120
Air Flow [m3/h] (220/230/240V)	230/230/235	385/400/420
Sound Level [dB] (220/230/240V)	52/52/53	53/54/54
Oil Capturing Ratio [%]	NA	NA
Switch	Rocket Switch	Rocket Switch
Speed	3 Speeds	3 Speeds
Hood Body	SUS430	SUS430
Fan	Plastic Fan	Plastic Fan
Rectifier Panel	NA	NA
Filter	Aluminium Mesh Filter x2 Chacoal Filter* x2	Aluminium Mesh Filter x2
Oil Tray	NA	NA
Motor	AC Motor	AC Motor
Lighting	LED 2.0W x 2	LED 2.0W x 2
Timer	NA	NA
