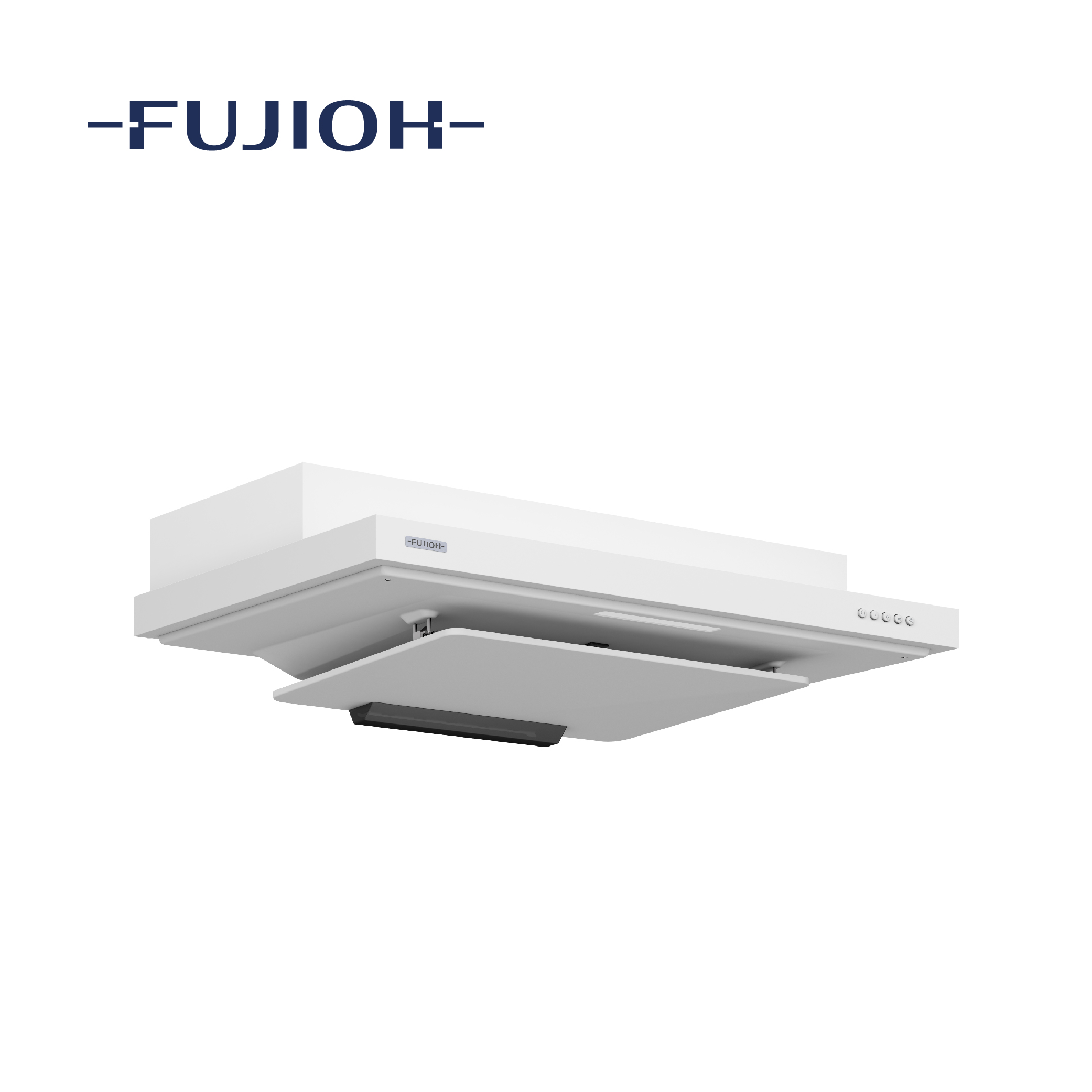

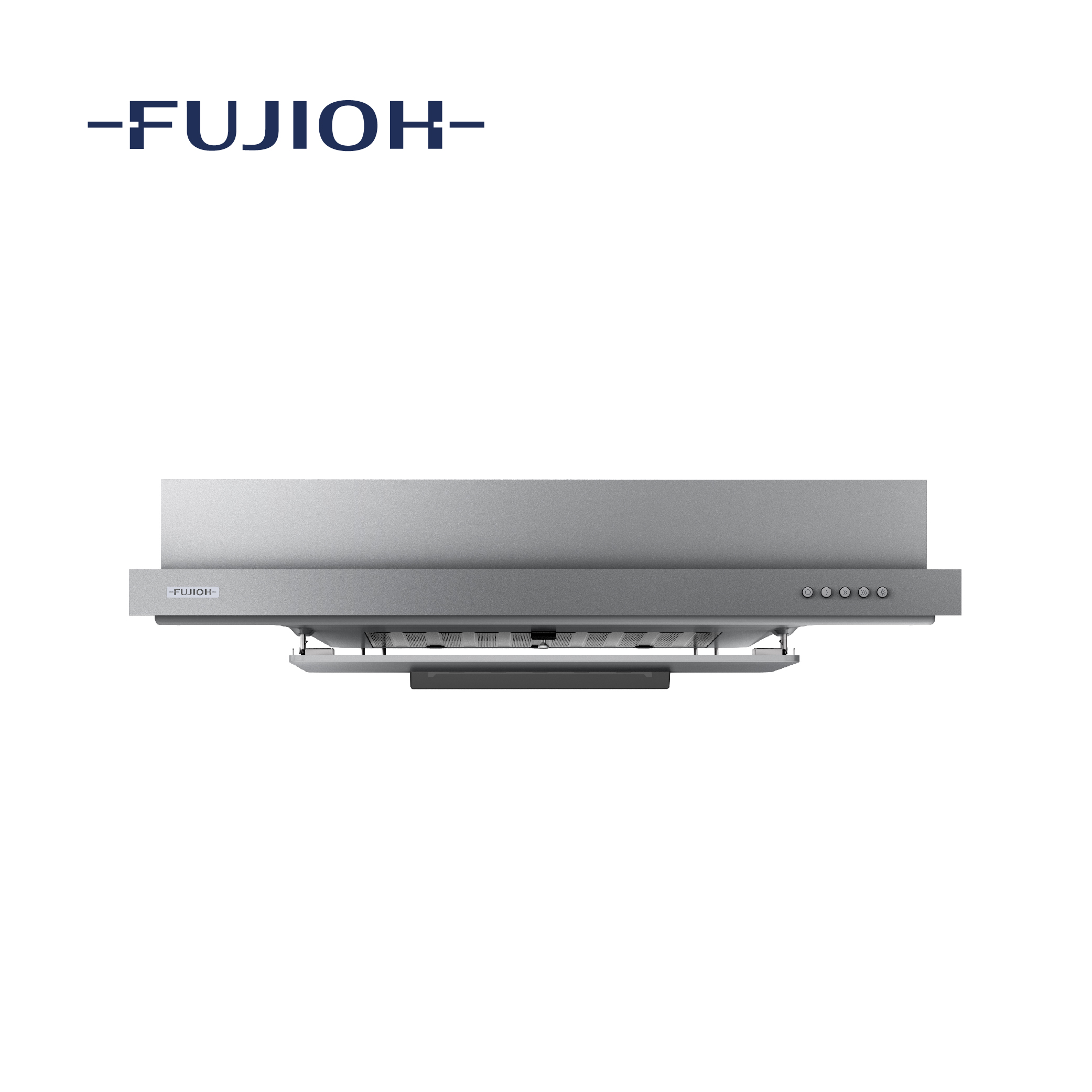

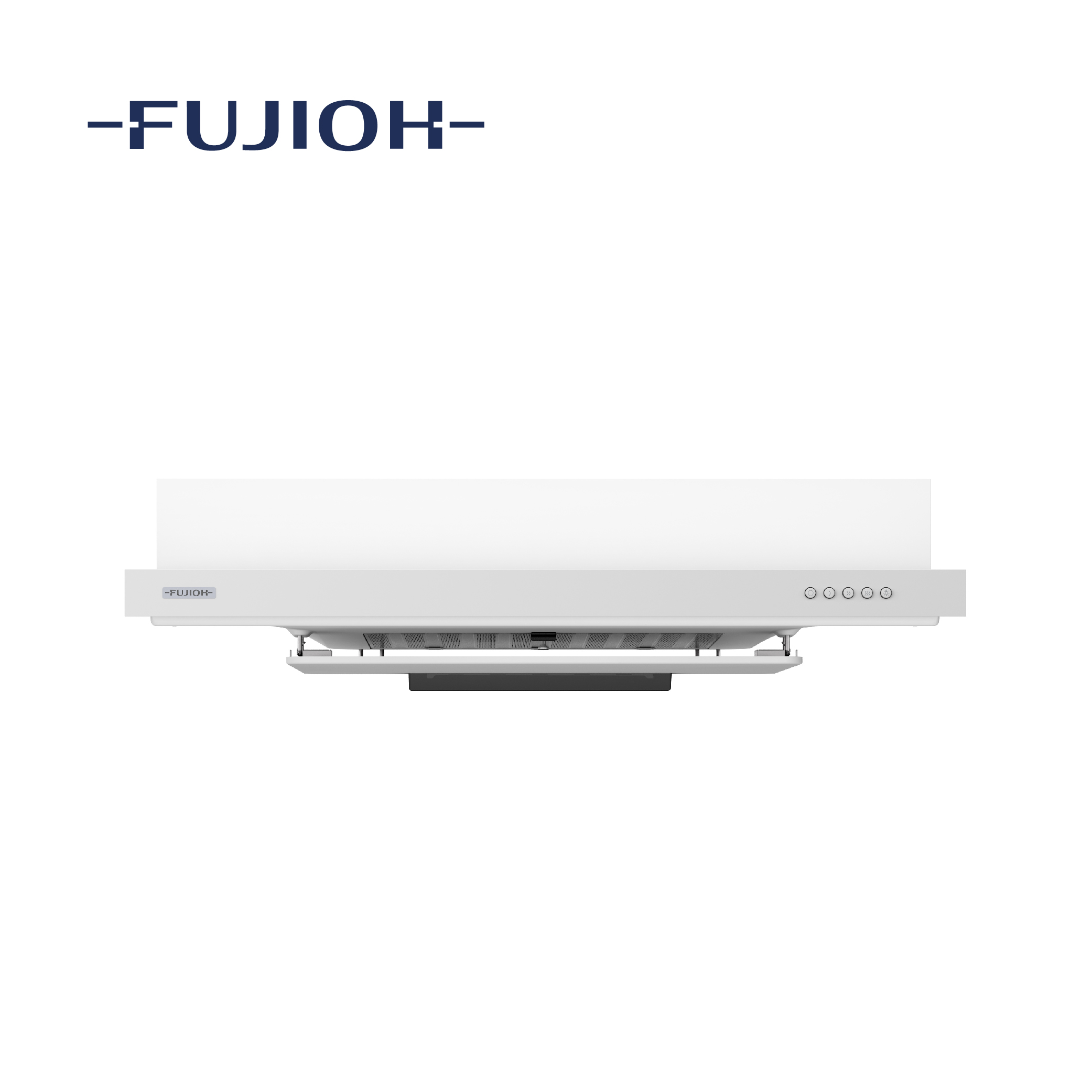

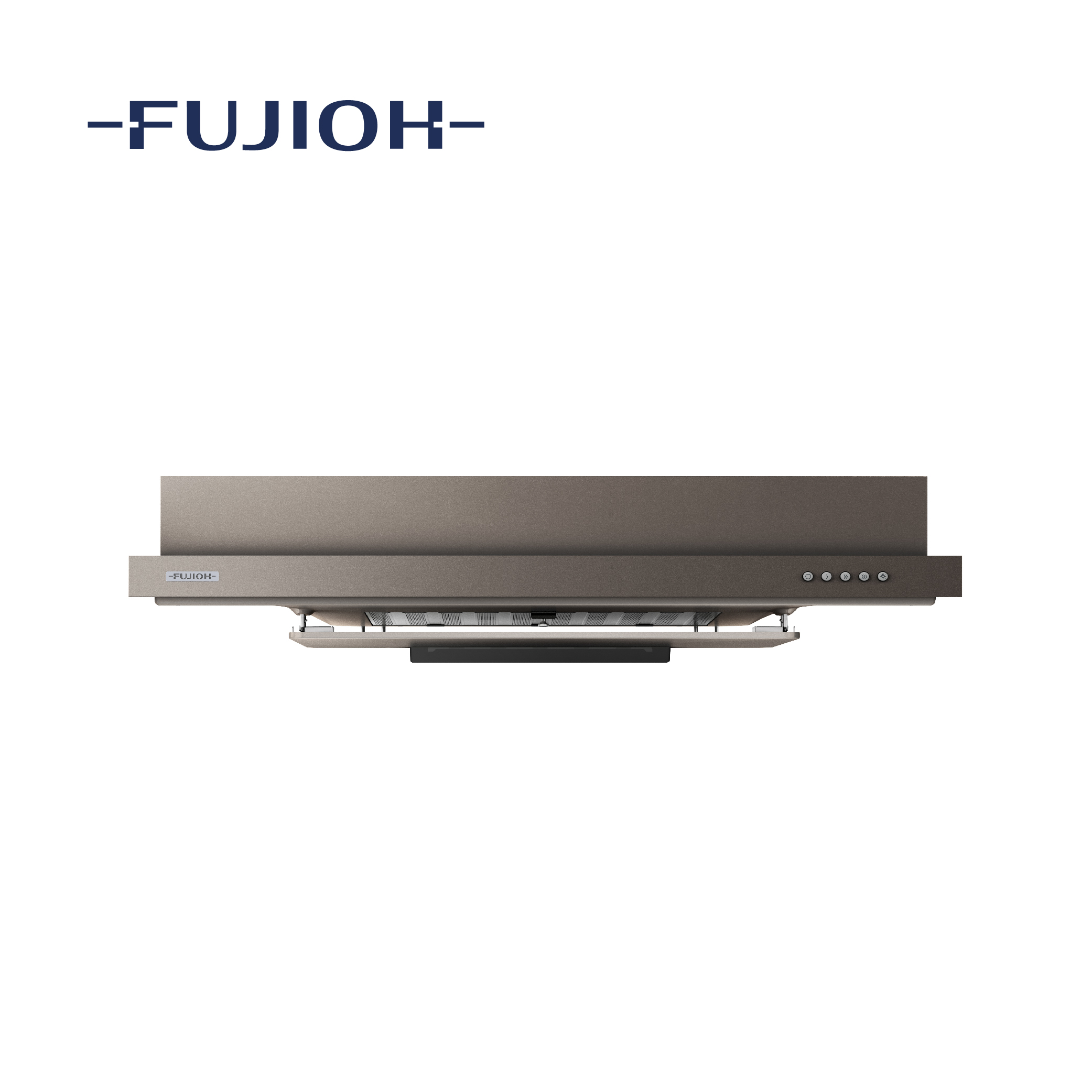

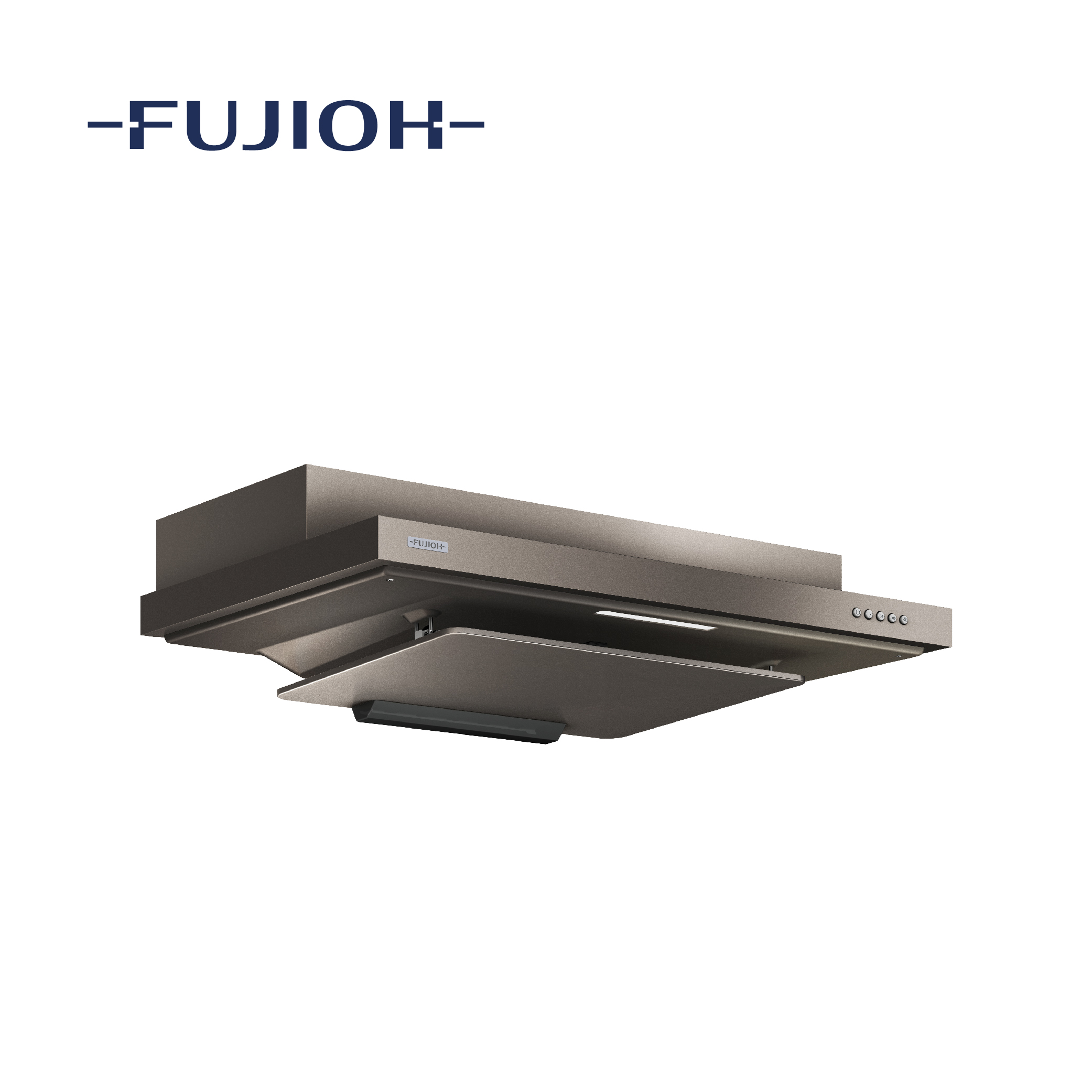

890mm Made in Japan Slim Cooker Hood

FR-FS2290 R/V

Super Kirei Fan

Double Aqua Slit Filter

Aqua Slit Filter

Oil Repellent Exterior Hood

Texture Coating

Rectifier Panel

Color Variation

Oil Tray

LED

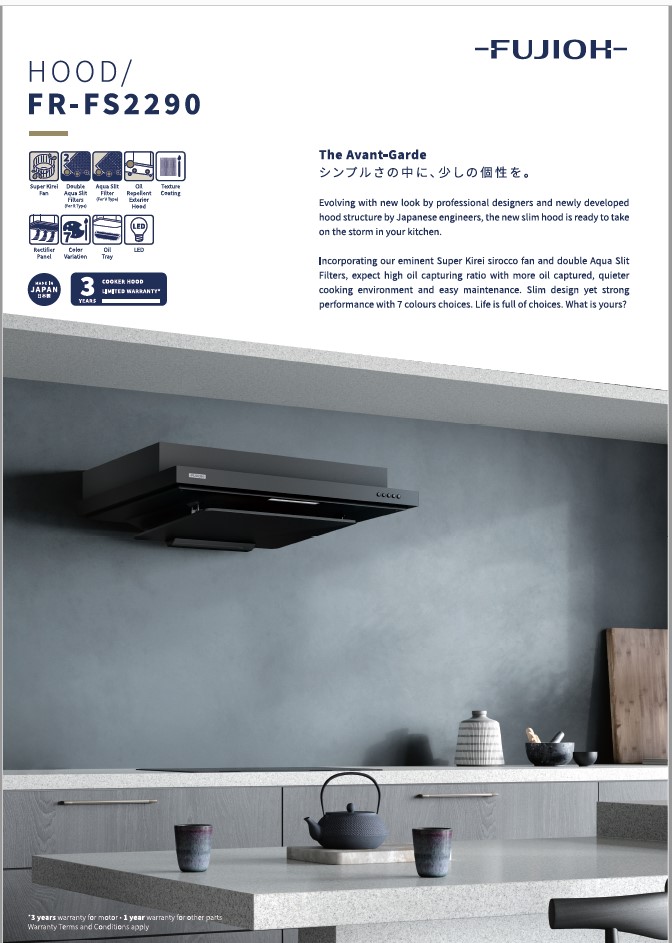

The Avant-Garde

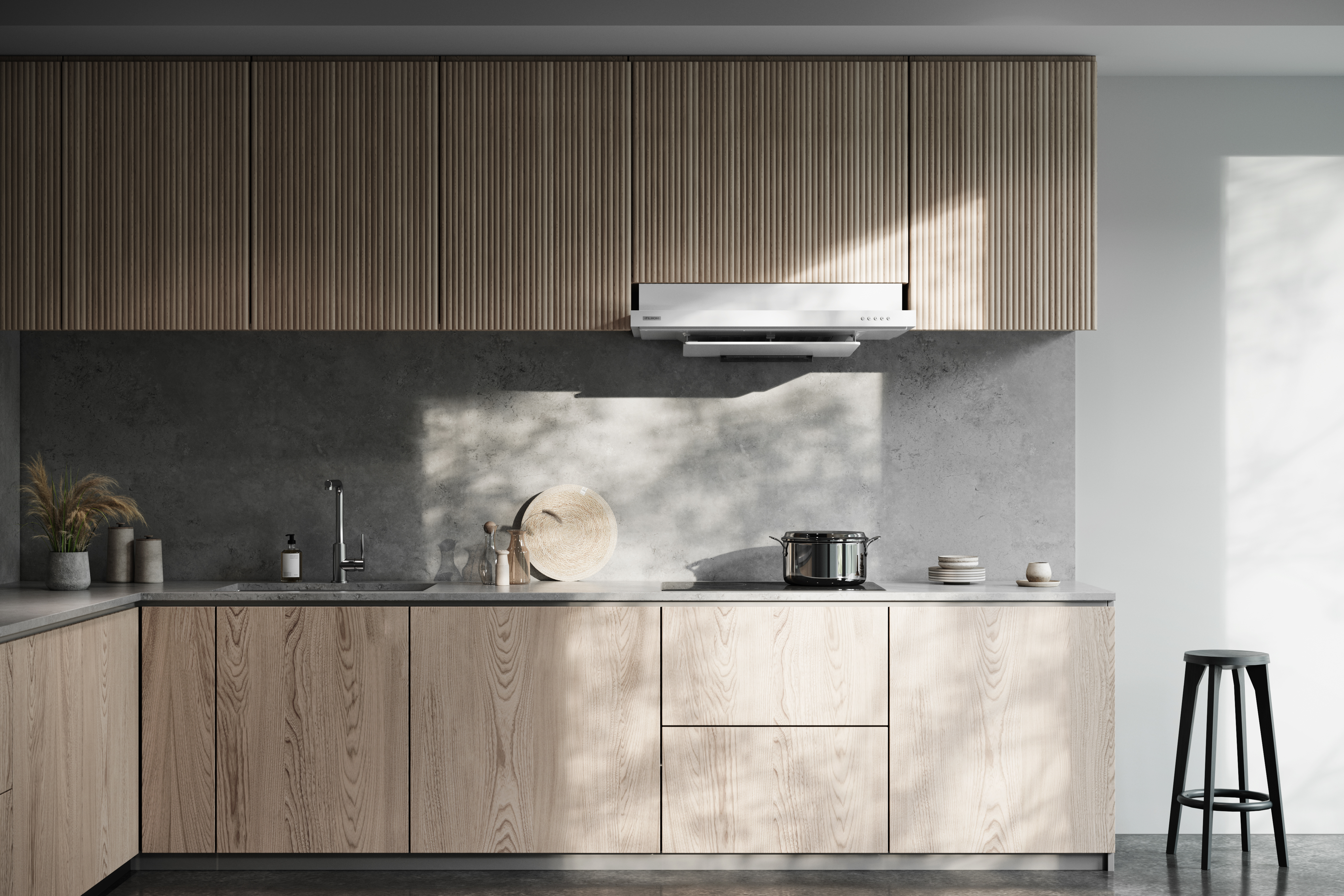

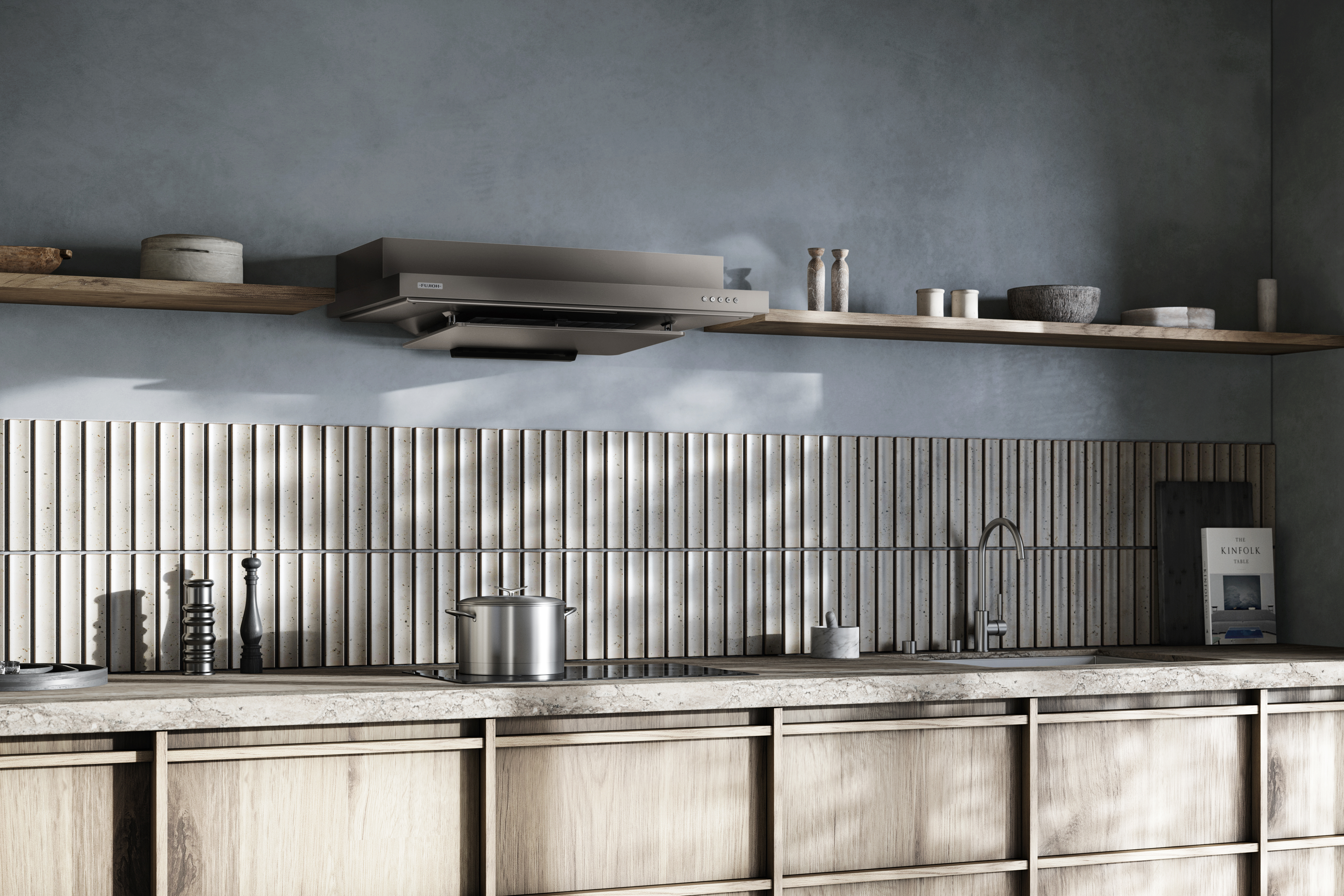

Evolving with new look by professional designers and newly developed hood structure by Japanese engineers, the new slim hood is ready to take on the storm in your kitchen.

Incorporating our eminent Super Kirei sirocco fan and double Aqua Slit Filters, expect high oil capturing ratio with more oil captured, quieter cooking environment and easy maintenance. Slim design yet strong performance with 7 colours choices. Life is full of choices. What is yours?

Country of Origin: Made in Japan

Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

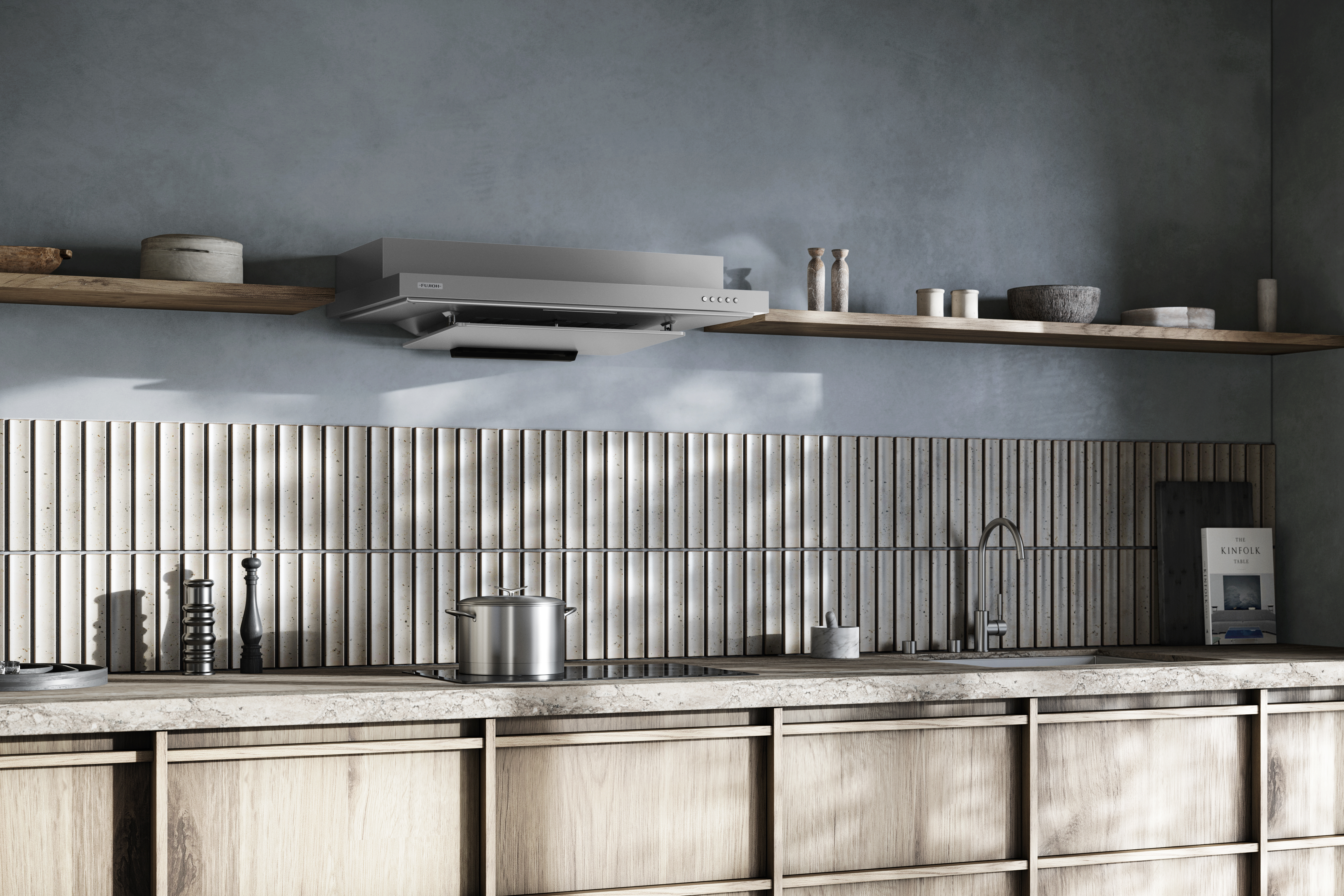

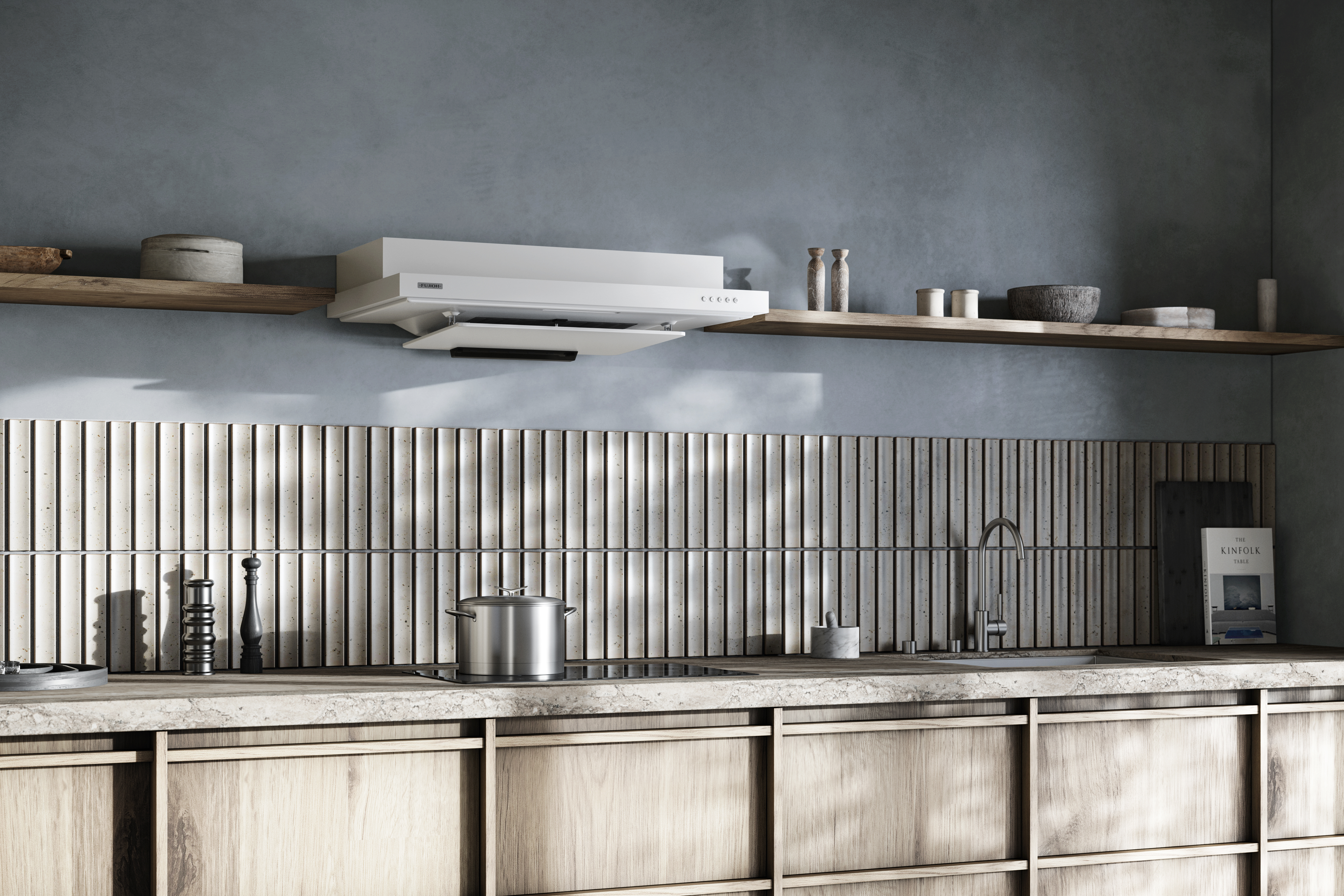

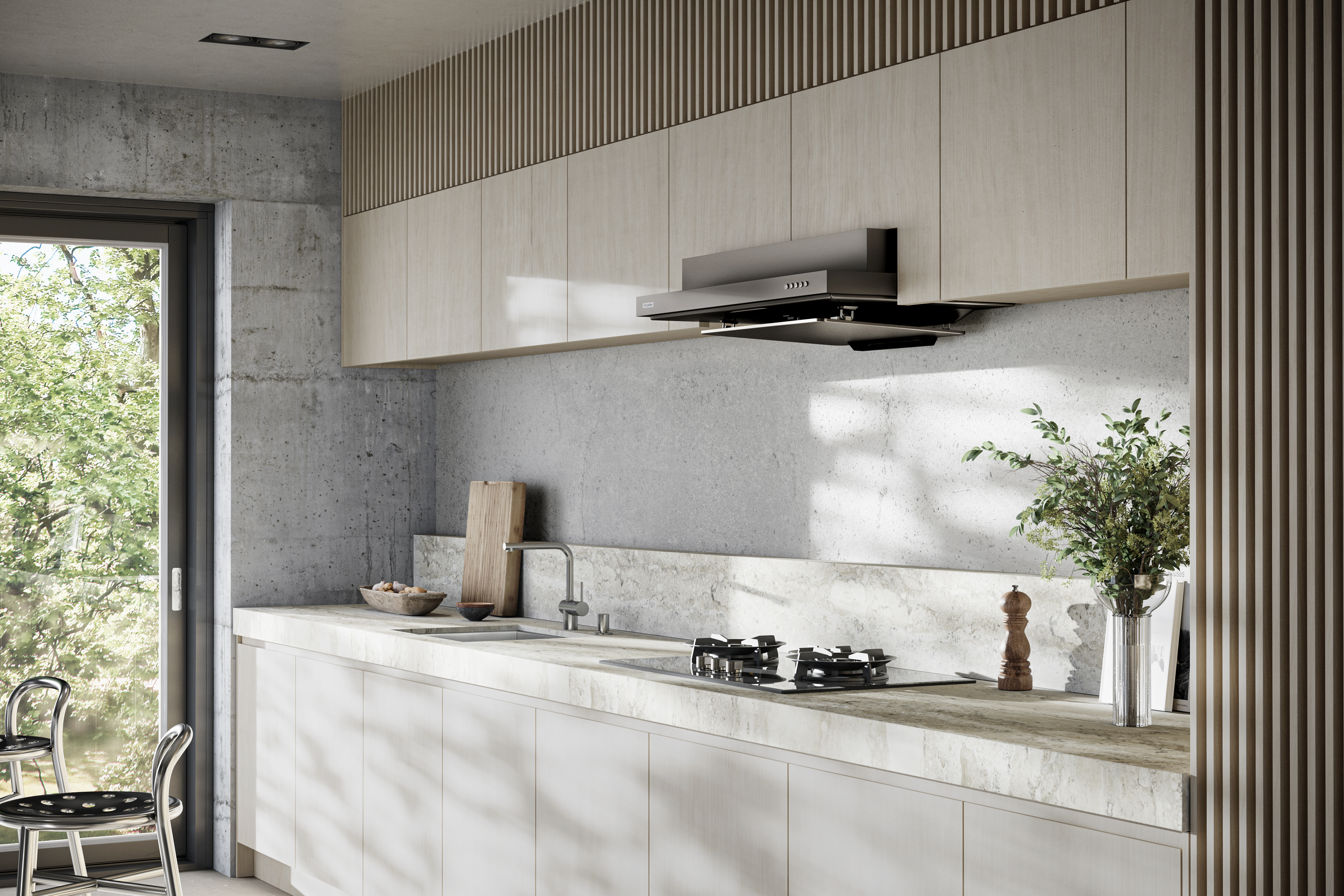

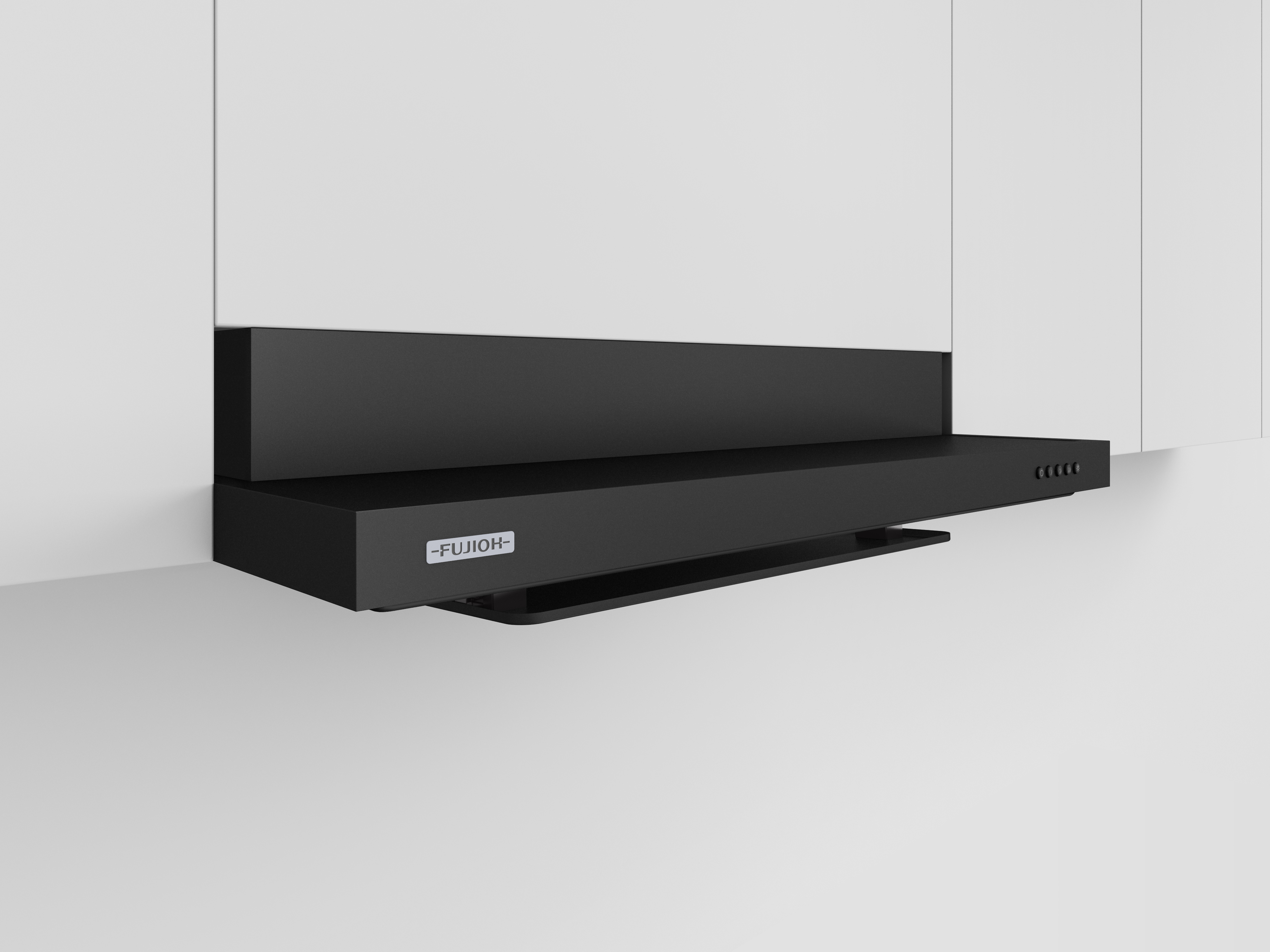

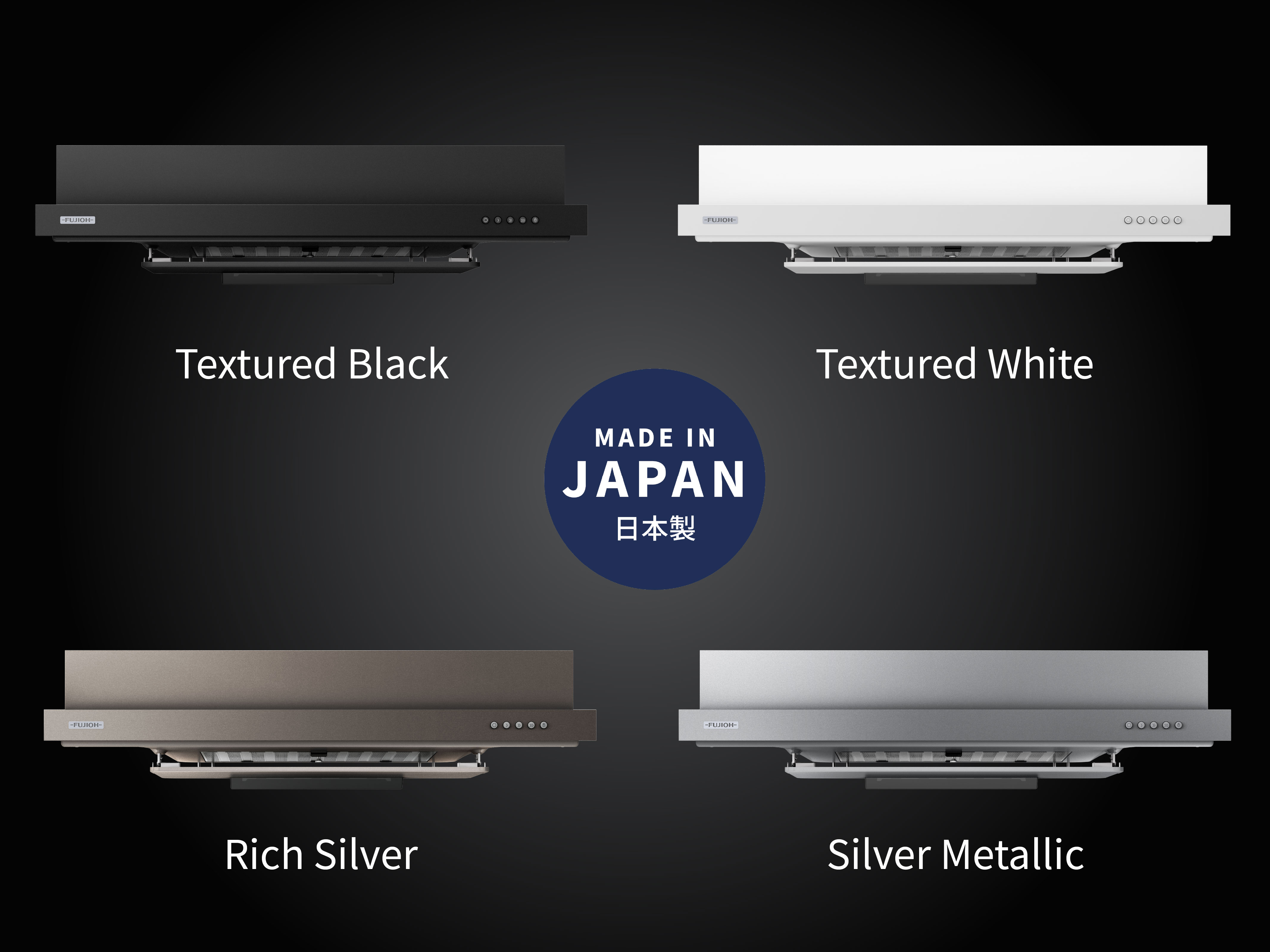

Slim Design with 7 Colour Variations
Super Kirei Coating on Fan

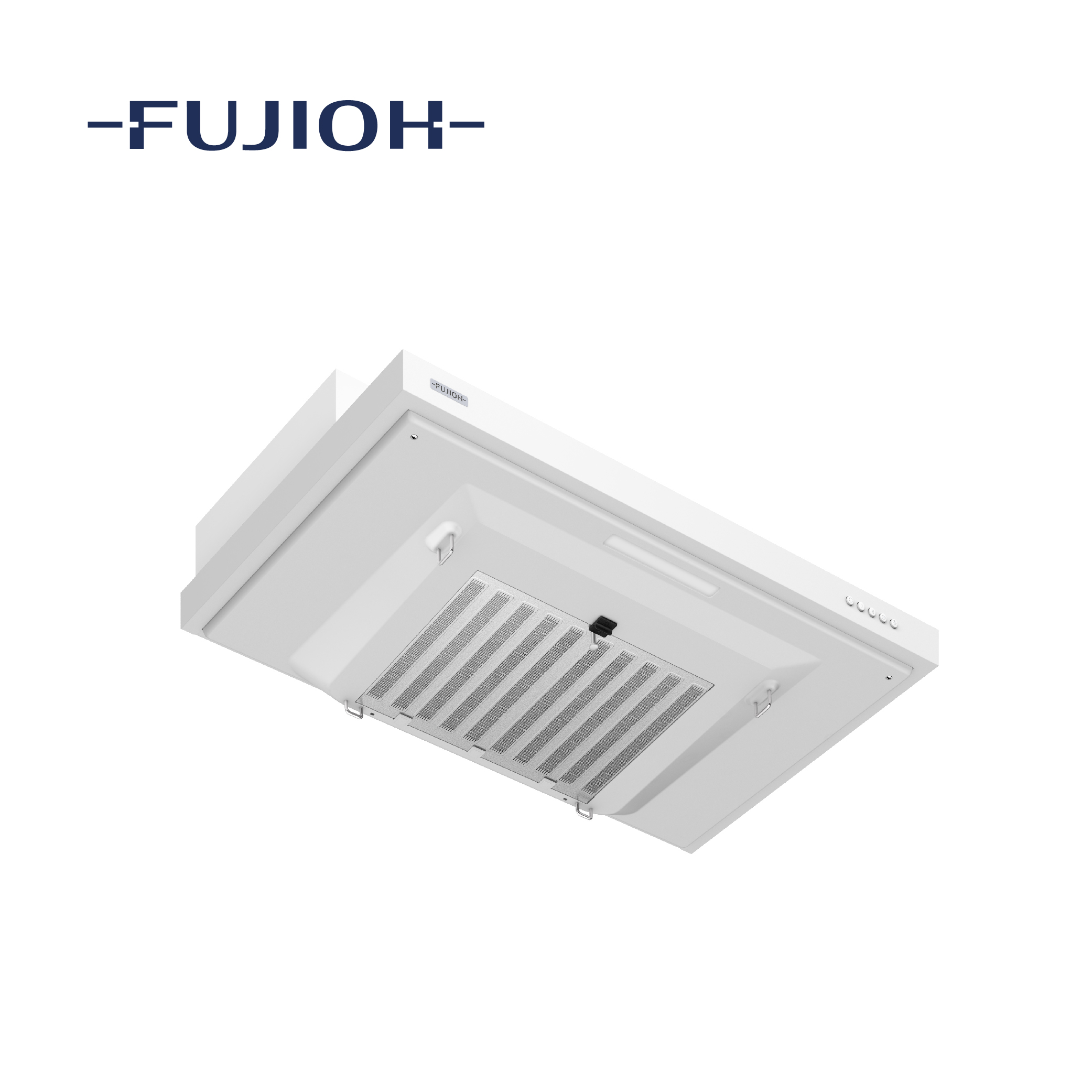

Improved Structural Design with Double Aqua Slit Filters with Hydrophilic Coating

Slim Design with 7 Colour Variations Icon

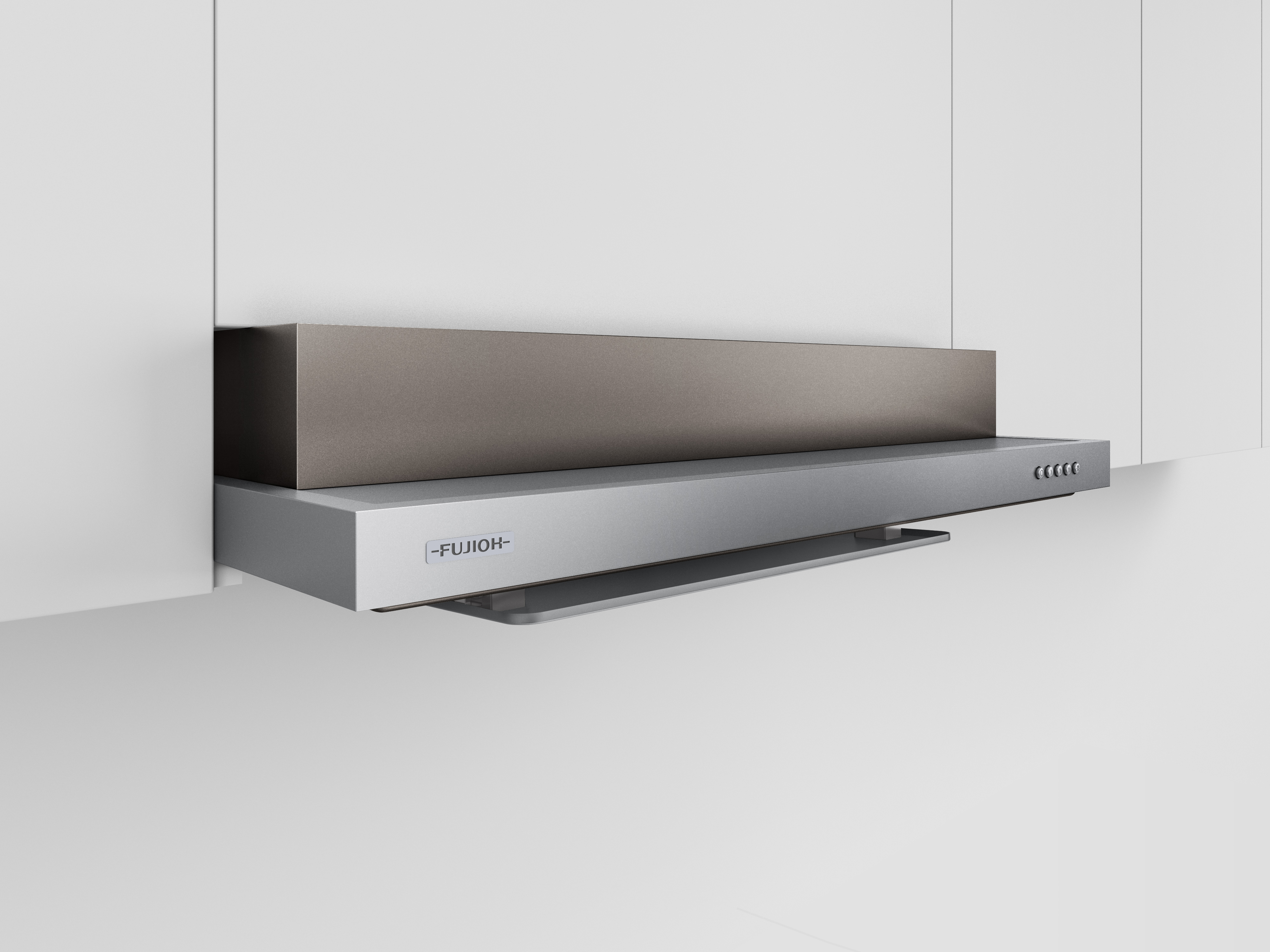

Slim Design at 150mm height
4 choices of solid colour and 3 choices of two tones combination

Super Kirei Fan Icon

Eliminates the accumulation of oil and stain build-up on Super Kirei fan
Repels and induces oil from cooking fumes to accumulate in oil tray
Keeps fan and internal body of cooker hood clean for longer time
Quieter performance with sirocco fan

Improved Structural Design

High oil capturing ratio up to 92% (recycling type)
Seamless oil panel for easy cleaning
Low noise level

EASY MAINTENANCE - Double Aqua Slit Filters (for recycling type) Icon

Hydrophilic coating
Easy to wash with only water
Double layers to capture more oil

EASY MAINTENANCE – AQUA SLIT FILTER (for ventilating type) Icon

Hydrophilic Coating
Easy to wash with only water

EASY MAINTENANCE – OIL REPELLENT PAINT Icon

Oil repellent paint is processed on all surfaces
Easy to wipe and clean

FEATURED VIDEOS

Models	FR-FS2290R	FR-FS2290V
Type	Recycling	Ventilation
Material	(Body) Galvanized Steel	(Body) Galvanized Steel

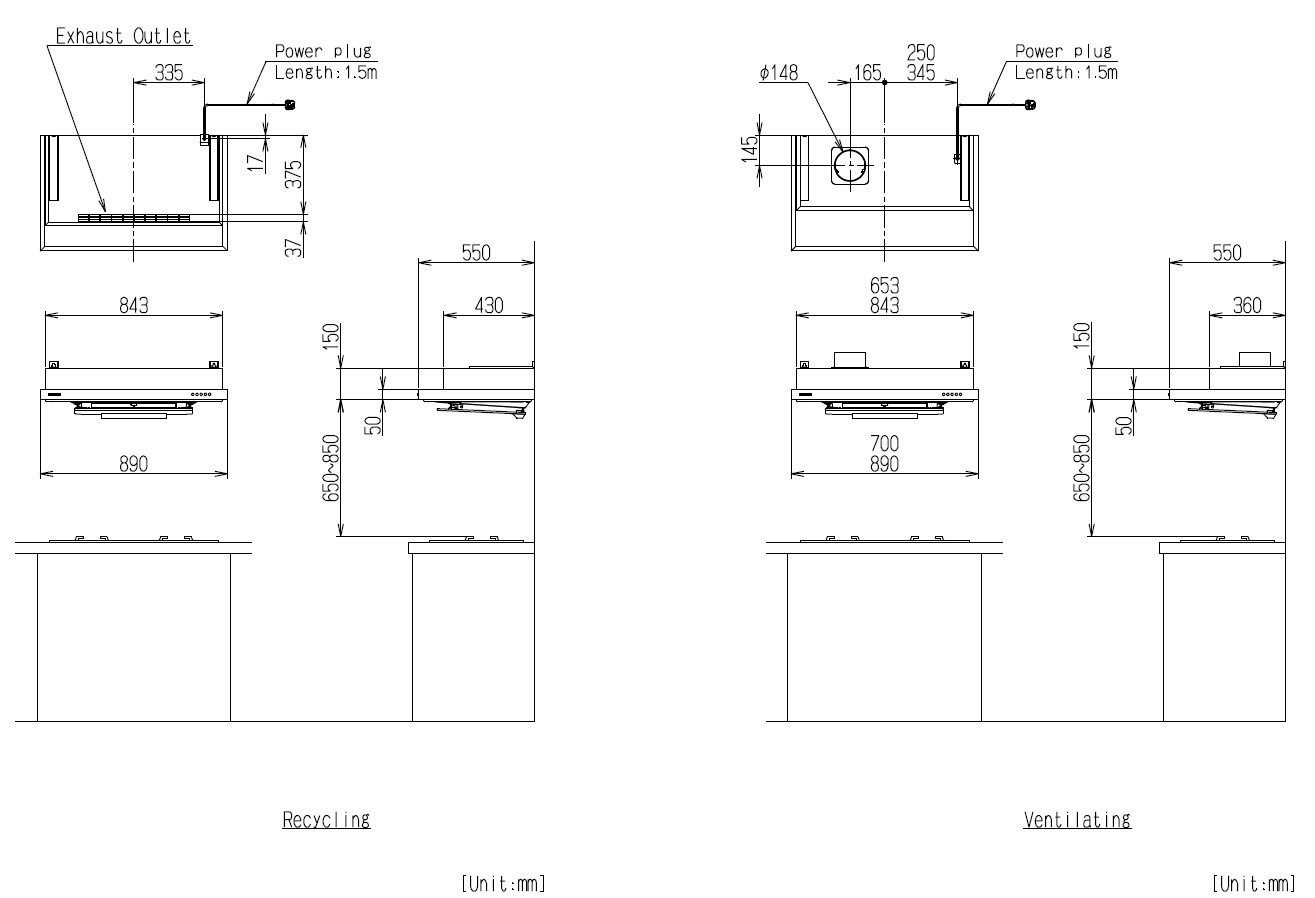

Dimensions [mm]	W890 x D550 x H150	W890 x D550 x H150
Weight [kg]	18	17
Power Consumption [W] (220/230/240V)	90/95/100	105/110/115
Voltage [V/Hz]	220-240/50	220-240/50
Duct Diameter [mm]	-	150
Air Flow [m3/h] (220/230/240V)	395/400/405	545/555/565
Sound Level [dB] (220/230/240V)	53/53/53	50/51/52
Oil Capturing Ratio [%]	92	88
Switch	Mechanical Push Button	Mechanical Push Button
Speed	3 Speeds	3 Speeds
Hood Body	Oil Repellent Paint	Oil Repellent Paint
Fan	Super Kirei Fan	Super Kirei Fan
Rectifier Panel	Oil Repellent Paint	Oil Repellent Paint
Filter	Aqua Slit Filter - Double Hydrophilic Coating	Aqua Slit Filter Hydrophilic Coating
Oil Tray	Plastic	Plastic
Motor	AC Motor	AC Motor
Lighting	LED 3.5W x 1	LED 3.5W x 1
Timer	-	-
