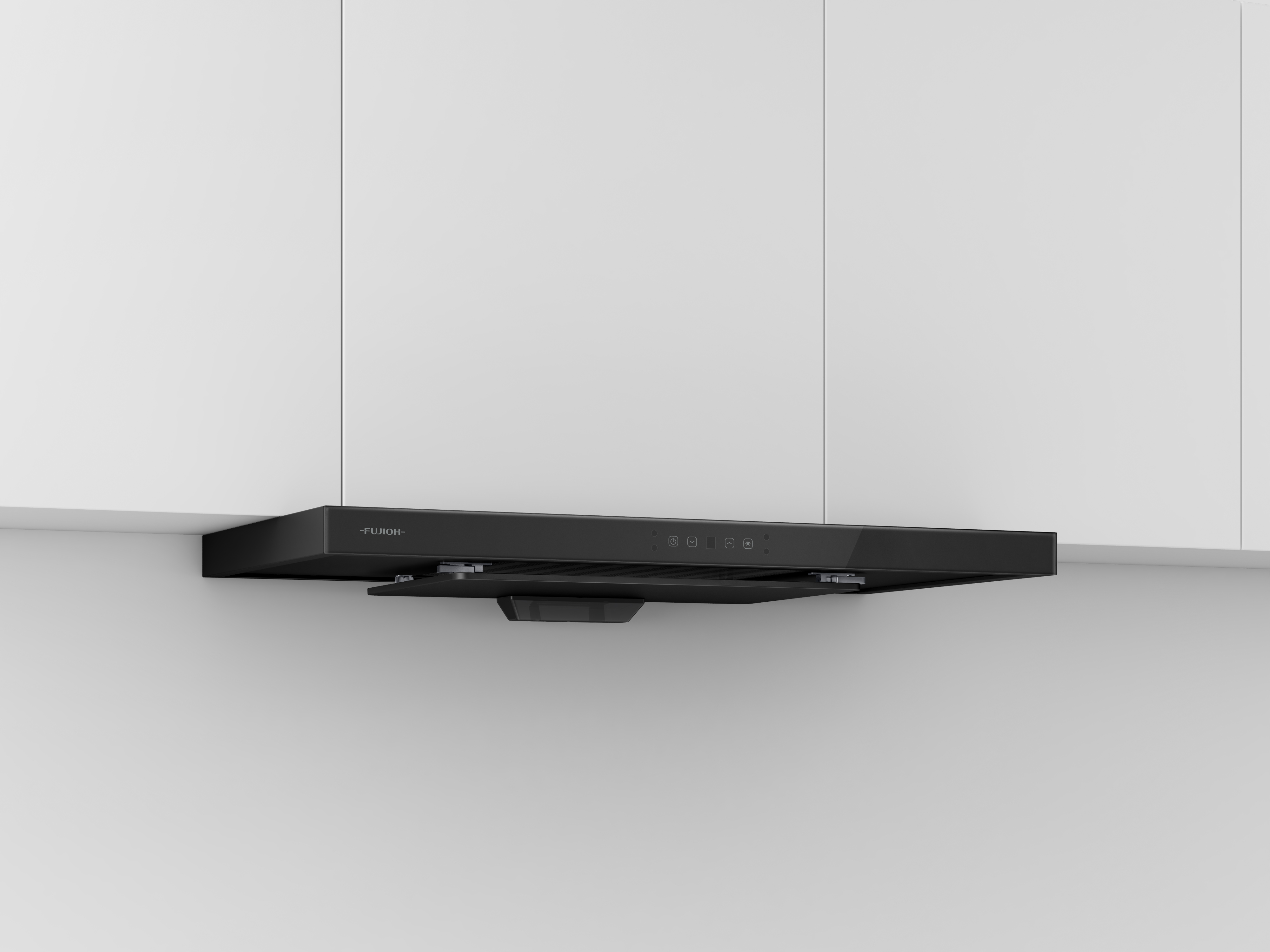

When Functionality meets Style
With its sleek design, this ultra slim hood not only beautifies and creates a posh look for your kitchen, it value adds with its functionality and features to enhance your pre-and-post cooking experience allowing you to be the chef of your dreams.
Coated with a hydrophilic coating, cleaning after cooking up a storm for your friends and families will be made easy. Topping off with a touch switch which promotes quick and smooth operation with your fingertips, you can be assured of the user friendliness in which you will experience.
Country of Origin: Made in China
Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

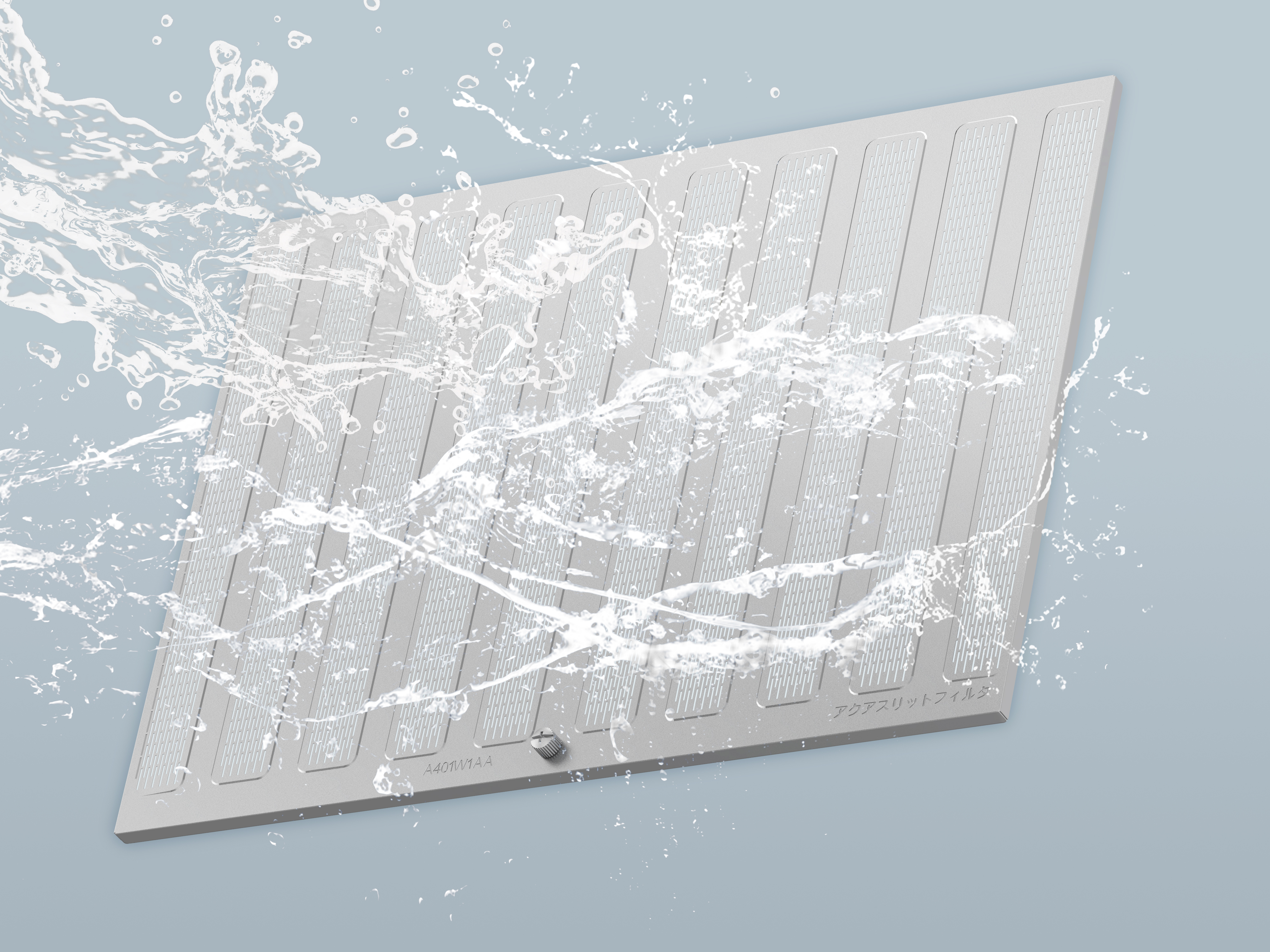

Aqua slit Filter
- Hydrophilic Coating
- The filter can be easily washed with only water
- Over 89% oil capturing ratio (recycling type)
- All stainless parts at exterior are SUS304
- Auto stop after 5 hours of non-stop operation period
Models |
FR-MS2390R |
FR-MS2390V |
|---|---|---|
Type |
Recycling |
Ventilation |
Material |
SUS304 |
SUS304 |

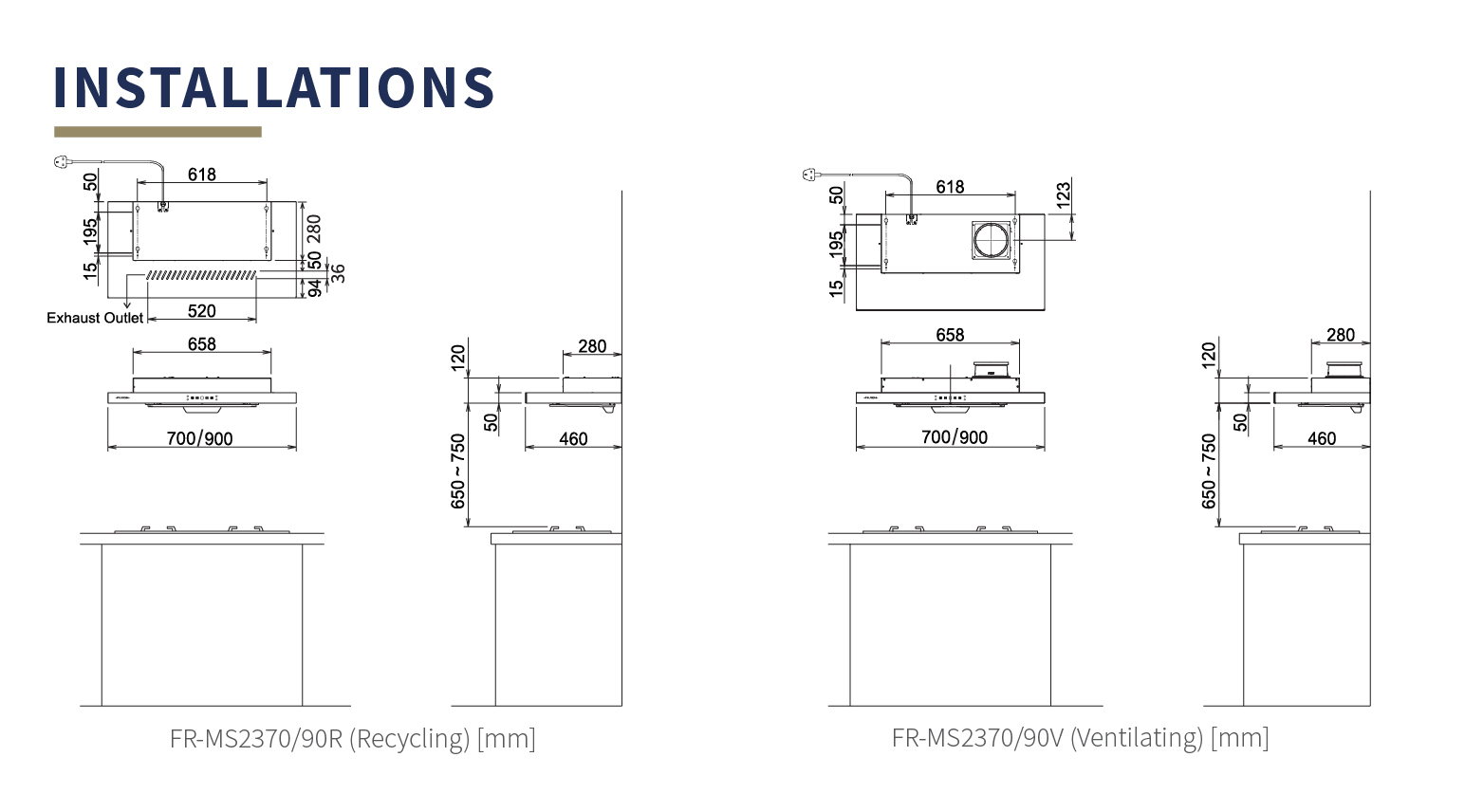

Dimensions [mm] |
W900 x D460 x H120 |
W900 x D460 x H120 |
Weight [kg] |
10.6 |
10.3 |
Power Consumption [W] |
141/148/163 |
218/233/255 |
Voltage [V/Hz] |
220-240/50 |
220-240/50 |
Duct Diameter [mm] |
- |
150 |
Air Flow [m3/h] |
245/260/275 |
400/420/435 |
Sound Level [dB] |
53/55/56 |
57/58/59 |
Oil Capturing Ratio [%] |
89 |
86 |
Switch |
Touch Switch |
Touch Switch |
Speed |
3 Speeds |
3 Speeds |
Hood Body |
SUS304 |
SUS304 |
Fan |
Plastic fan |
Plastic fan |
Rectifier Panel |
SUS304 |
SUS304 |
Filter |
Aqua Slit Filter |
Aqua Slit Filter |
Oil Tray |
Plastic |
Plastic |
Motor |
AC Motor |
AC Motor |
Lighting |
LED 1.5W x 2 |
LED 1.5W x 2 |
Timer |
3/6/9 mins |
3/6/9 mins |
- Oil Tray
- Aqua Slit Filter
- Rectifier Panel
- Mounting Brackets
