Instant Water Heater with Hand Shower (1 Spray Mode)
FZ-WH5035N1B
Icon Include
90° Stop Valve with Built-in Filter
Icon Include
Stepless Power Control
Icon Include
Fire Retardant Heater Tank
Icon Include
Auto Flow Sensor Switch
Icon Include
Double Function Thermostat
Icon Include
Anti-Leak Water Tank
Icon Include
IP25 Splash Proof Protection
Icon Include
Insulated PVC Hose

A hassle-free water heater

Manufactured to enable personal control of the shower temperature by a turn of the control while allowing you to beat the unbearable climate swings.

With the extensive safety features, you can now enjoy your shower with a peace of mind.

Country of Origin: Made in Malaysia

  • Hand Shower Type
  • Stepless Power Control
  • Anti-leak Water Tank
90° Stop Valve With Built-In Filter Icon

Enjoy higher water flow rate and cleaner water

Stepless Power Control Icon

Shower at your ideal shower temperature

FIRE RETARDANT HEATER TANK Icon

Peace of mind with fire retardant VO material that complies to UL-94 grade

AUTO FLOW SENSOR SWITCH Icon

Avoid dry burn by shutting of heater when water flow is too low

DOUBLE FUNCTION THERMOSTAT Icon

Auto reset thermostat when water temperature exceeds safe limit

ANTI-LEAK WATER TANK Icon

Avoid scalding by withstanding water with high pressure

IP25 SPLASH PROOF PROTECTION Icon

Protect against water and dust

INSULATED PVC HOSE Icon

Extra safety with insulated PVC hose and non-conductive stop valve

Equipment

Water Connection [mm/inch BSP]

15 or 1/2

Accessories

Shower Holder Bracket

Handshower Spray Mode

1 Type

Performance

Min Water Flow Rate [Liter/min]

2

Max Water Pressure [kPa]

380

Min Water Pressure [kPa]

20

Power, Voltage

Voltage [V/Hz]

220/50

Available Power [kW]

3.5

Accreditation

Safety Standard

IEC

ROSH

ROSH COMPLIANT

ISO Certified Manufacturer

ISO 9001:2015

Dimensions and Weight

Dimensions of Heater [mm]

W220 x H390 x D89

Net Weight (Heater only) [kg]

1.7

Gross Weight (Heater + Shower Set only) [kg]

2.6

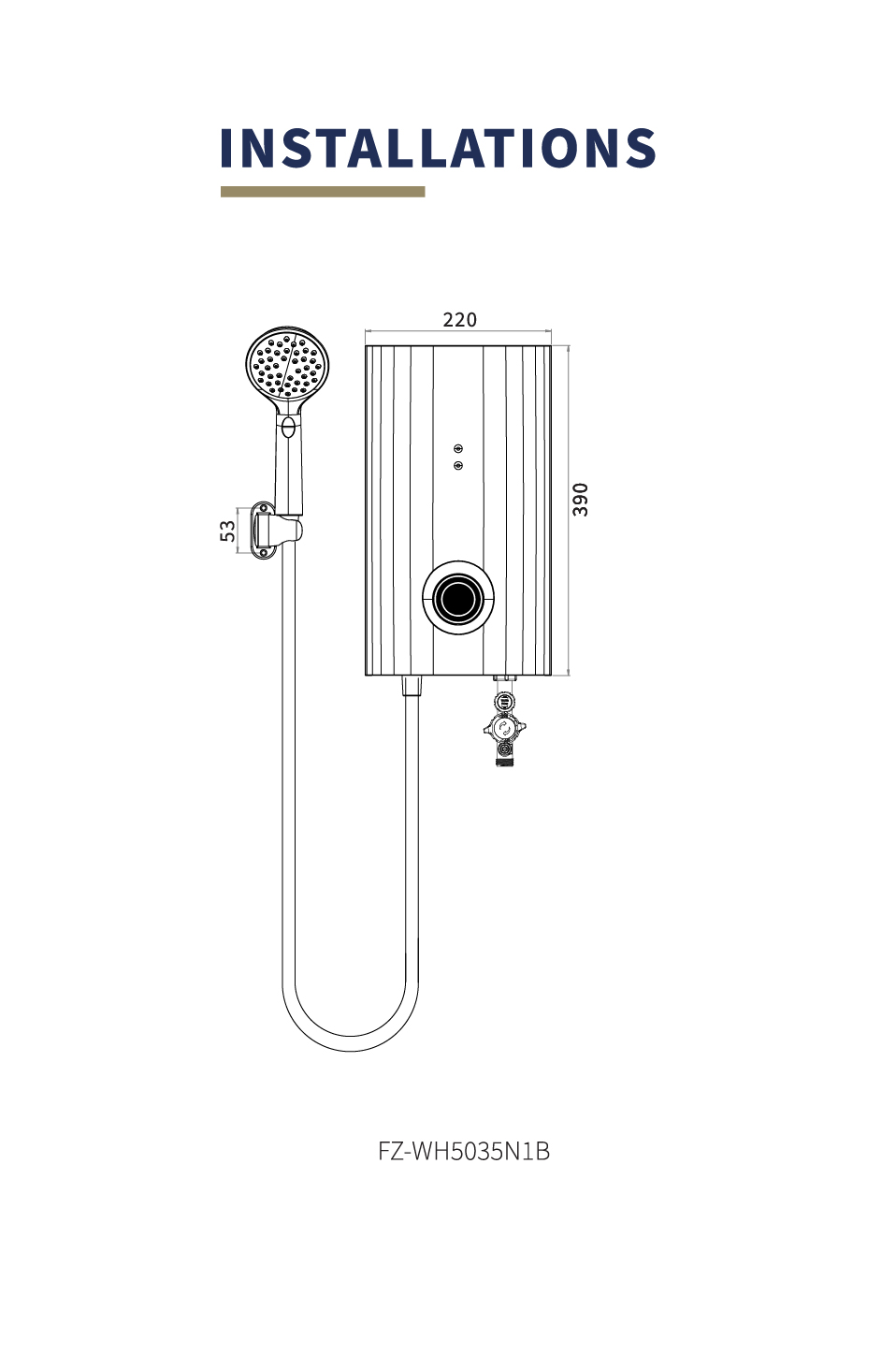

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing

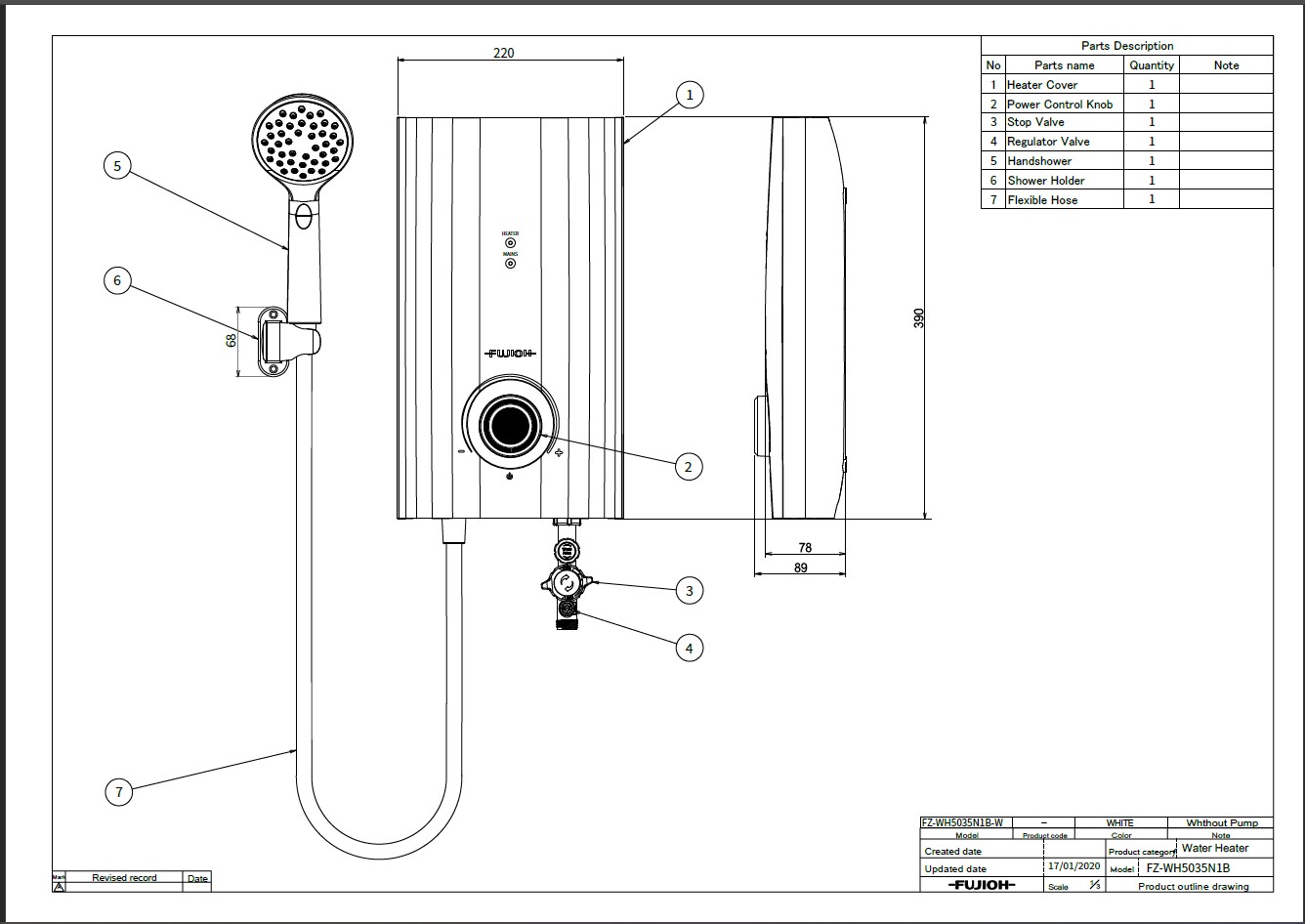

PRODUCT DRAWING

Please download Product Drawing here.

Drawing

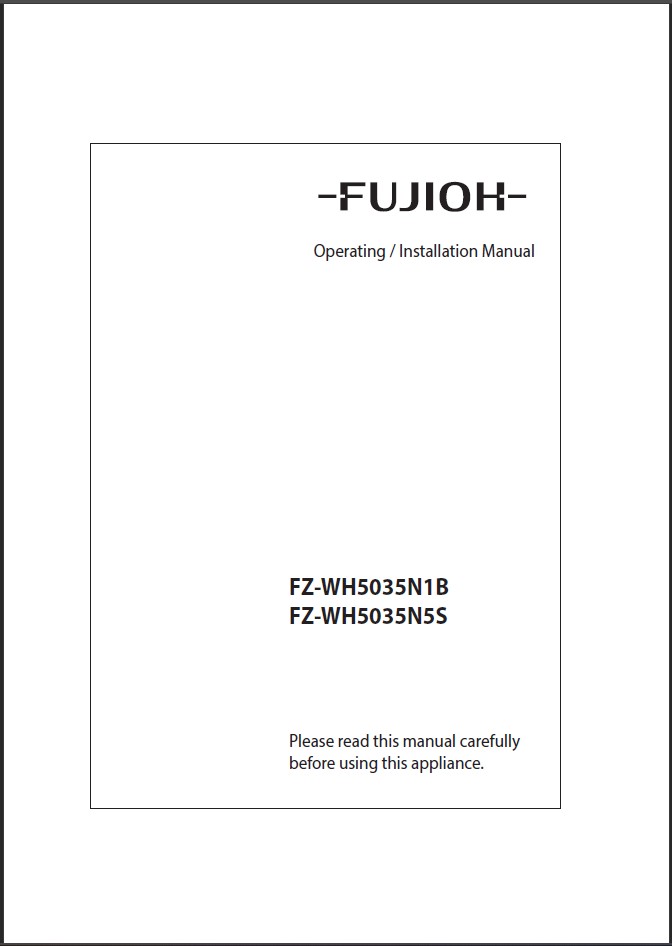

PRODUCT MANUAL

Please download Product Manual here.

Downloads

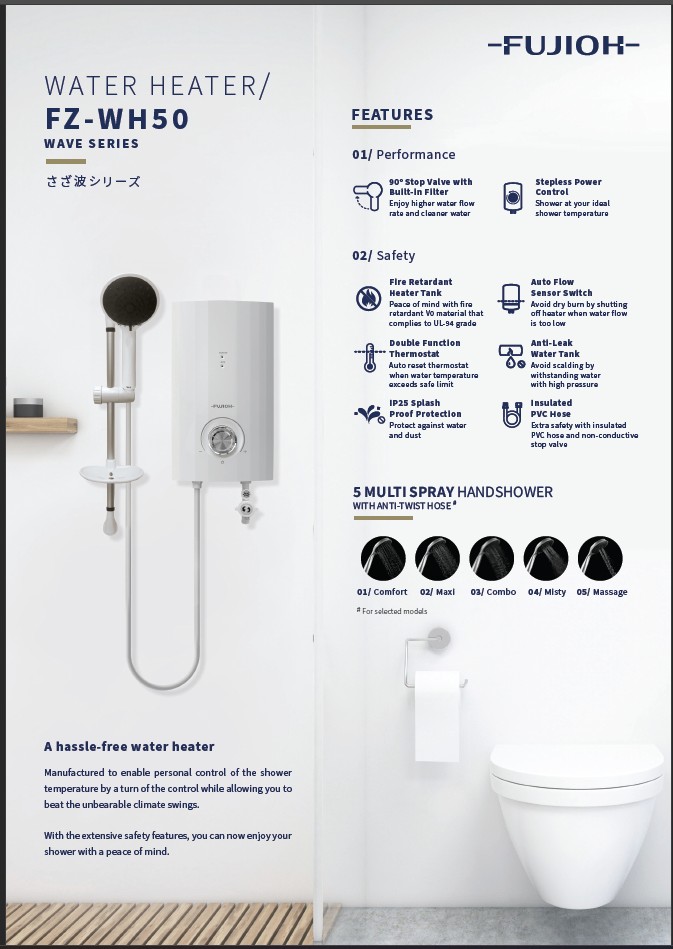

PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
Accessories
  • Hand Shower
  • Flexible Hose
  • Shower Holder Bracket
CHECK FOR ACCESSORIES AVAILABILITY
