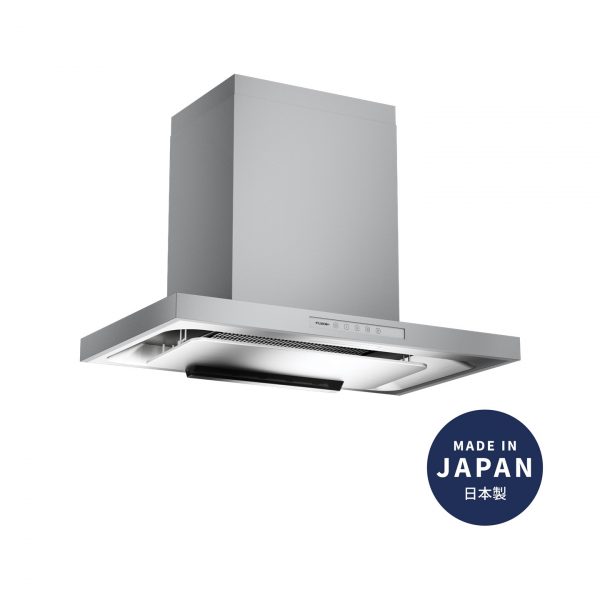

900mm Chimney Cooker Hood
FR-ST2190 V
Icon Include
Super Kirei Fan
Icon Include
Oil Repellant Fan Guard
Icon Include
Oil Repellent Exterior Hood
Icon Include
Rectifier Panel
Icon Include
Boost
Icon Include
Texture Coating
Icon Include
Auto Fan Clean
Icon Include

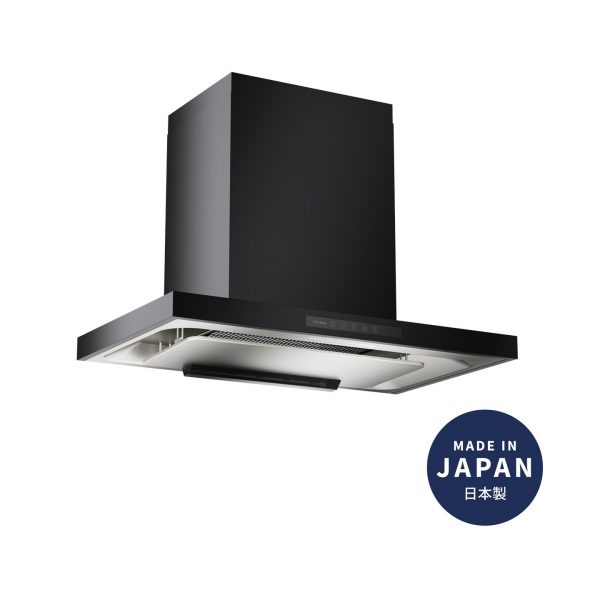

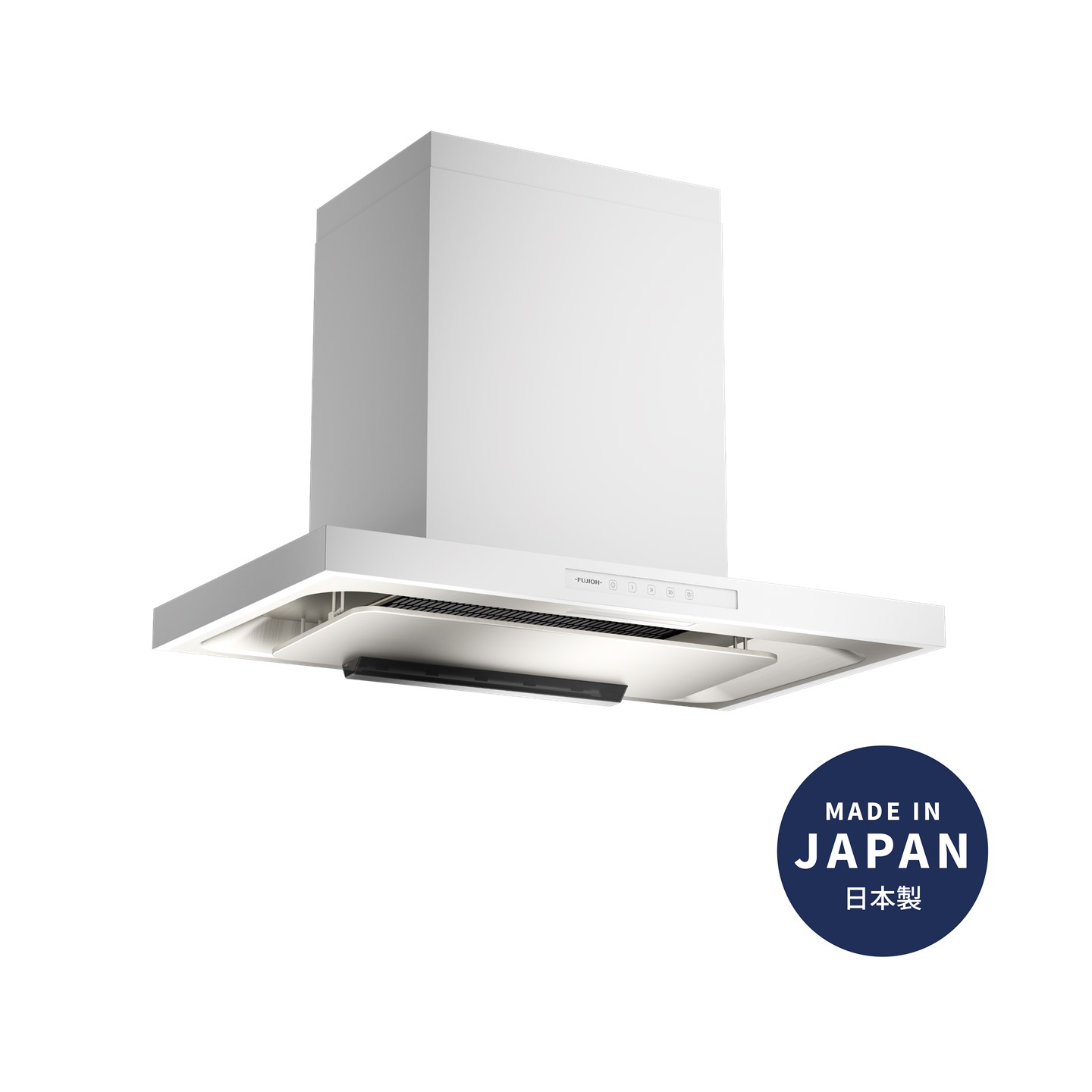

Color Variation

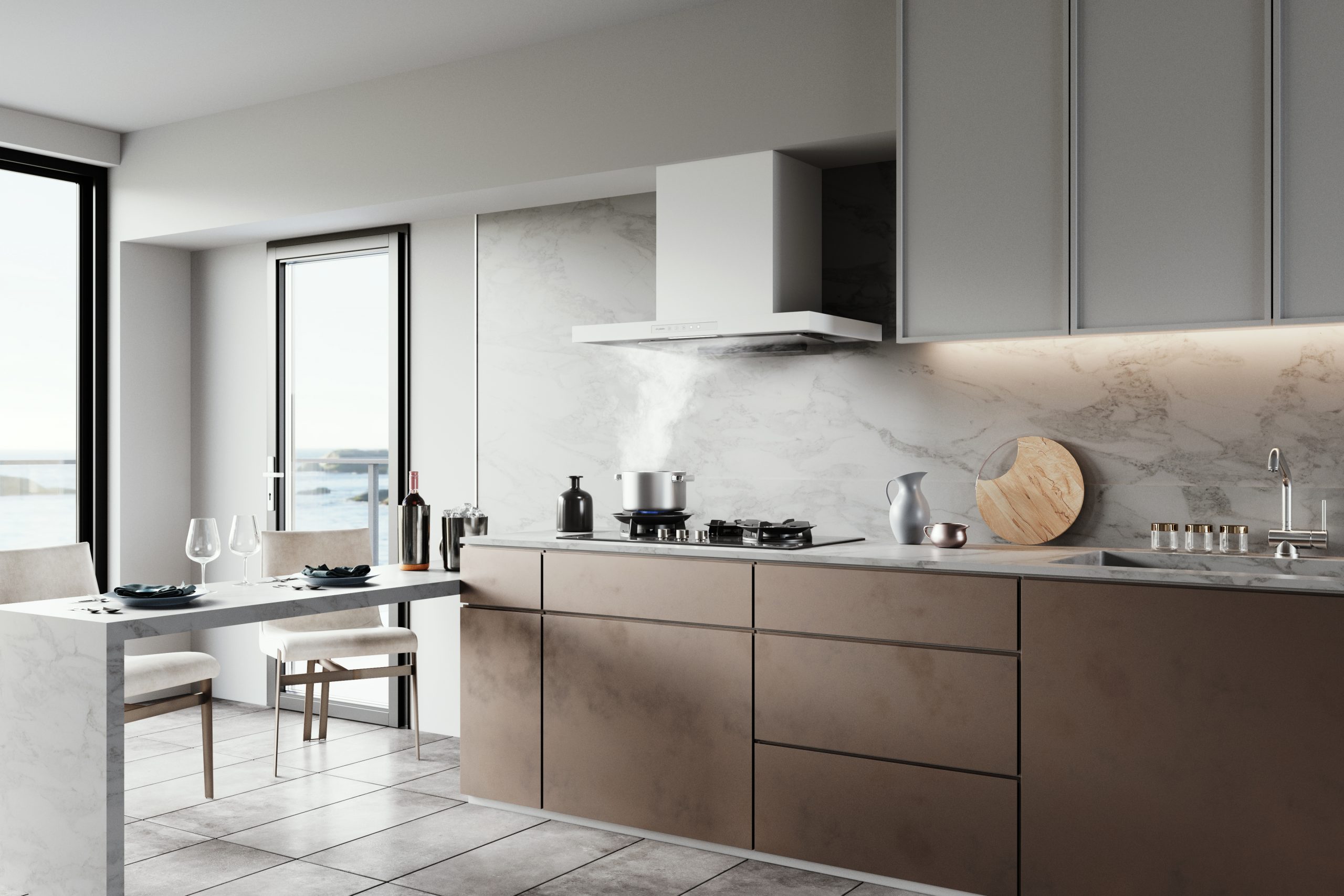

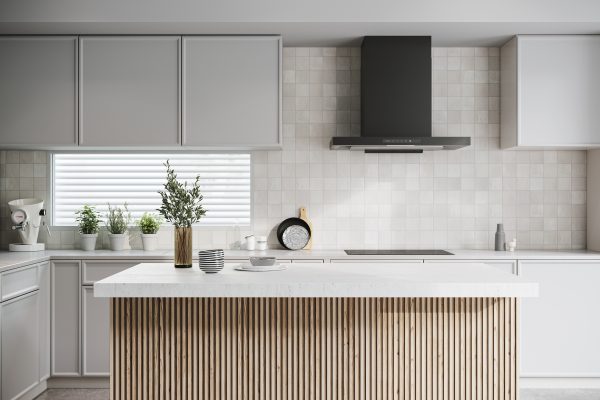

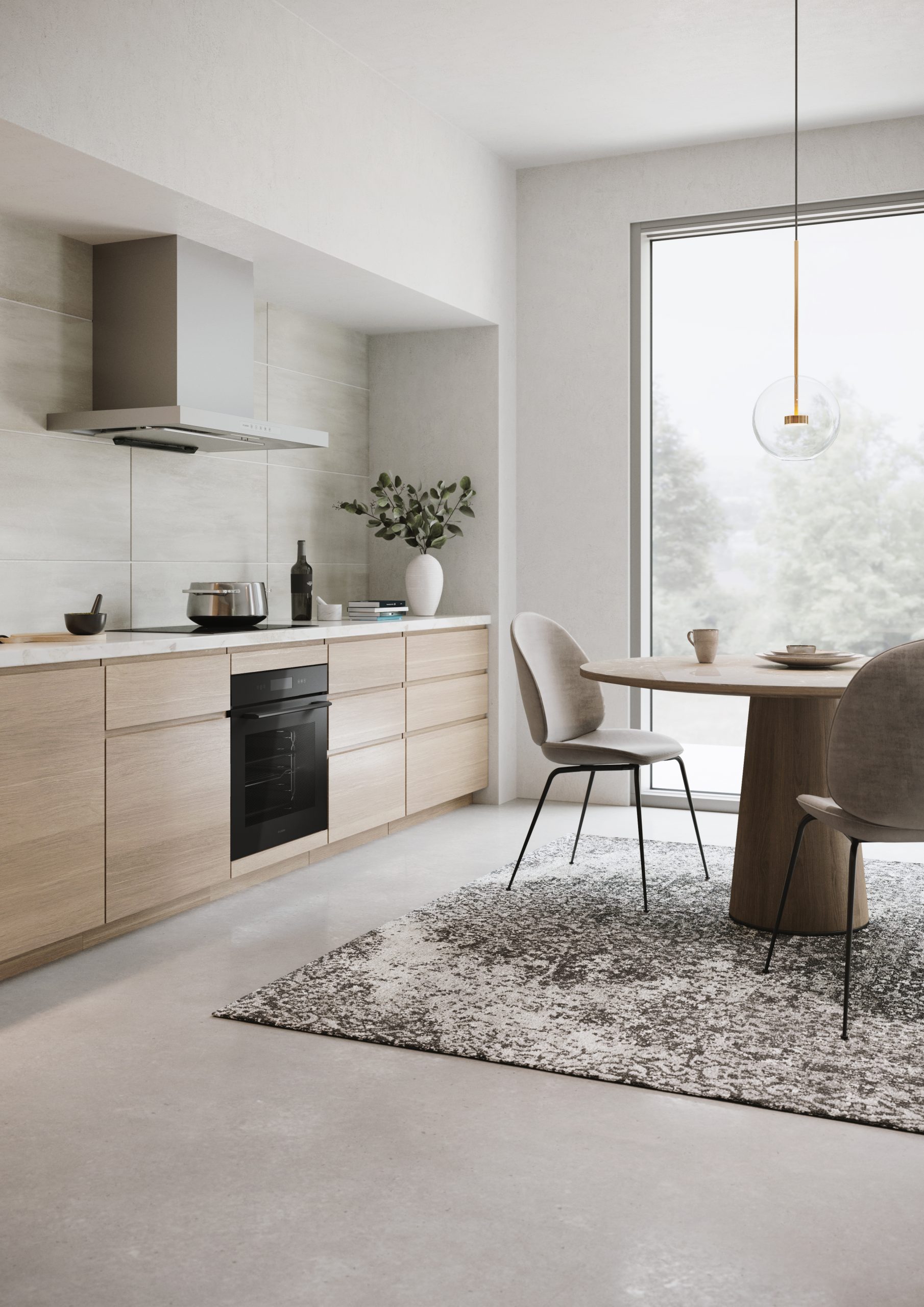

Create a fusion of comfort and good look kitchen

Introducing FR-ST2190 cooker hood with excellent ventilation power. Works perfectly for open kitchen and cooking lovers!

This fully made-in-Japan FR-ST2190 cooker hood is excellent at removing fumes from the kitchen area and it comes in 3 different colours that aesthetically go well with any kitchen interiors.

This powerful hood is all about optimal functionality as it comes with new fine features that will elevate your cooking experience! Equipped with excellent technology elements such as Auto Fan Clean and Super Kirei Coating, this cooker hood aims for easy maintenance and a desirable cooking atmosphere!

Country of Origin: Made in Japan

Warranty Coverage:
4-years general warranty.
Warranty Terms and Conditions apply.

Promotions Applicable:
  • Super Kirei Fan
  • Auto Fan Cleaning
  • Oil Repellent Paint on exterior hood surface
Clear
Feature
High Air Flow Icon Icon

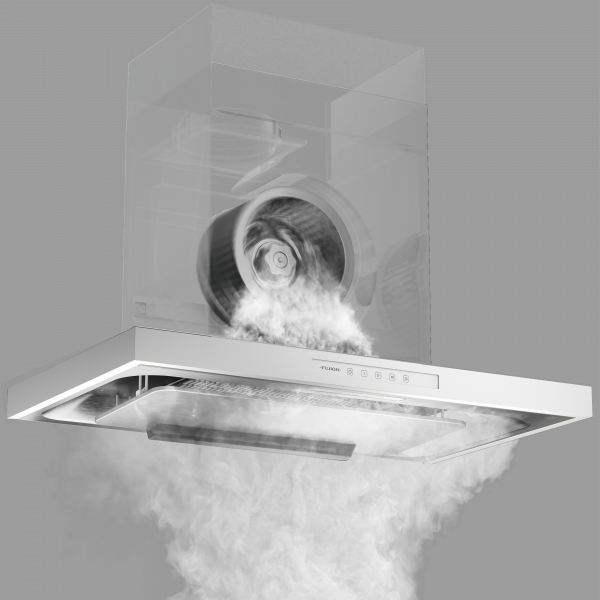

Enhanced high airflow and fume suction with new fan blower. 3 speed levels and boost mode.

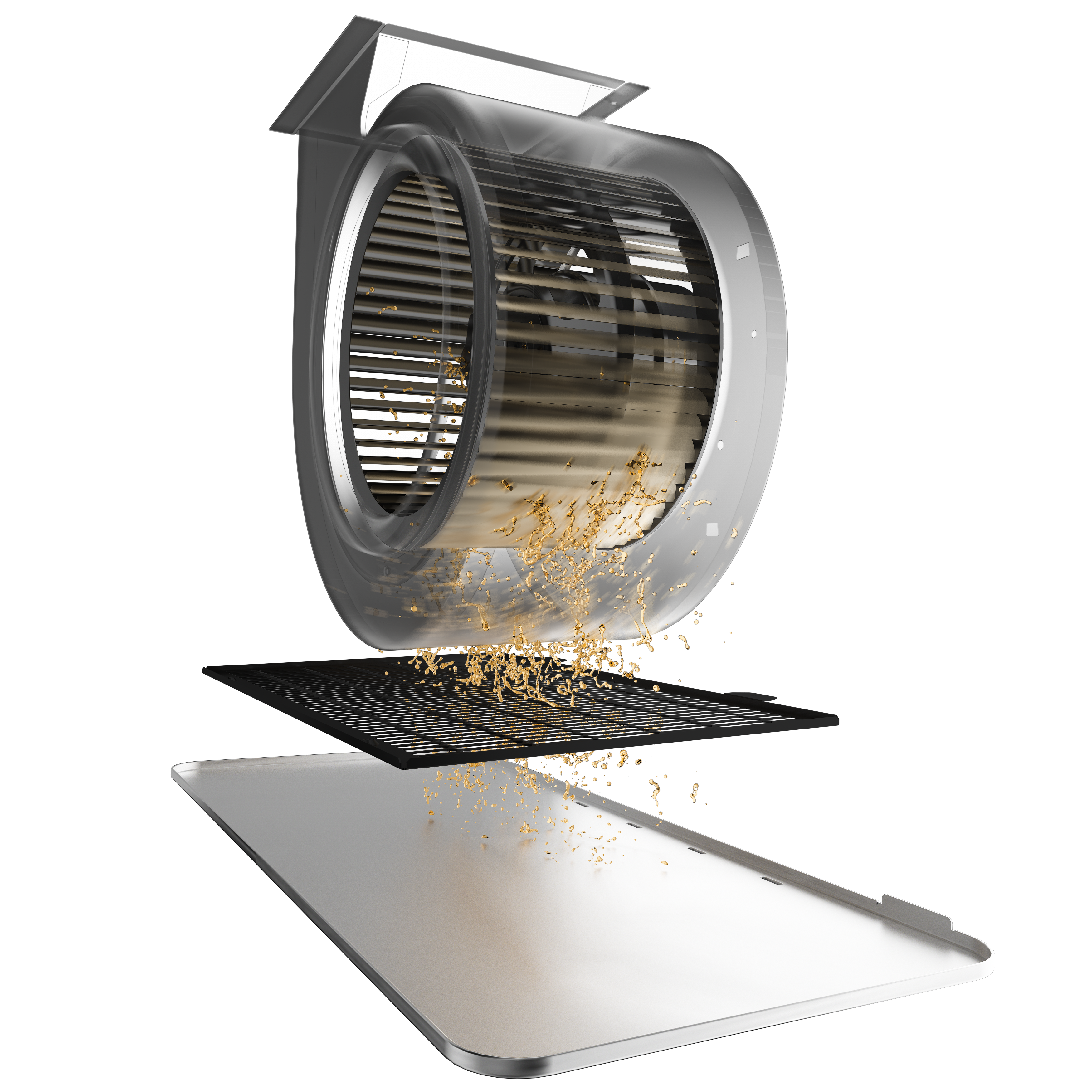

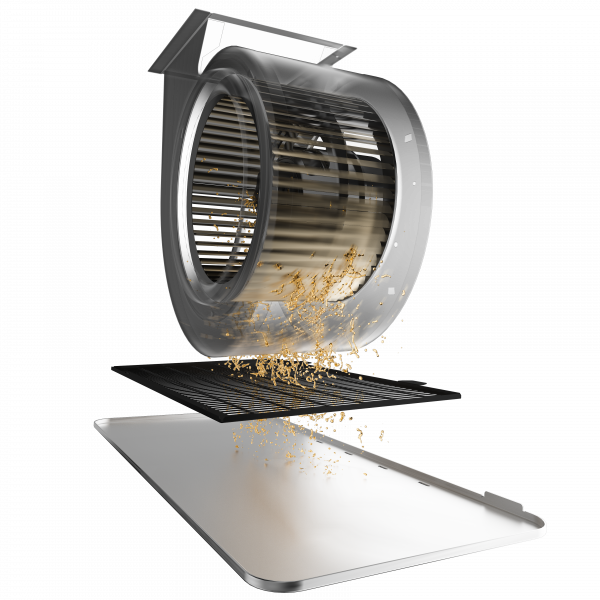

Auto Fan Clean Icon

Fan automatically switches to boost operation on the last 5 seconds of timer function and blow off oil stains by centrifugal force.

Feature
Feature
Fan Durability & Cleanliness

Super Kirei Coating eliminates the accumulation of oil and stain build-up on the fan surface, maintaining the fan clean for longer time.

Easy Cleaning Icon Icon

Fan guard and external body coated with Oil Repellent Coating can be easily wiped off.

Feature

Models

FR-ST2190V

Type

Ventilating

Material

(Body) Galvanized Steel

Dimensions [mm]

W895 x D525 x H650~1000

Weight [kg]

31

Power Consumption [W]

(220/240V)

High 260/280; Boost 295/350

Voltage [V/Hz]

220-240/50

Duct Diameter [mm]

180

Sound Level [dB]

(220/240V)

High 52/53 ; Boost 55/56

Oil Capturing Ratio [%]

84

Switch

Touch Switch

Speed

4 Speeds (Low, Medium, High & Boost)

Hood Body

Oil Repellent Coating

Fan

Super Kirei Coating

Rectifier Panel

SUS304 Stainless Steel

Fan Guard

Oil Repellent Coating

Motor

AC Motor

Lighting

LED 3.5W x 1

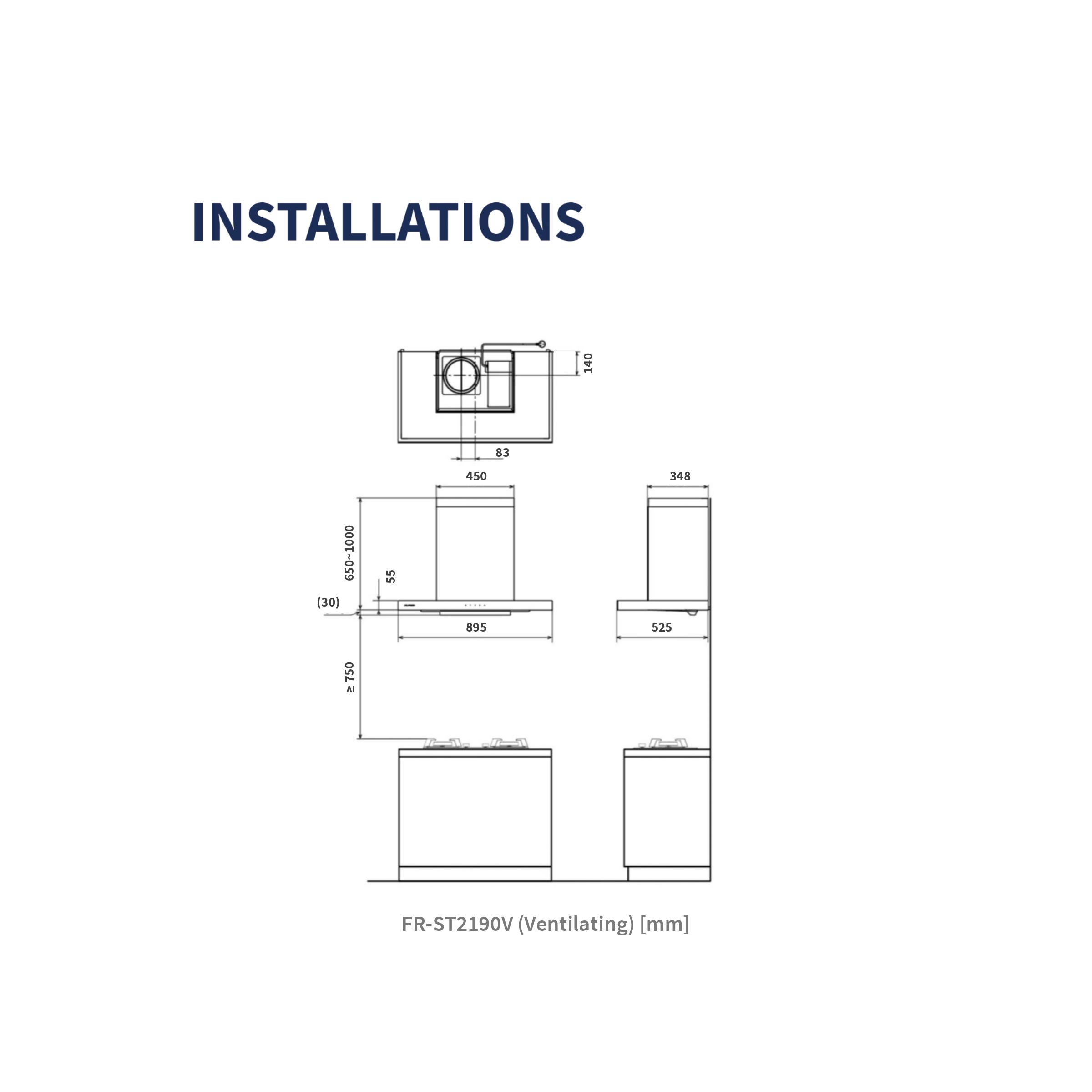

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing

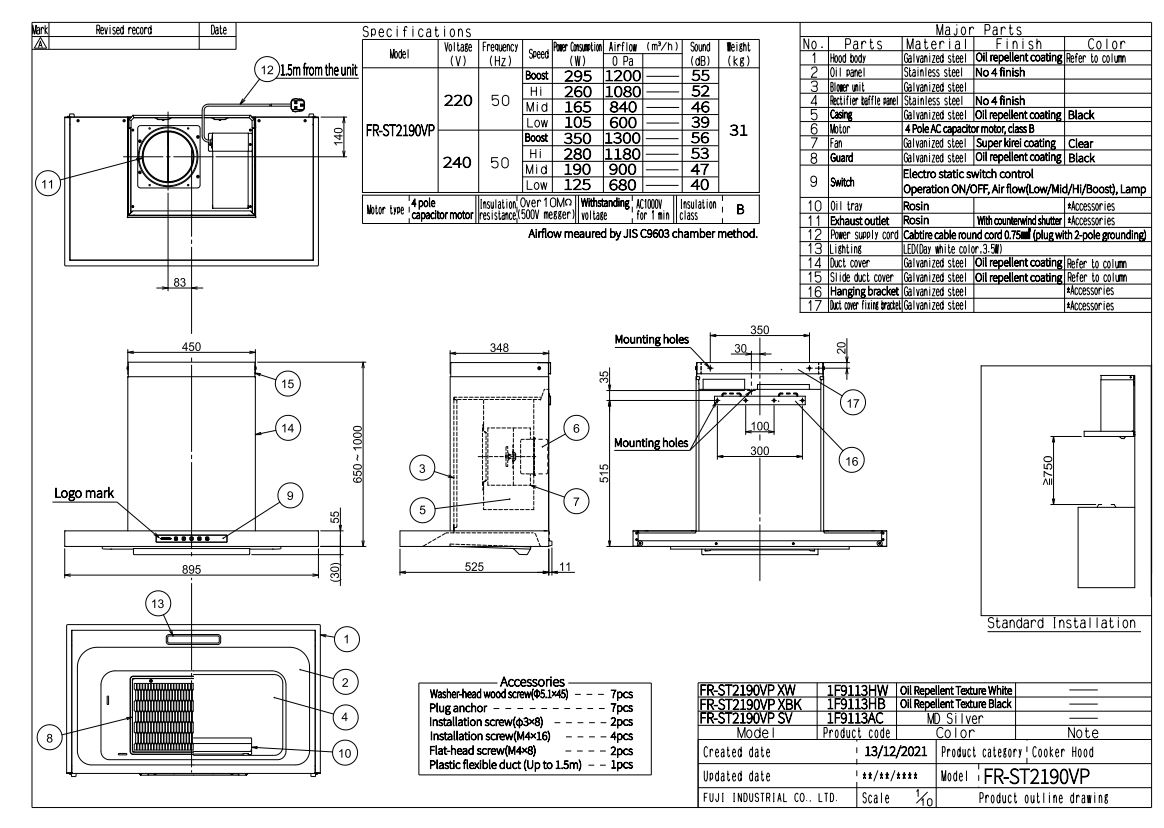

PRODUCT DRAWING

Please download Product Drawing here.

Drawing
PRODUCT MANUAL

Please download Product Manual here.

Downloads
PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
Accessories
  • Super Kirei Fan
  • Oil Repellant Fan Guard
  • Rectifier Panel
  • Oil Tray
