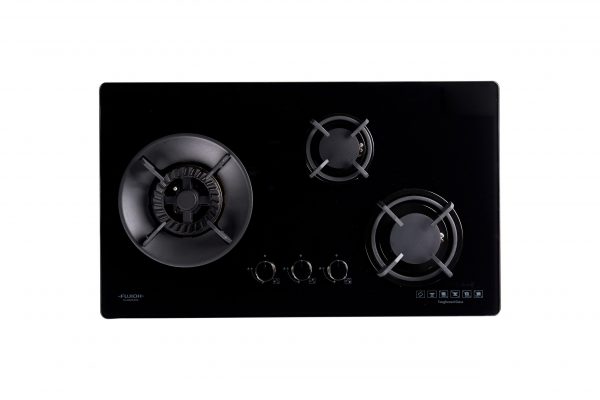

Gas Hob with 3 Different Burner Size

FH-GS5035 SVGL
Icon Include
Flame Failure Safety Device
Icon Include
Flame Control
Icon Include
Heat Deflector
Icon Include
Aluminium Alloy
Icon Include
Brass Burner Cap
Icon Include
Battery Ignition
Icon Include
Toughened Glass
Icon Include
Matt Enamelled Pan Support
Icon Include
Mini Pan Support
Icon Include
Push And Turn Knob

Ignite a new passion for cooking

Make a statement with a gas hob that exudes the ultimate in style. Finished in sexy stainless steel or sleek toughened black glass, they both look good in your dream kitchen design.

Designed for cooking your way, simply turn the equally elegant knobs to ignite, and precisely control the heat to the pan for perfect meals every time. You can’t help but bring the passion back into cooking with these irresistible beauties.

Surface Type: Toughened Black Glass

Country of Origin: Made in China

Warranty Coverage:

1-year warranty for parts
Lifetime warranty against toughened glass shattered
Warranty Terms and Conditions apply

Promotions Applicable:
  • 3 Burners (1x Ultra-Rapid Burners + 1 Semi-rapid Burner + 1 Auxiliary Burner)
  • Heat Deflector
  • Rust-resistant Aluminium Venturi
Feature
01/ Heat Deflector

Deflect and reduce the thermal heat on the top plate and knobs

02/ Aluminium Venturi

Rust-resistant aluminium alloy

Feature
Feature
03/ Knobs

Elegant and glossy design

No. of Burners

3

Surface Type

Toughened Black Glass

Dimensions

W780 x D460 x H165

Ignition Type

Battery Operated

(Size D 1.5V)

HEATING LOAD L.P. GAS [kW]

Left

5.0

Centre

1.4

Right

1.8

All Burners On

8.2

HEATING LOAD TOWN GAS [kW]

Left

4.0

Centre

1.4

Right

1.8

All Burners On

7.2

CUT-OUT DIMENSIONS & REPLACEMENT SIZE [mm]

Cut-out Dimensions

W650 x D350

Front Allowance & Rear Allowance

FA≥64 x RA≥72

Replacement Size

W(650-720) x D(350-410) x R60

Base Height

100

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing

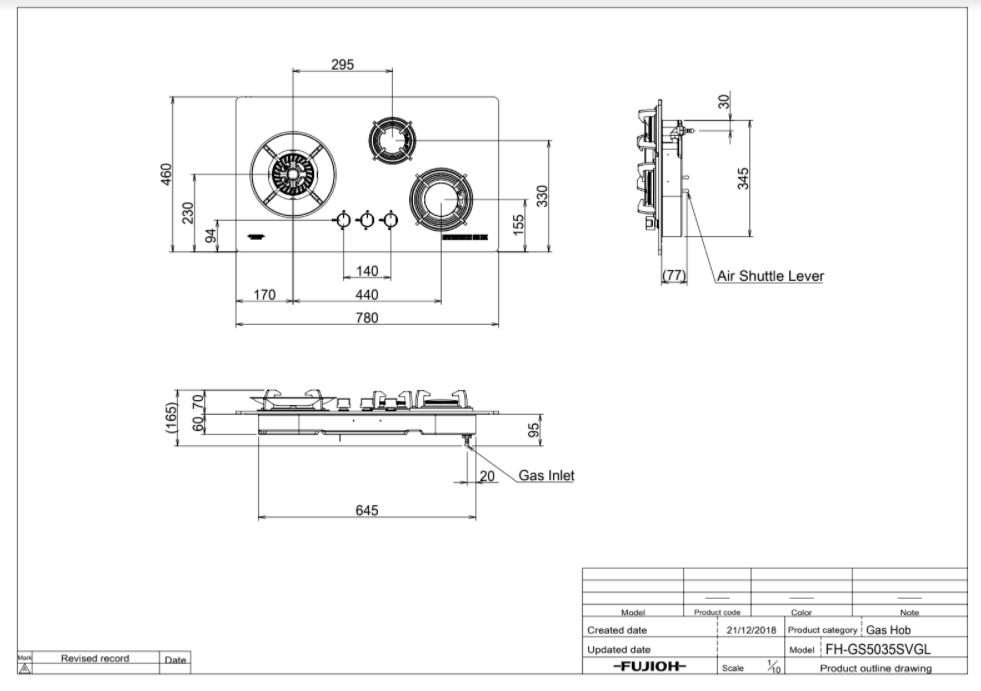

PRODUCT DRAWING

Please download Product Drawing here.

Drawing
PRODUCT MANUAL

Please download Product Manual here.

Downloads
PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
Accessories
  • Heat Deflector for Ultra-Rapid Flame Burner
  • Trivet for Ultra Rapid Burner
  • Trivet for Semi Rapid Burner
  • Trivet for Auxiliary Burner
  • Ultra Rapid Outer Ring
  • Ultra Rapid Inner cap
  • Ultra Rapid Burner Cup
  • Semi Rapid Burner Outer Ring
  • Semi Rapid Burner Inner cap
  • Semi Rapid Burner Cup
  • Auxiliary Burner Ring
  • Auxiliary Burner Cup
CHECK FOR ACCESSORIES AVAILABILITY
