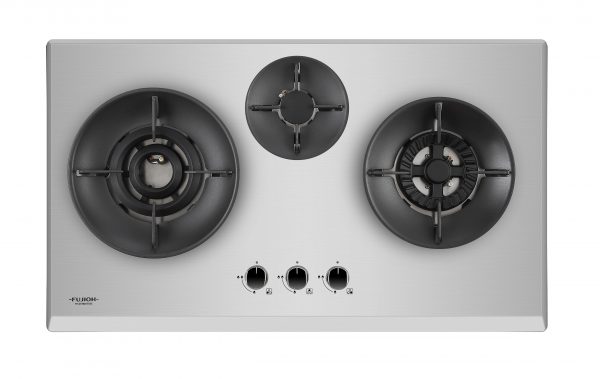

3 Burners Gas Hob with 1 Double Inner Flame Burner

FH-GS7030 SVSS
Icon Include
Double Inner Flame
Icon Include
Flame Failure Safety Device
Icon Include
Sectional Flame Control
Icon Include
Heat Deflector
Icon Include
Aluminium Alloy
Icon Include
Brass Burner Cap
Icon Include
Battery Ignition
Icon Include
Matt Enamelled Pan Support
Icon Include
Push and Turn Knob

Double Happiness!

Bid farewell to uneven cooking. The advanced feature of double inner flame promotes improvement in the even heat distribution and speeds up your cooking time.

The best of both words are in your hands! The seamless design integrates both the double inner flame burner as well as the external flame burner all in one, allowing you to have preference of cooking methods in one single gas hob. Your master chef dreams of yesterday becomes a reality with FH-GS70 today!

Surface Type: Stainless Steel

Country of Origin: Made in China

Warranty Coverage:

1-year warranty for parts
Warranty Terms and Conditions apply

Promotions Applicable:
  • 3 Burners (2 Ultra-rapid Burners + 1 Auxiliary Burner)
  • 1 Double Inner Flame Burner (left burner)
  • Sectional Flame Control
Feature
01/ Double Inner Flame Icon

More even heat distribution and faster cooking time

02/ Aluminium Venturi Icon

Rust-resistant aluminium alloy

Feature
Feature
03/ Heat Deflector Icon

Deflect and reduce thermal heat on the top plate and knobs

No. of Burners

3

Surface Type

Stainless Steel (SUS304)

Dimensions

W860 x D500 x H171

Ignition Type

Battery Operated

(Size D 1.5V)

HEATING LOAD L.P. GAS [kW]

Left

4.5

Centre

1.1

Right

5.0

All Burners On

10.6

HEATING LOAD TOWN GAS [kW]

Left

3.9

Centre

1.1

Right

4.1

All Burners On

9.1

CUT-OUT DIMENSIONS & REPLACEMENT SIZE [mm]

Cut-out Dimensions

W700 x D400

Front Allowance & Rear Allowance

FA≥65 x RA≥60

Replacement Size

W(700-800) x

D(400-430), R50

Base Height

85

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing

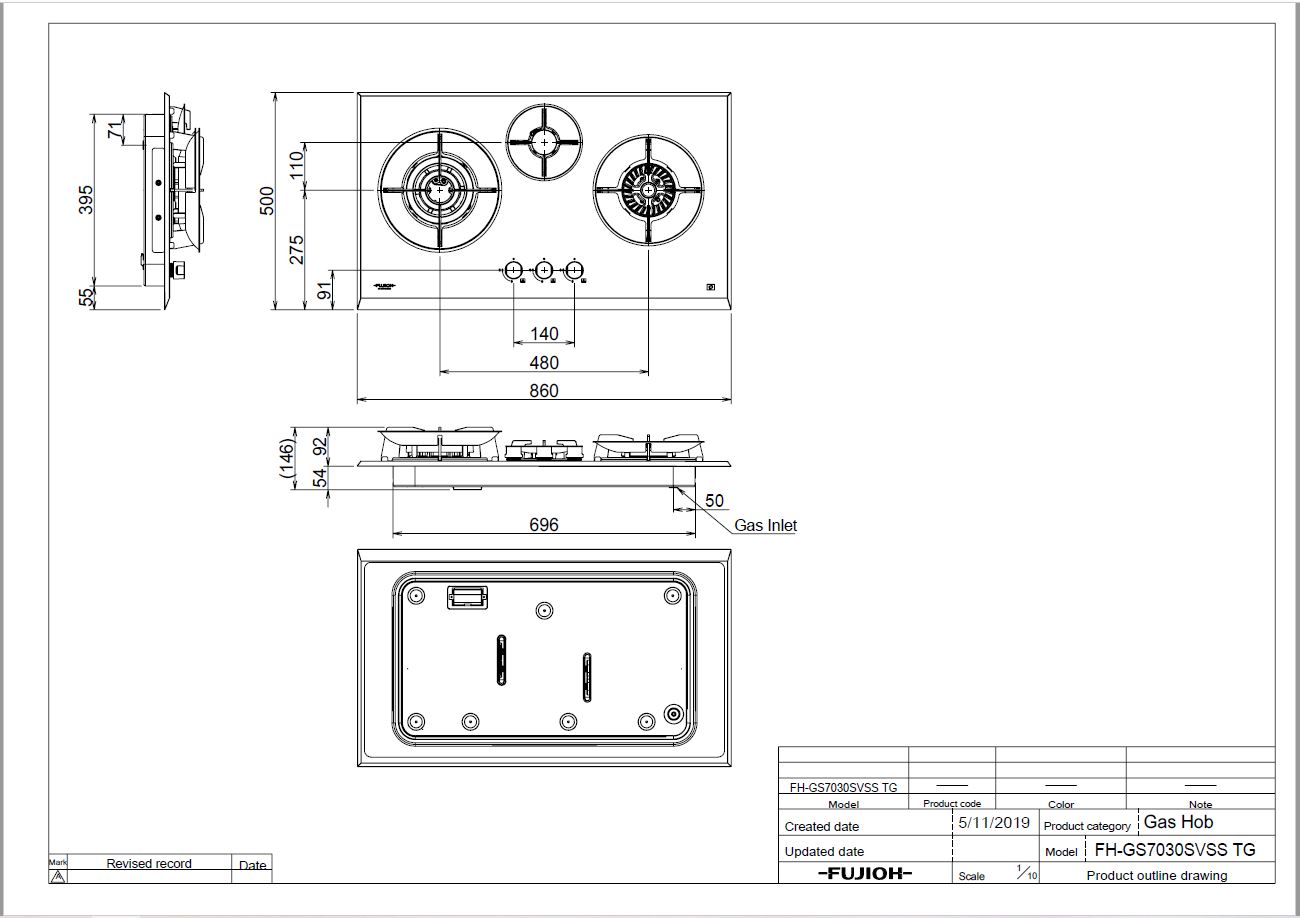

PRODUCT DRAWING

Please download Product Drawing here.

Drawing
PRODUCT MANUAL

Please download Product Manual here.

Downloads
PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
Accessories
  • Heat Deflector for Double Inner Flame Burner
  • Heat Deflector for Ultra-Rapid Flame Burner
  • Heat Deflector for Auxiliary Burner
  • Trivet for Double Inner flame Burner
  • Trivet for Ultra Rapid Burner
  • Trivet for Auxiliary Burner
  • Double Inner flame Burner Outer Ring
  • Double Inner flame Burner Inner Ring
  • Ultra Rapid Burner Outer Ring
  • Ultra Rapid Burner Inner cap
  • Ultra Rapid Burner Cup
  • Auxiliary Burner Ring
  • Auxiliary Burner Cup
CHECK FOR ACCESSORIES AVAILABILITY
