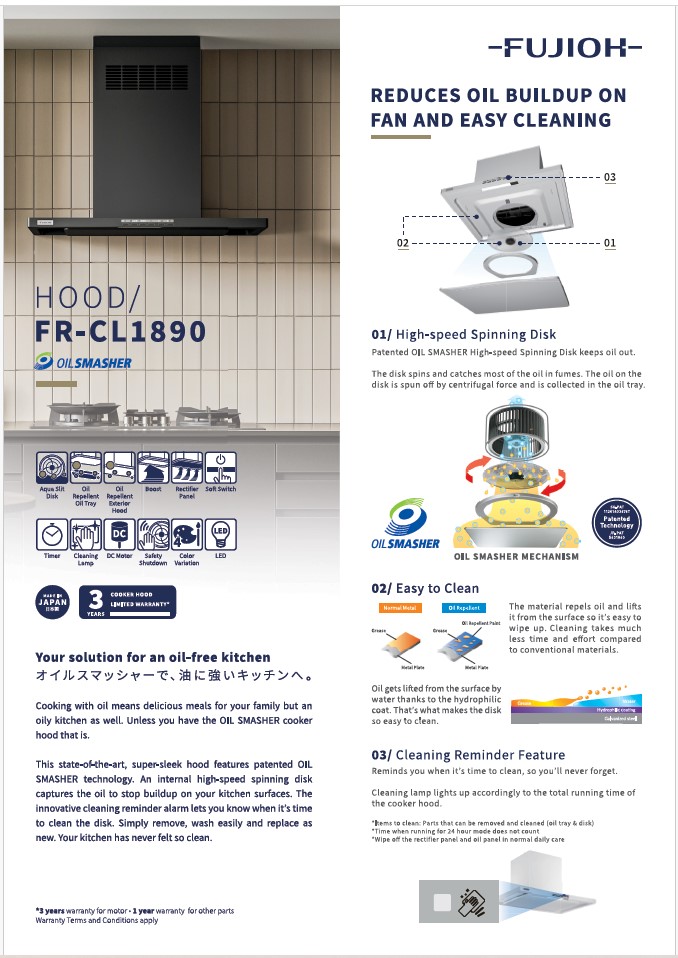

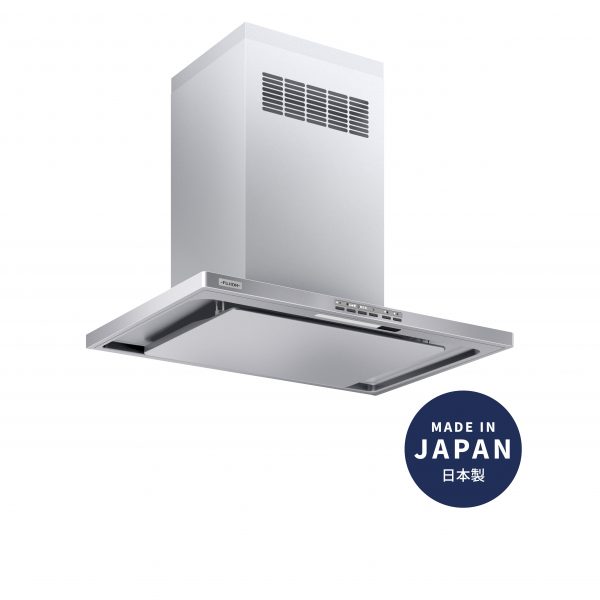

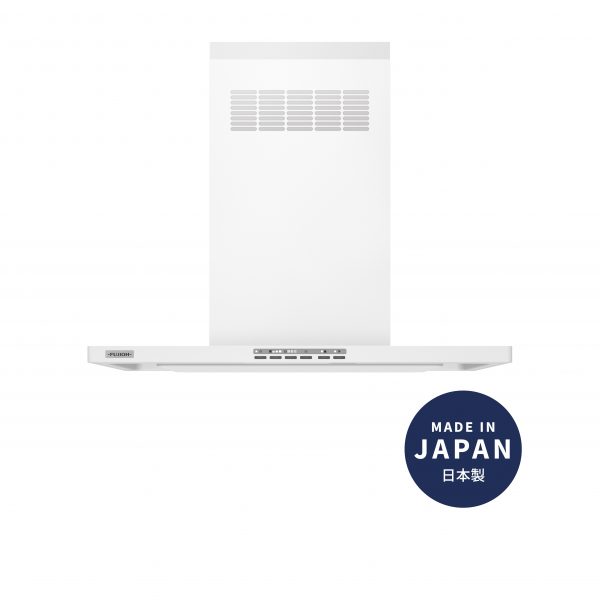

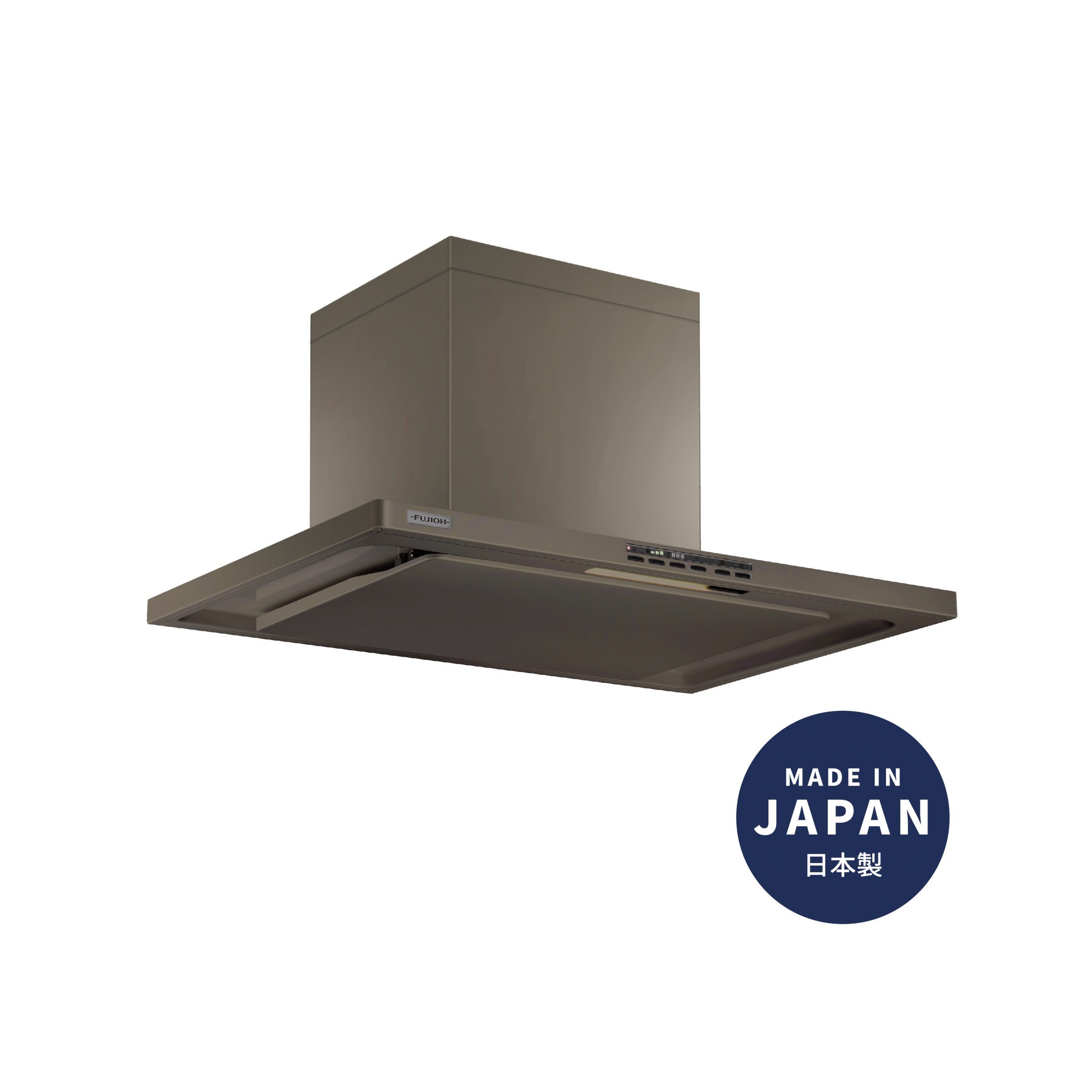

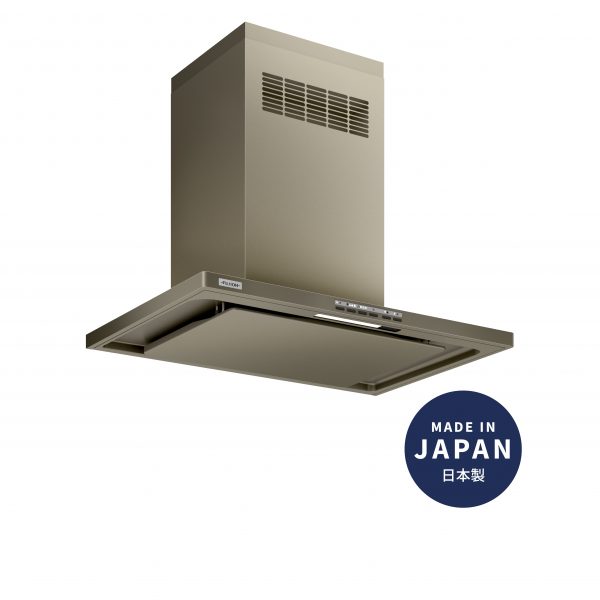

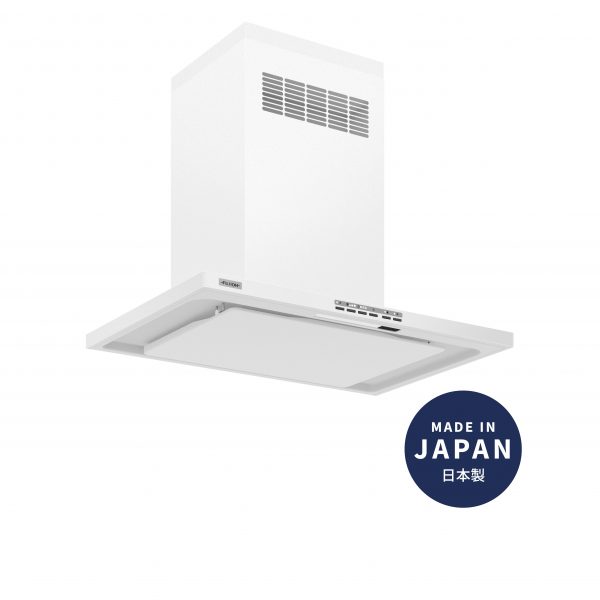

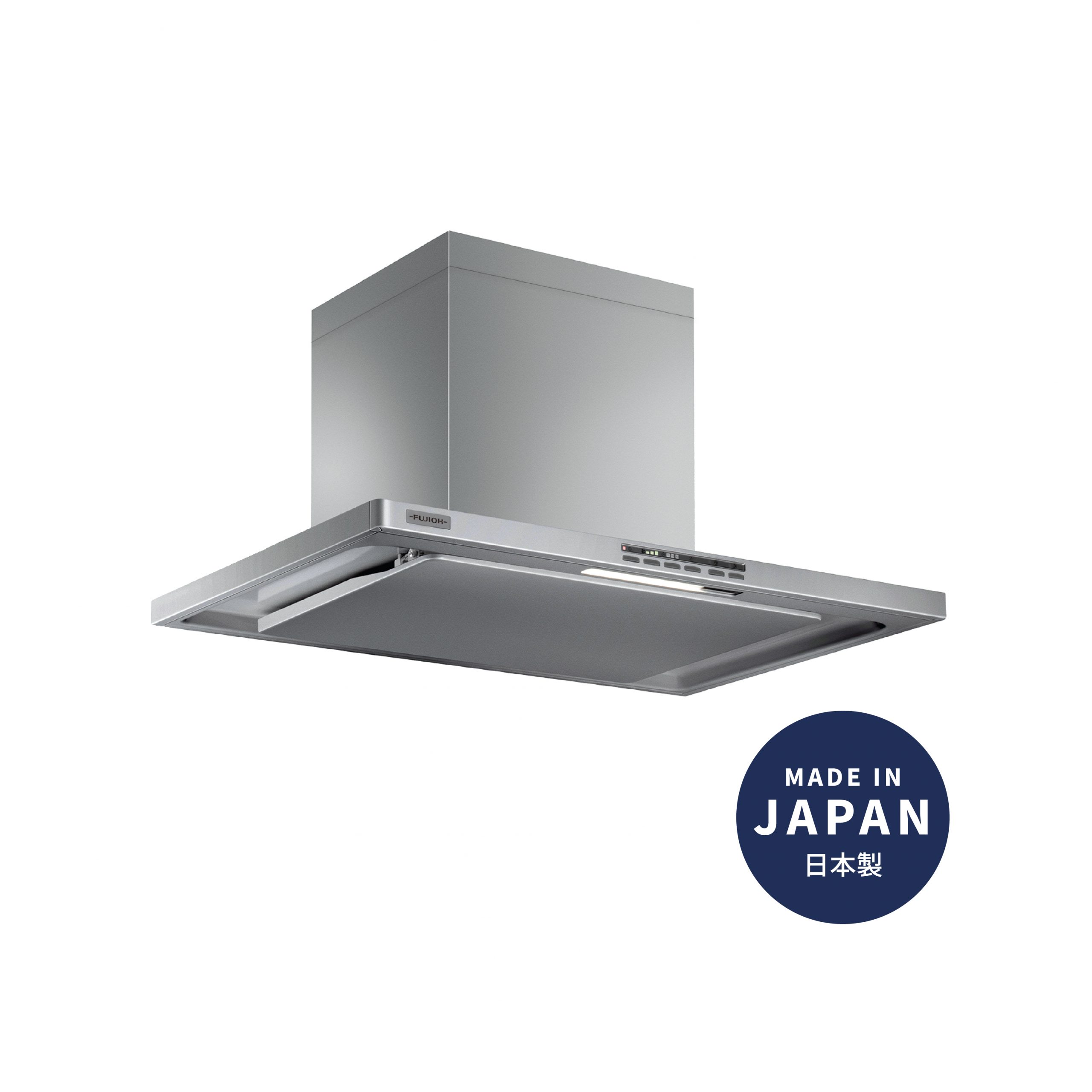

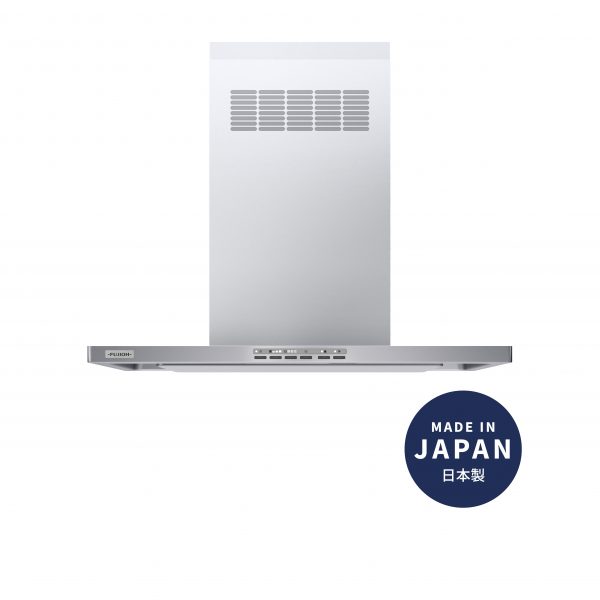

900mm Made in Japan Chimney Cooker Hood with OIL SMASHER

FR-CL1890 R/V

OIL SMASHER

Aqua Slit Spinning Disk

Oil Repellent Oil Tray

Oil Repellent Exterior Hood

Rectifier Panel

Boost

Soft Switch

Timer

Cleaning Lamp

DC Motor

Safety Shutdown

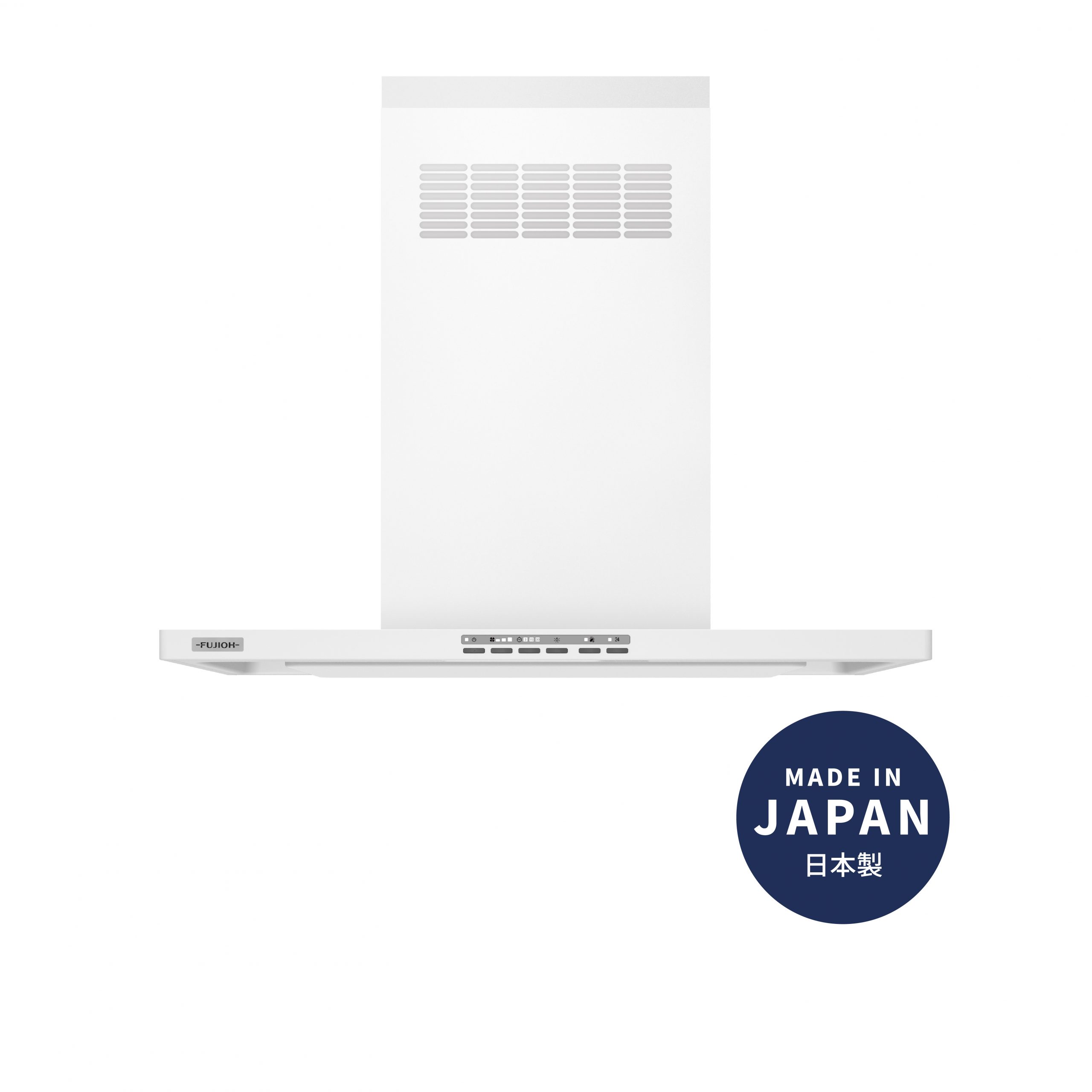

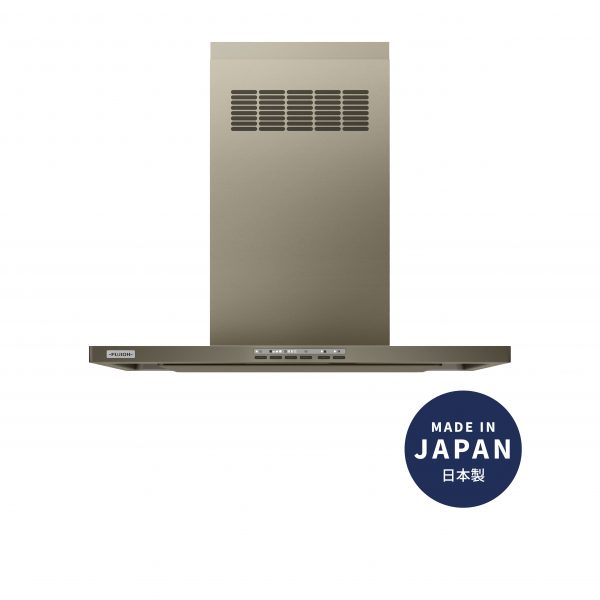

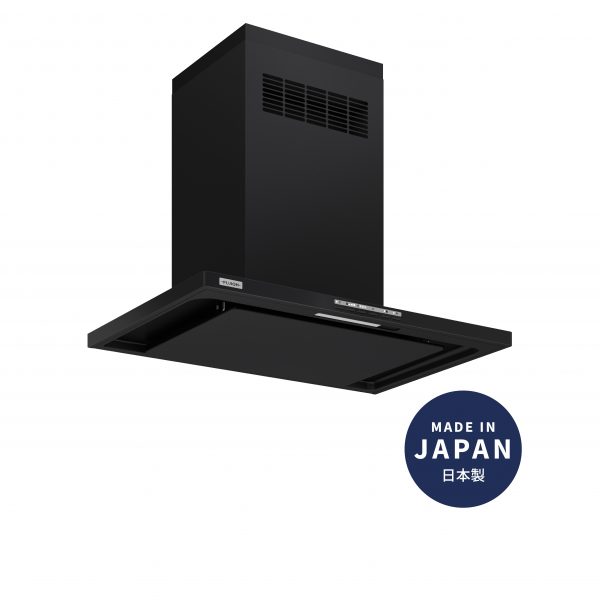

Color Variation

LED

Your solution for an oil-free kitchen

Cooking with oil means delicious meals for your family but an oily kitchen as well. Unless you have the OIL SMASHER cooker hood that is.

This state-of-the-art, super-sleek hood features patented OIL SMASHER technology. An internal high-speed spinning disk captures the oil to stop buildup on your kitchen surfaces. The innovative cleaning reminder alarm lets you know when it’s time to clean the disk. Simply remove, wash easily and replace as new. Your kitchen has never felt so clean.

Country of Origin: Made in Japan

Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

Promotions Applicable:

Extended Warranty Promotion

Bundle Packages

Patented OIL SMASHER Technology
Aqua Slit Spinning Disk
Oil Repellent Paint on exterior hood surface

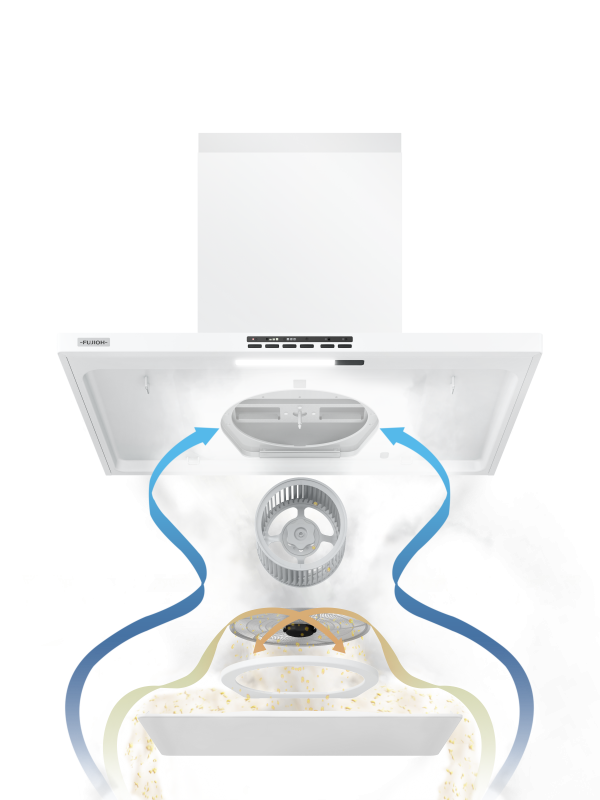

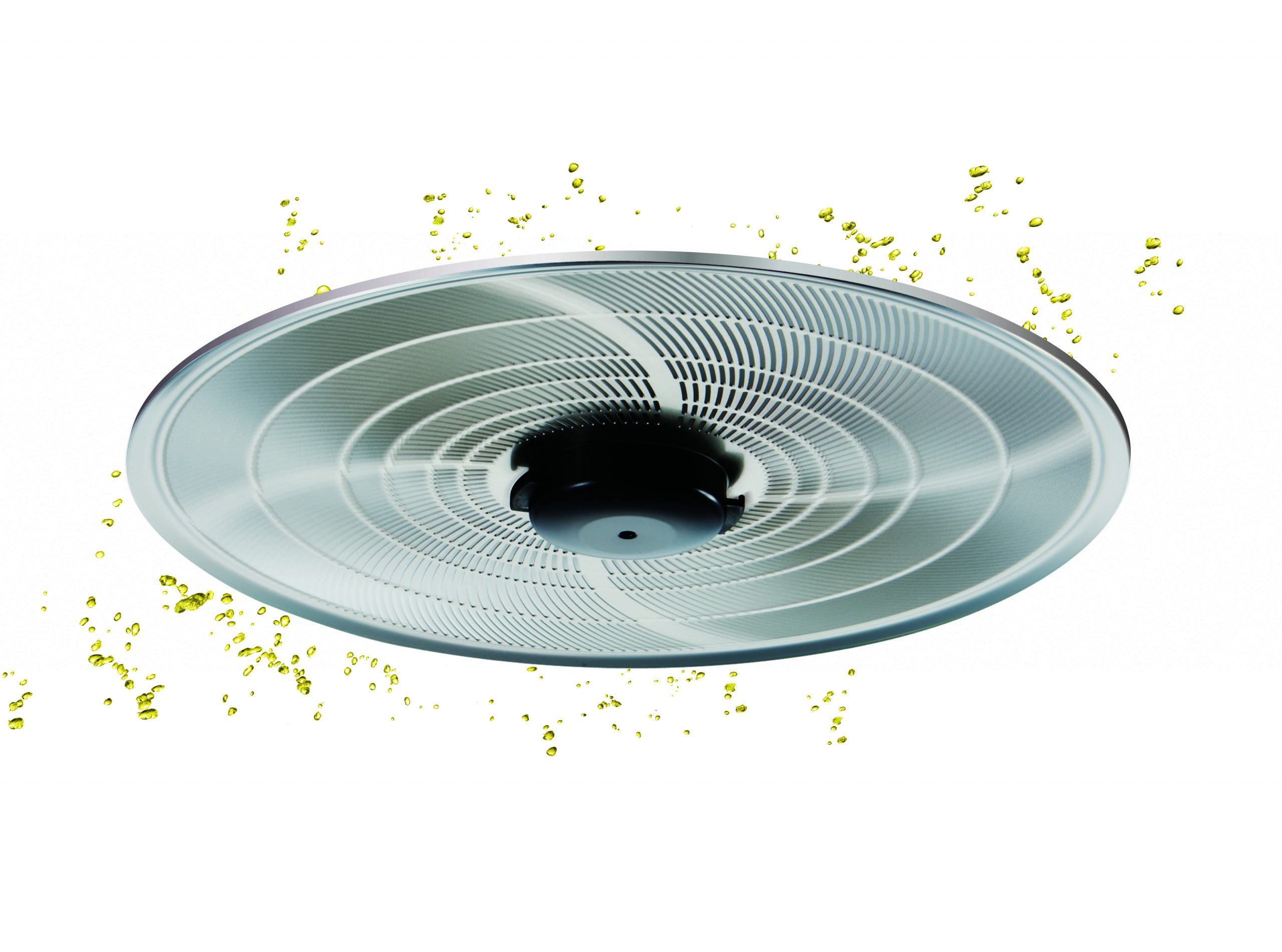

01. High-speed Spinning Disk Icon

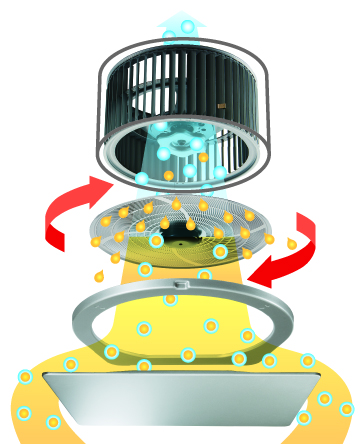

Patented OIL SMASHER High-speed Spinning Disc keeps oil out.

The disk spins and catches most of the oil in the cooking fumes. The oil on the disk is spun off by centrifugal force and collects in the oil tray.

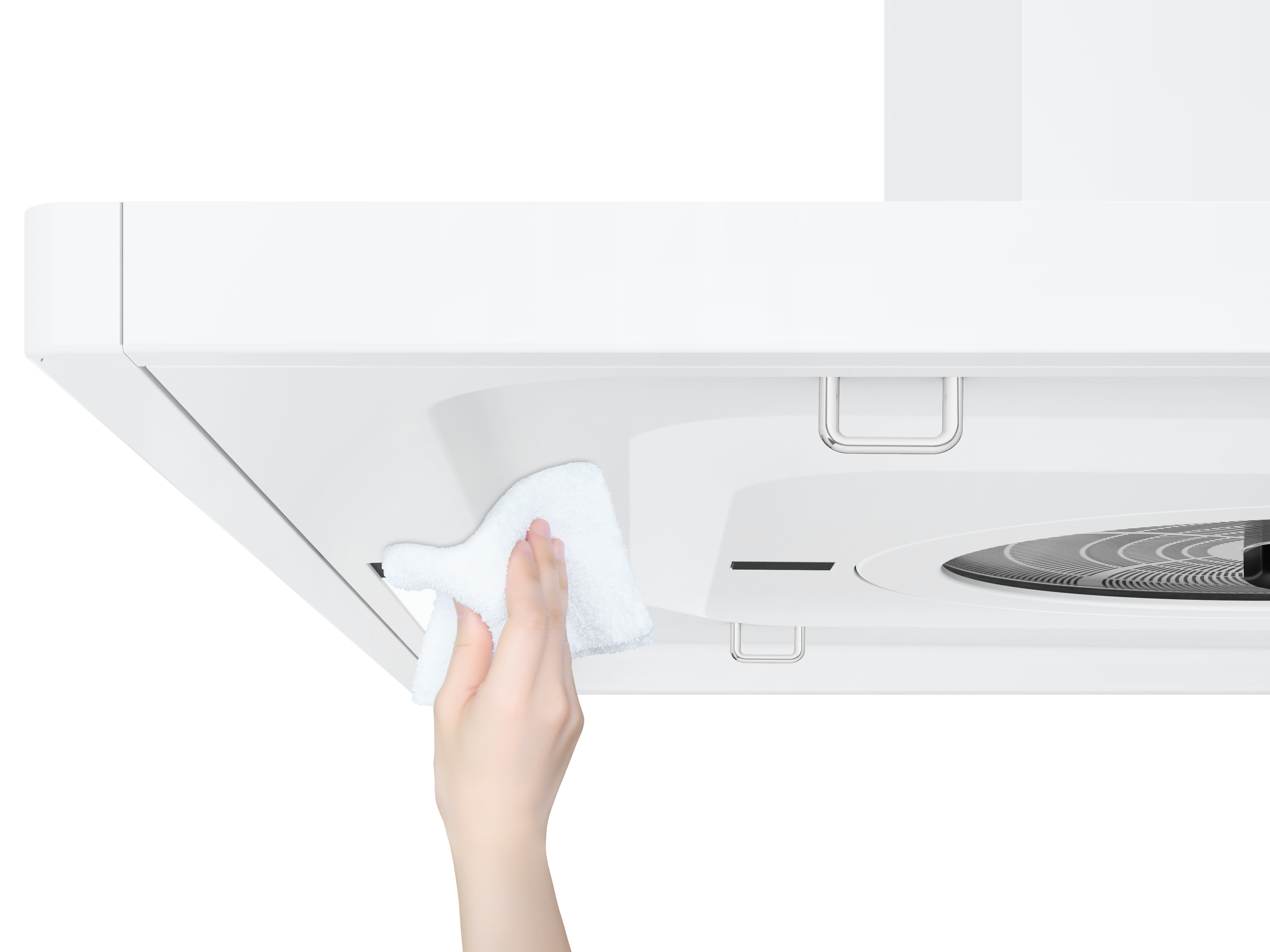

02. Easy to Clean Icon

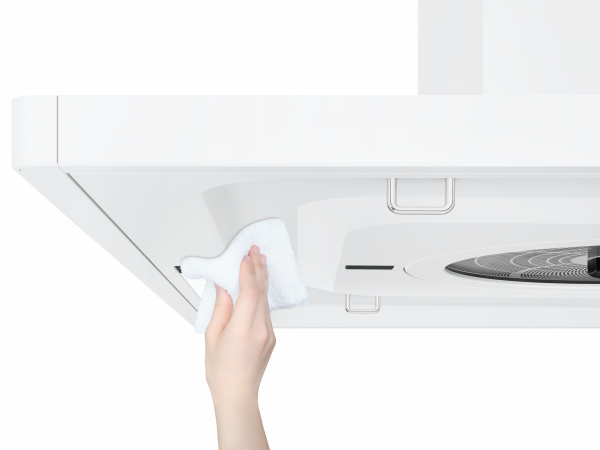

The material repels oil and lifts it from the surface so it’s easy to wipe up. Cleaning takes much lesser time and effort compared to conventional materials.

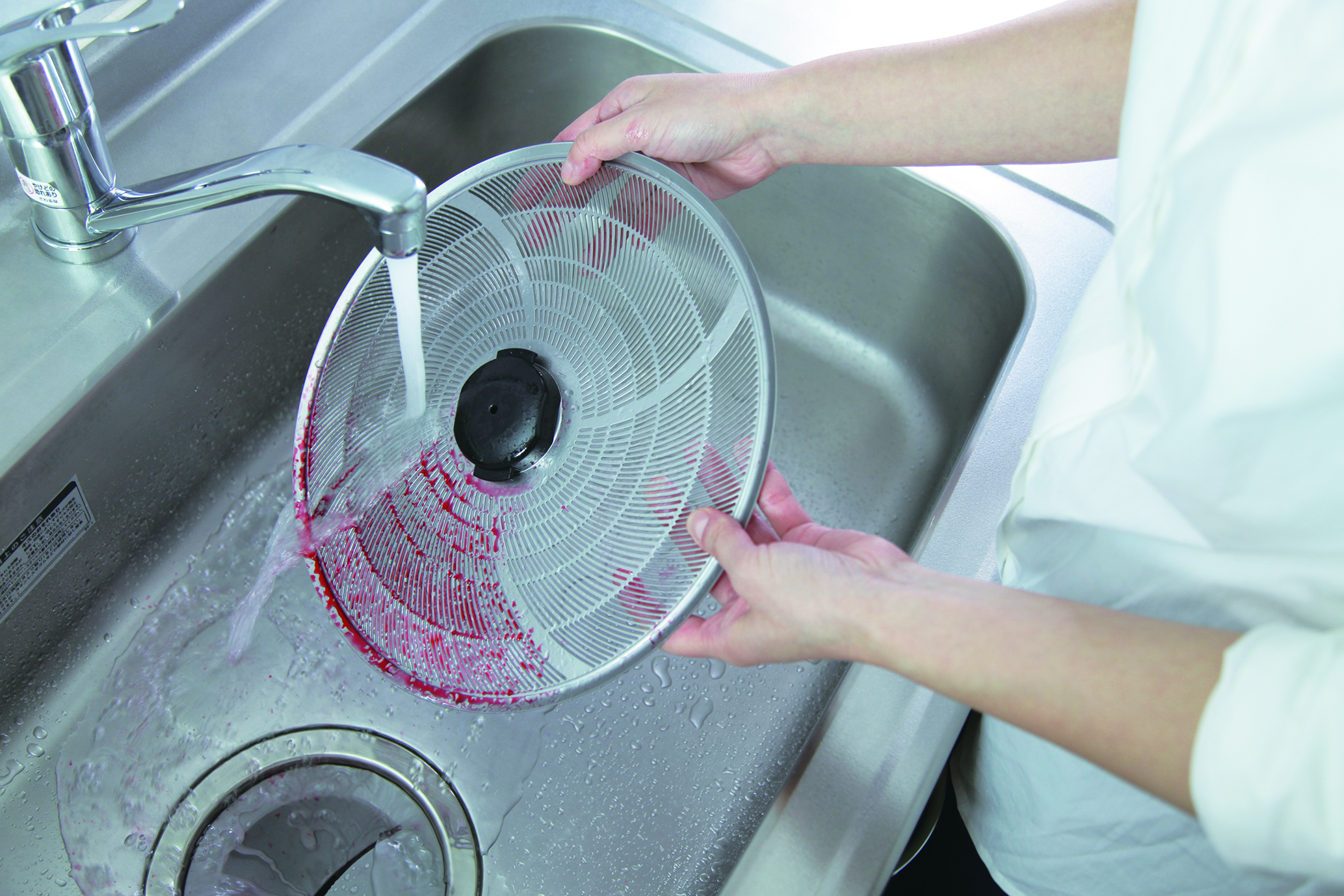

Oil gets lifted from the surface by water thanks to the hydrophilic coating. That’s what makes the disk so easy to clean.

03. Cleaning Reminder Feature Icon

Reminds you when it’s time to clean, so you’ll never forget.
Cleaning the lamp lights up according to the total running time of the cooker hood.

*Items to clean: Parts that can be removed and cleaned (oil tray & disk)
*Time when running for 24 hour mode does not count
*Wipe off the rectifier panel and oil panel in normal daily care

FEATURED VIDEOS

Models	FR-CL1890R	FR-CL1890V
Type	Recycling	Ventilation
Material	(Body) Galvanized Steel	(Body) Galvanized Steel

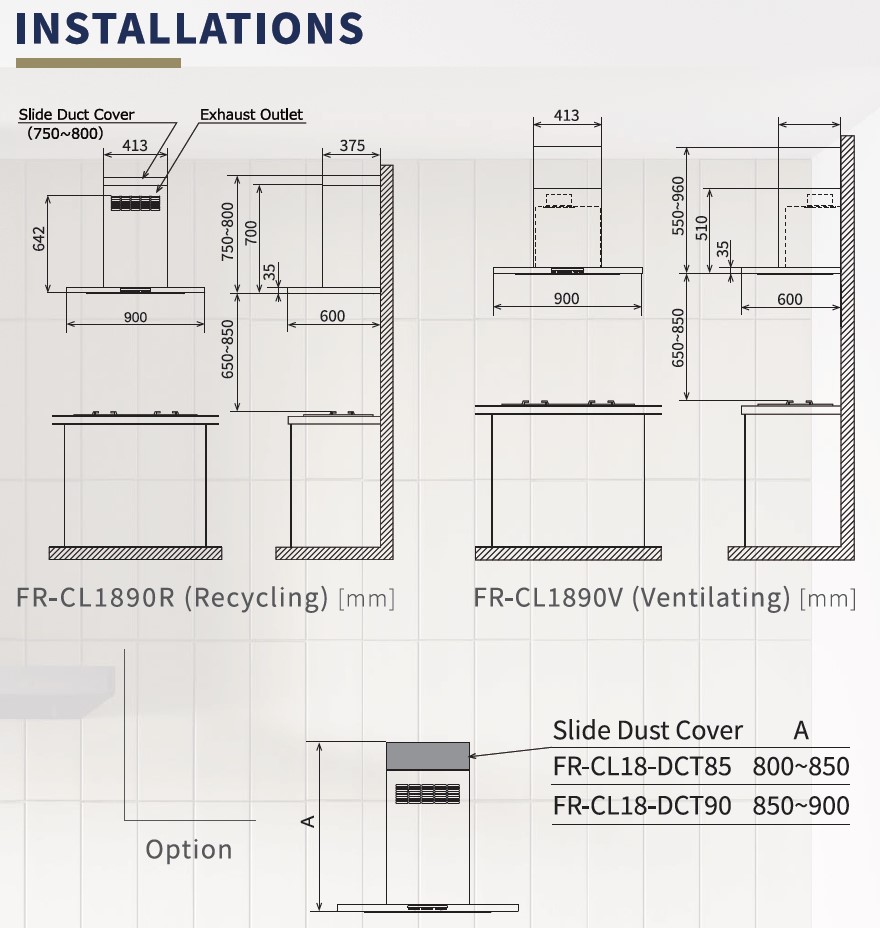

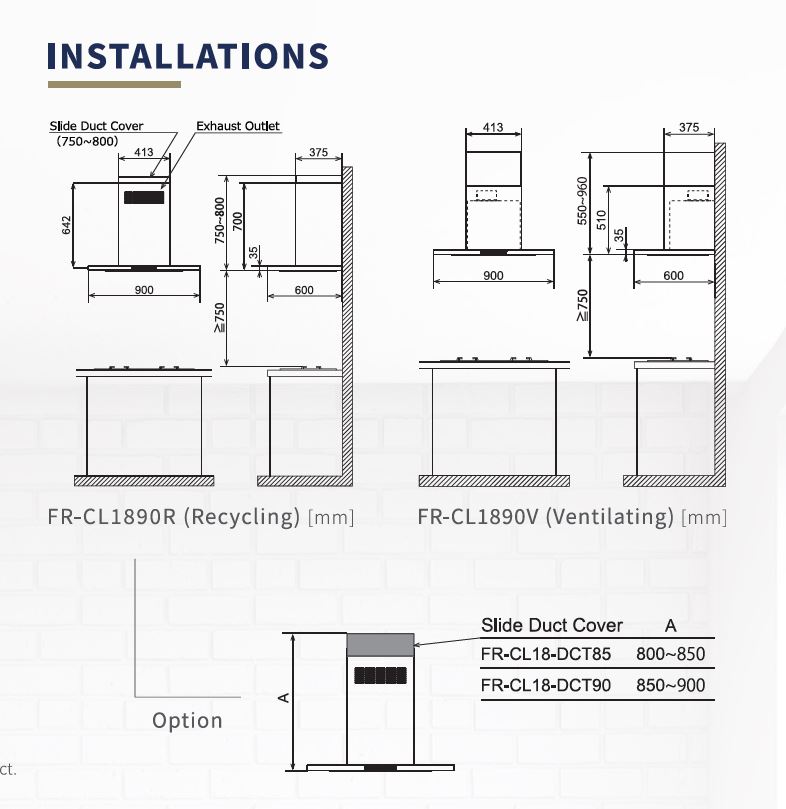

Dimensions [mm]	W900 x D600 x H750~800	W900 x D600 x H550~960
Weight [kg]	31	28
Power Consumption [W] (220/230/240V)	94/94/94	62/62/62
Voltage [V/Hz]	220-240/50	220-240/50
Duct Diameter [mm]	-	150
Air Flow [m3/h] (220/230/240V)	420/420/420	420/420/420
Sound Level [dB] (220/230/240V)	54/54/54	46/46/46
Oil Capturing Ratio [%]	94	91
Switch	Electronic Soft Touch	Electronic Soft Touch
Speed	3 Speed & Boost mode & 24 hour mode	3 Speed & Boost mode & 24 hour mode
Hood Body	Oil Repellent Paint	Oil Repellent Paint
Fan	Steel Fan	Steel Fan
Rectifier Panel	Oil Repellent Paint	Oil Repellent Paint
Filter	Aqua Slit Spinning Disk Stainless Steel with Hydrophilic Coating	Aqua Slit Spinning Disk Stainless Steel with Hydrophilic Coating
Oil Tray	Oil Repellent Paint	Oil Repellent Paint
Motor	DC Motor	DC Motor
Lighting	LED 3.5W x 1	LED 3.5W x 1
Timer	3/15/30 min & Cleaning Lamp Function	3/15/30 min & Cleaning Lamp Function
