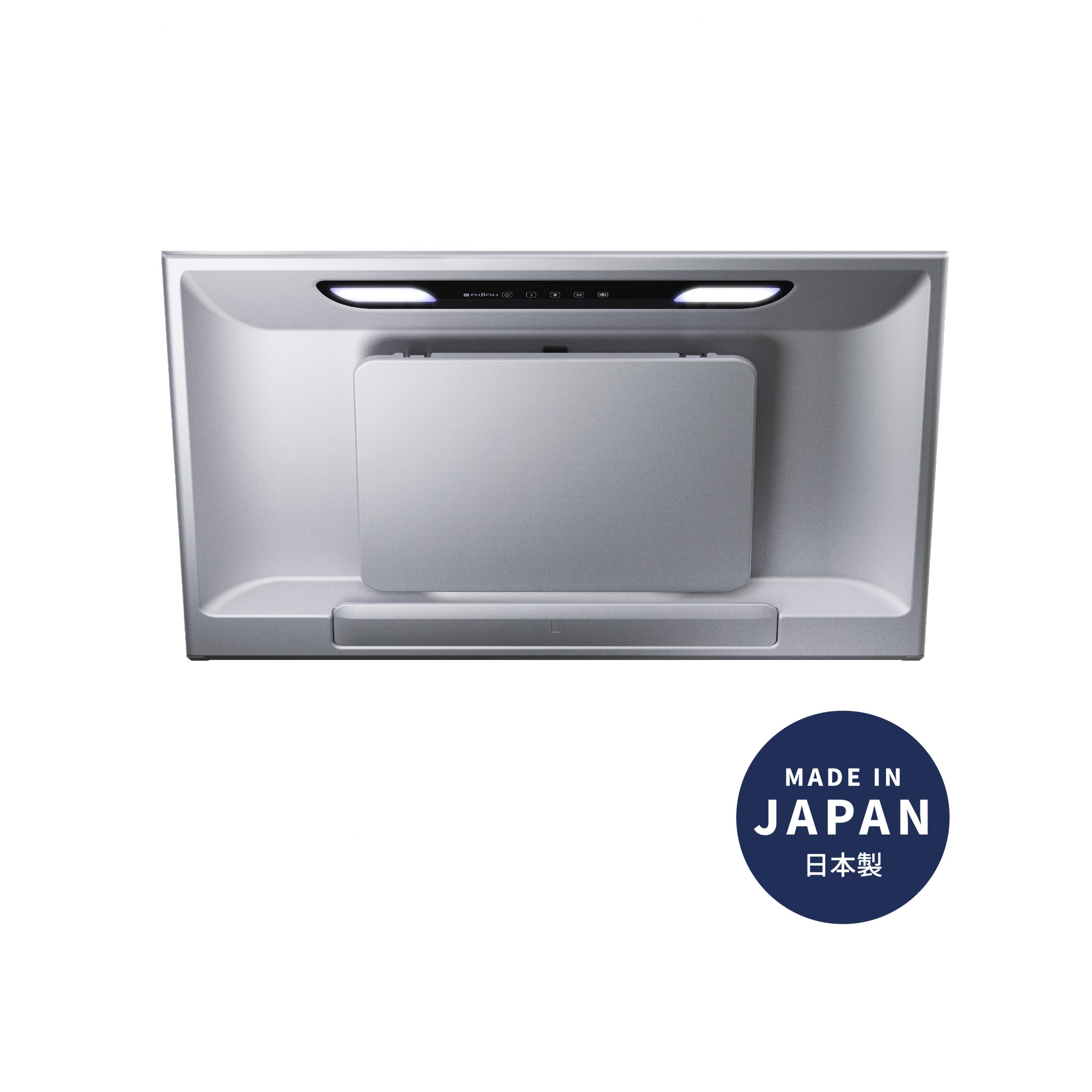

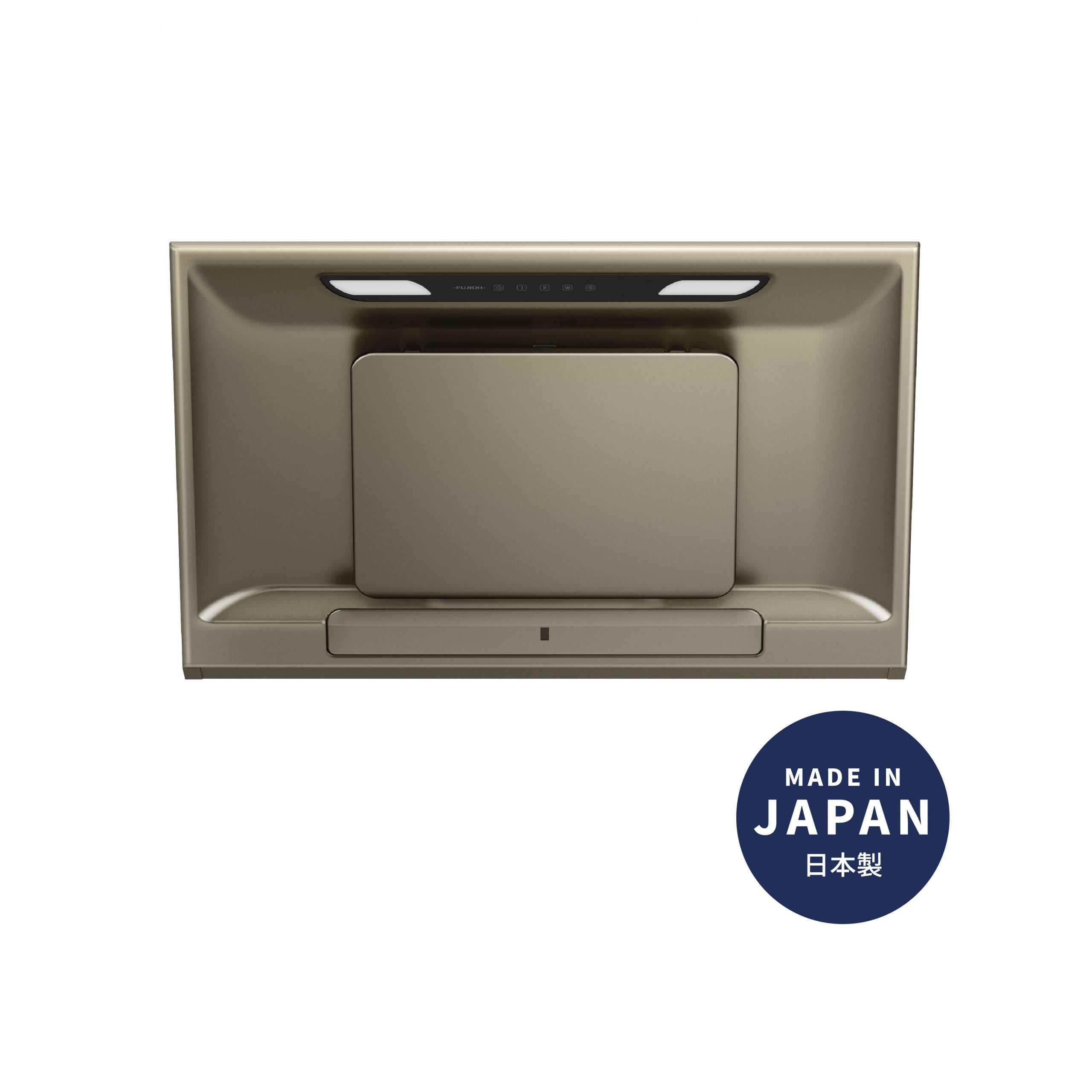

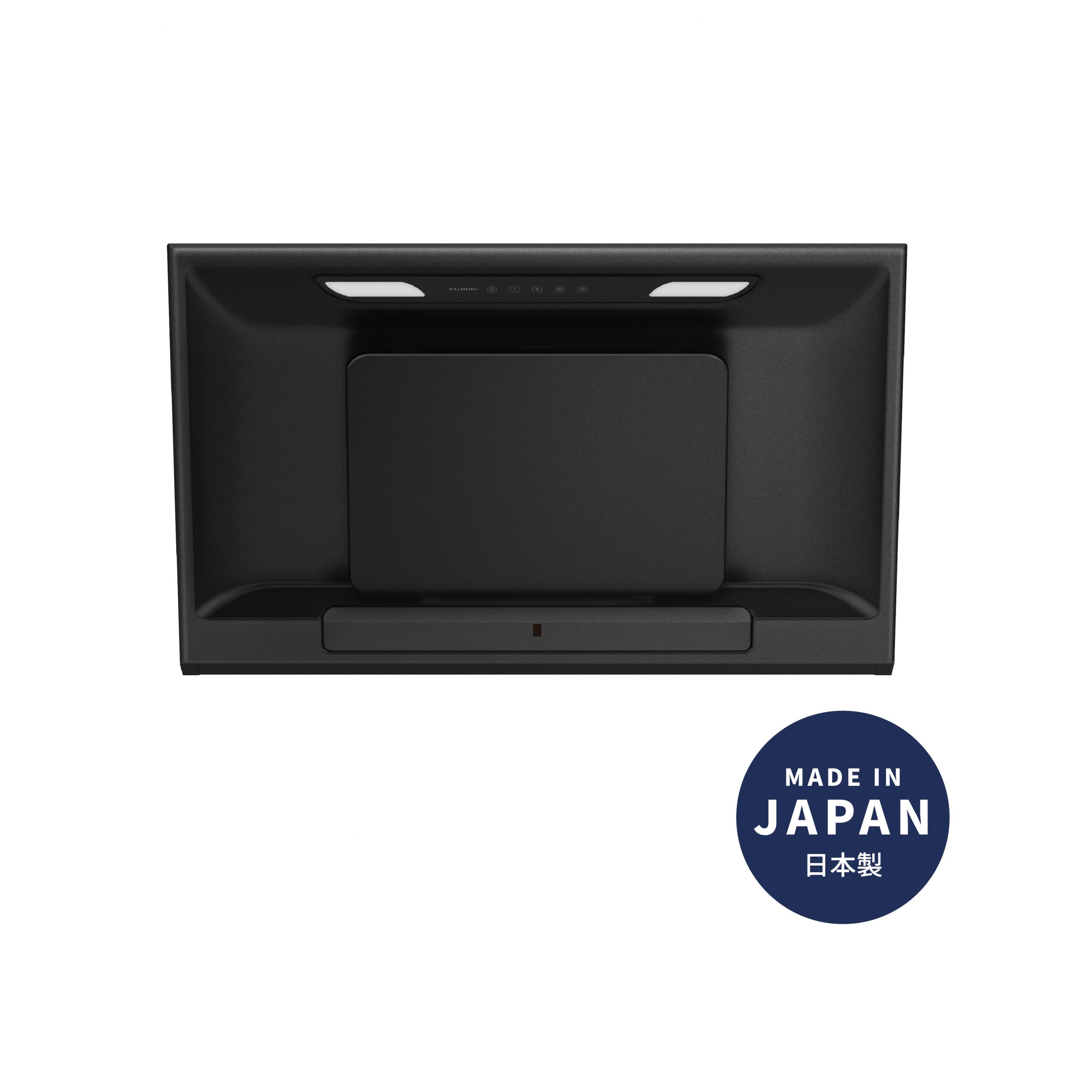

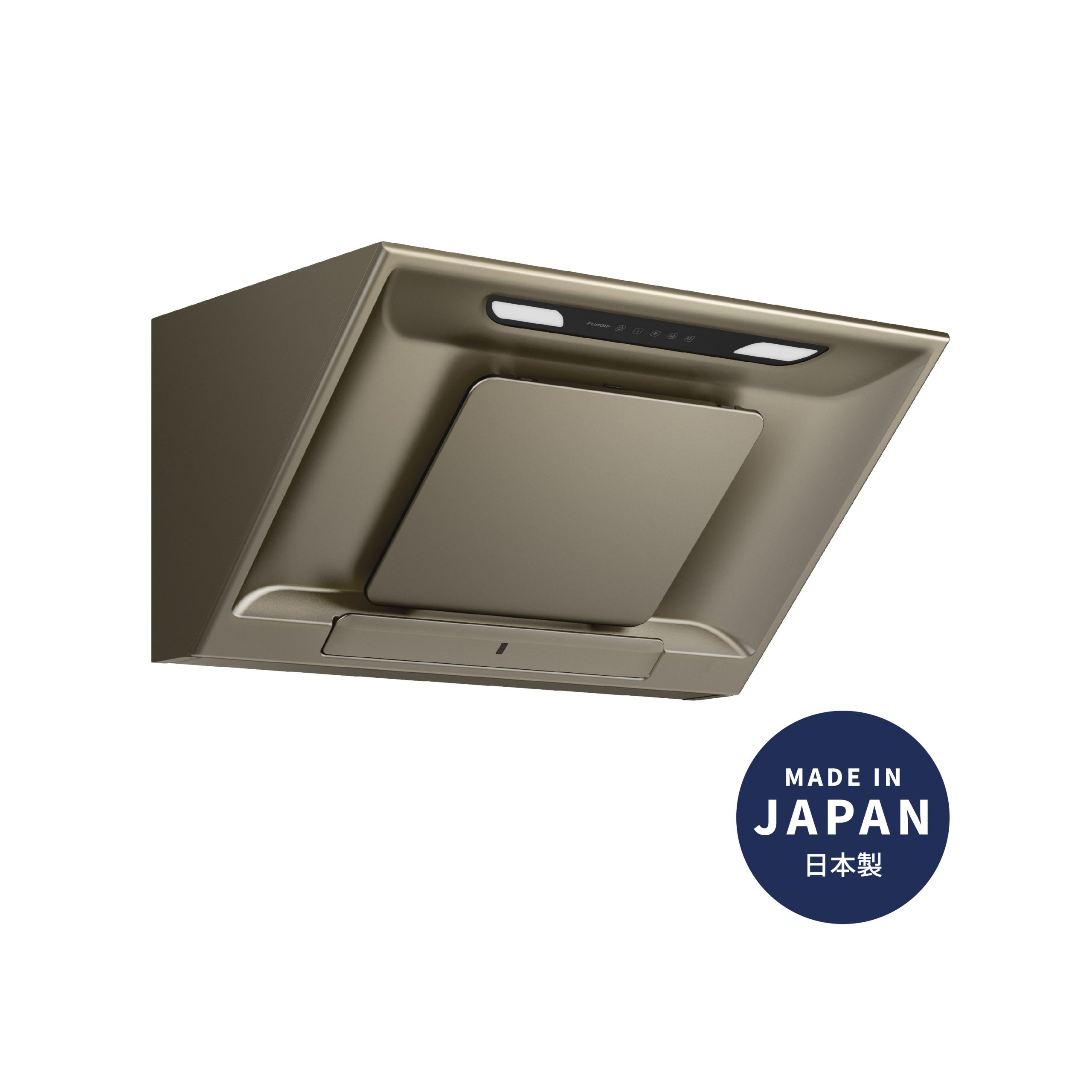

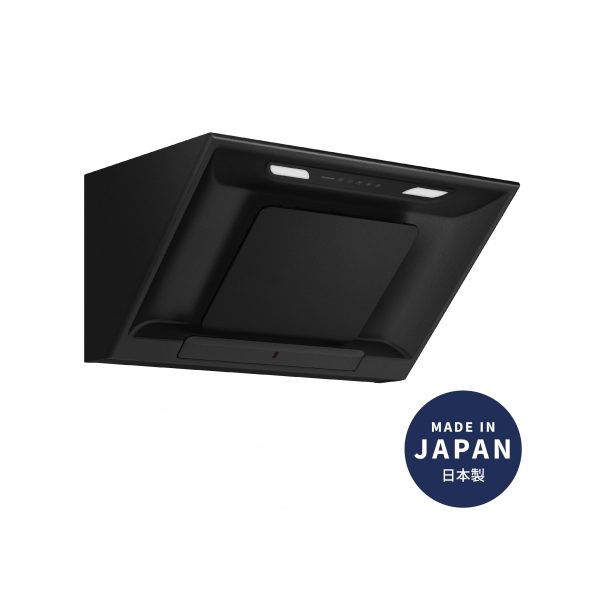

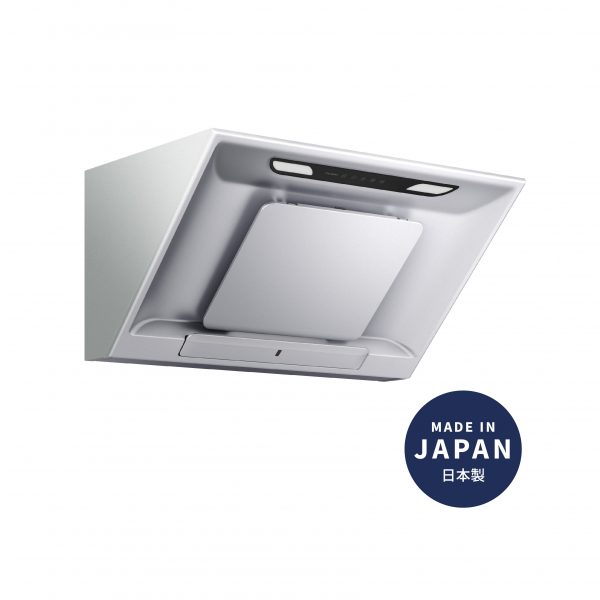

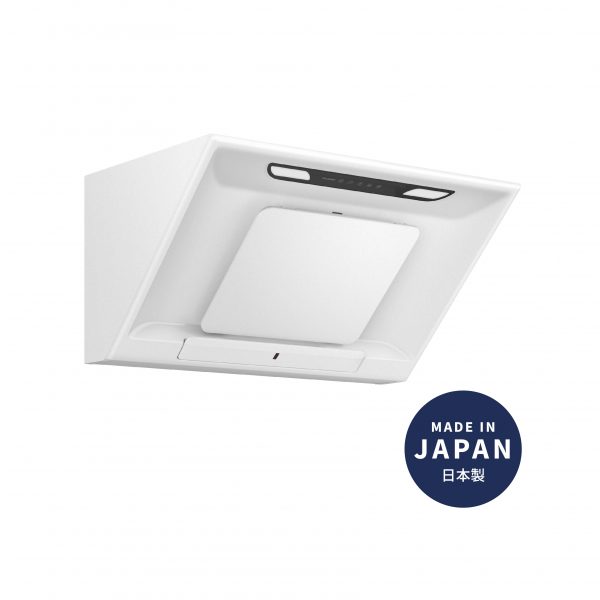

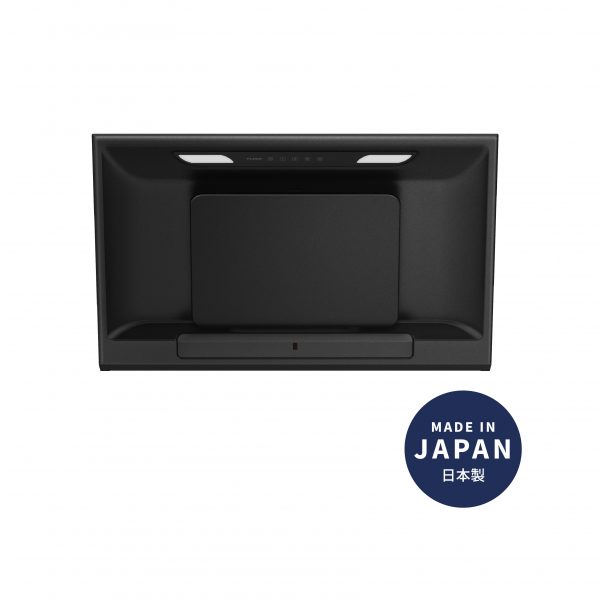

900mm Made in Japan Inclined Design Cooker Hood
Immaculate Outside in
A fusion cooker hood of an ergonomic inclined design and easy cleaning feature bringing cleanliness to a revolutionized preeminent level. Your cooker hood has never been cleaner than before, both outside in.
Country of Origin: Made in Japan
Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

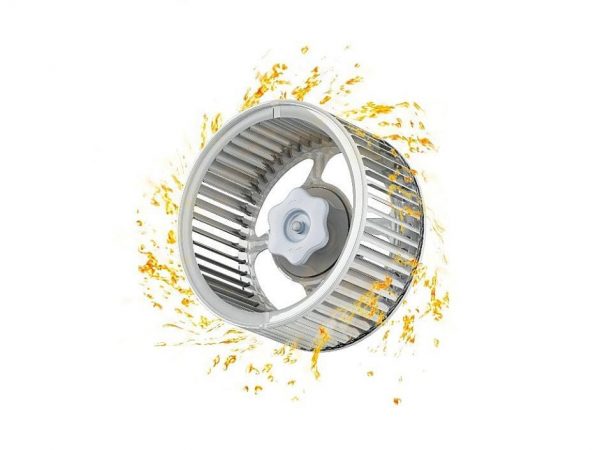

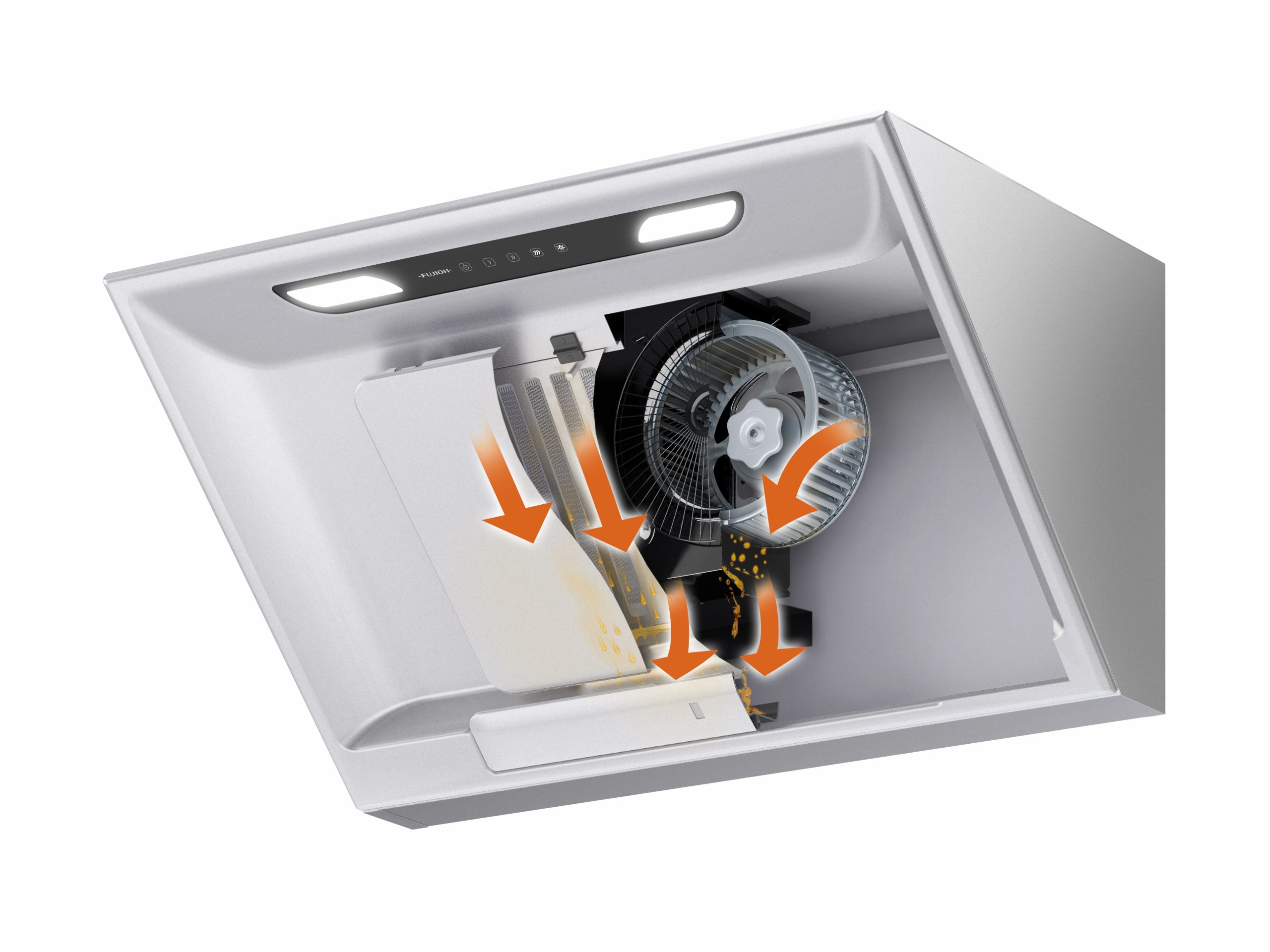

- Eliminates the accumulation of oil and stain build-up on Super Kirei fan
- Repels and induces oil from cooking fumes to accumulate in oil tray
- Keeps fan and internal body of cooker hood clean for longer time
- Suction performance is ensured by smoke capturing test on all models

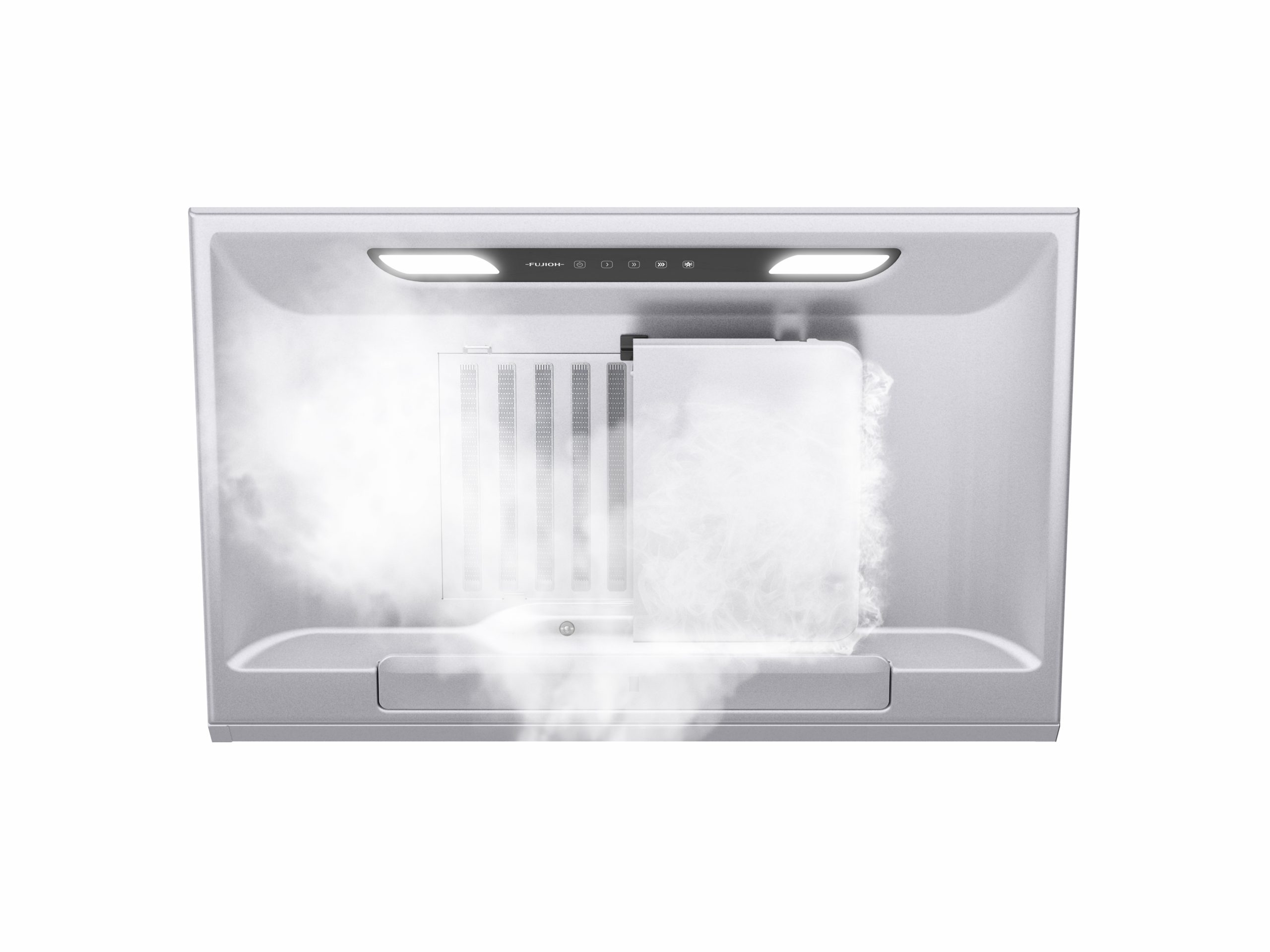

- Rectifier panel increases the suction speed and enables efficient fume capture
- Designed to be of optimum shape and position through flow path analysis
- Adjustable suction from bottom of Rectifier Panel to improve suction power from upper, left, and right side
- Capture more fumes efficiently
- Oil repellent paint is processed on all surfaces
- Easy to wipe and clean
- Hydrophilic Coating
- Easy to wipe and clean
- Sleek and stylish design
- Lower positioning to hob helps in smooth and efficient absorption of cooking fumes
Models |
FR-SC2090R |
FR-SC2090V |
|---|---|---|
Type |
Recycling |
Ventilation |
Material |
(Body) Galvanized Steel |
(Body) Galvanized Steel |
Dimensions [mm] |
W900 x D544 x H490 |
W900 x D544 x H1045~1345 |
Weight [kg] |
21 |
21 |
Power Consumption [W] (220/230/240V) |
160/170/180 |
160/170/180 |
Voltage [V/Hz] |
220-240/50 |
220-240/50 |
Duct Diameter [mm] |
- |
150 |
Air Flow [m3/h] (220/230/240V) |
495/500/505 |
700/705/710 |
Sound Level [dB] (220/230/240V) |
52/52/52 |
55/55/56 |
Oil Capturing Ratio [%] |
92 |
85 |
Switch |
Touch Switch |
Touch Switch |
Speed |
3 Speeds |
3 Speeds |
Hood Body |
Oil Repellent Paint |
Oil Repellent Paint |
Fan |
Steel Fan |
Steel Fan |
Rectifier Panel |
Oil Repellent Paint |
Oil Repellent Paint |
Filter |
Aqua Slit Filter |
Aqua Slit Filter |
Oil Tray |
Oil Repellent Paint |
Oil Repellent Paint |
Motor |
AC Motor |
AC Motor |
Lighting |
LED 1.5W x 2 |
LED 1.5W x 2 |
Timer |
- |
- |
* All specifications are based on stringent in-house test results conducted in Fuji Industrial Co., Ltd. Japan
Please download the Installation Manual for the Recycling Unit here (FR-SC2090R only). The Recycling Unit is not required for FR-SC2090V model.
- Oil Tray
- Rectifier Panel
- Aqua Slit Filter
- Recycling Unit (FR-SC2090R only)
- GFO-Duct Cover (FR-SC2090V only)
- Aqua Slit Filter with Hydrophilic Coating
- Touch Switch Panel
