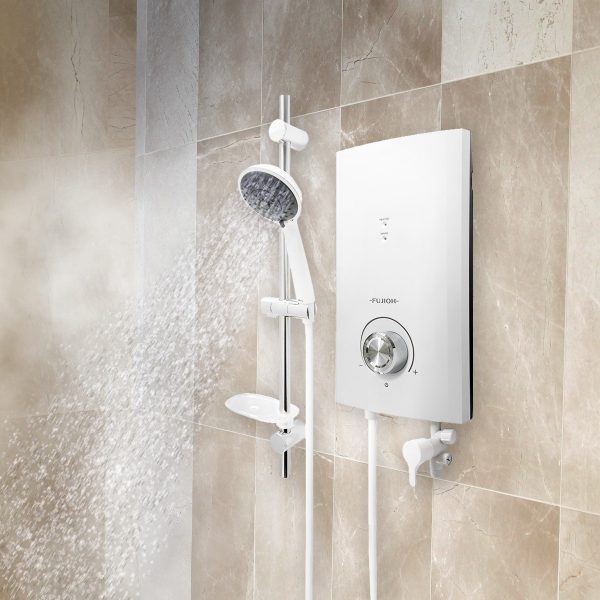

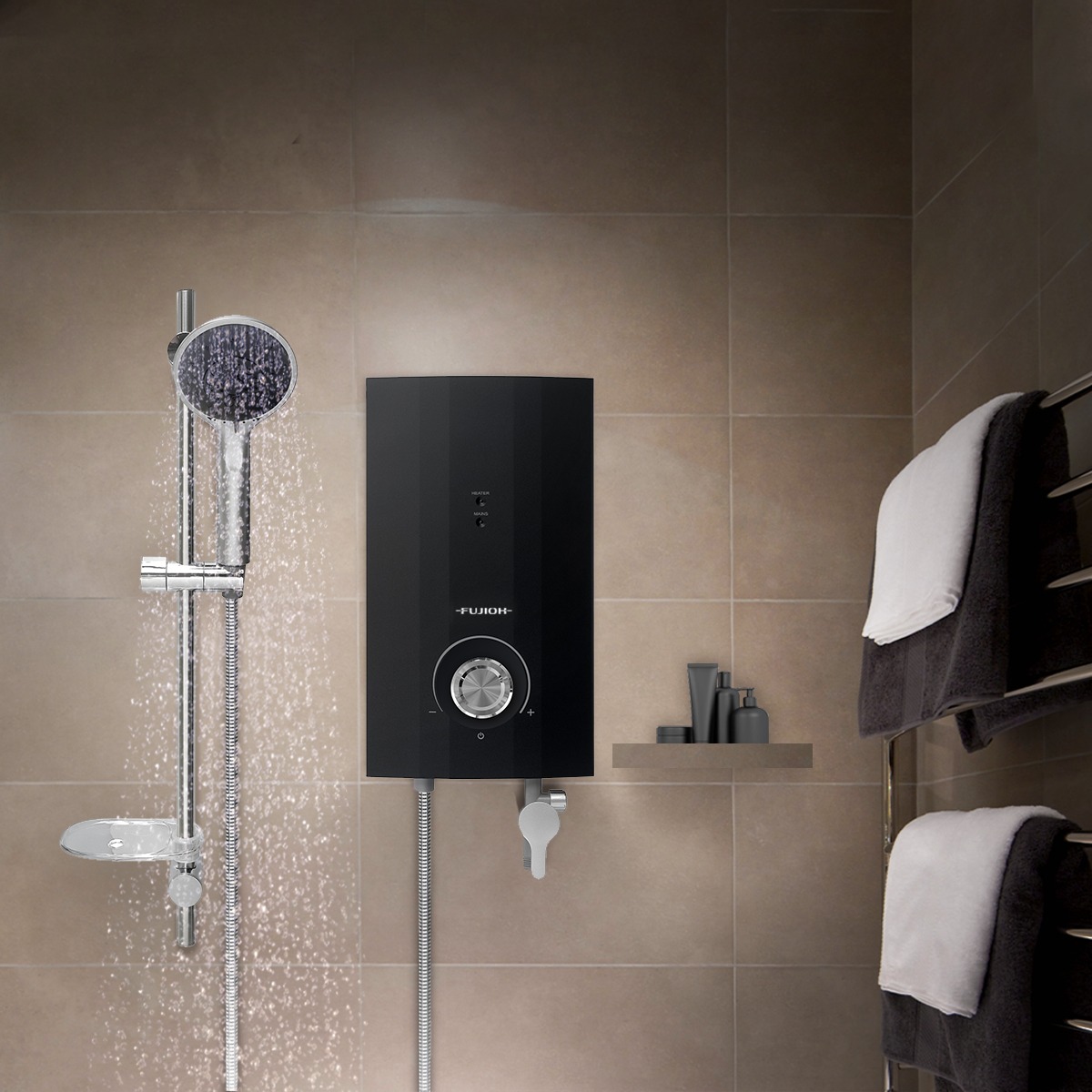

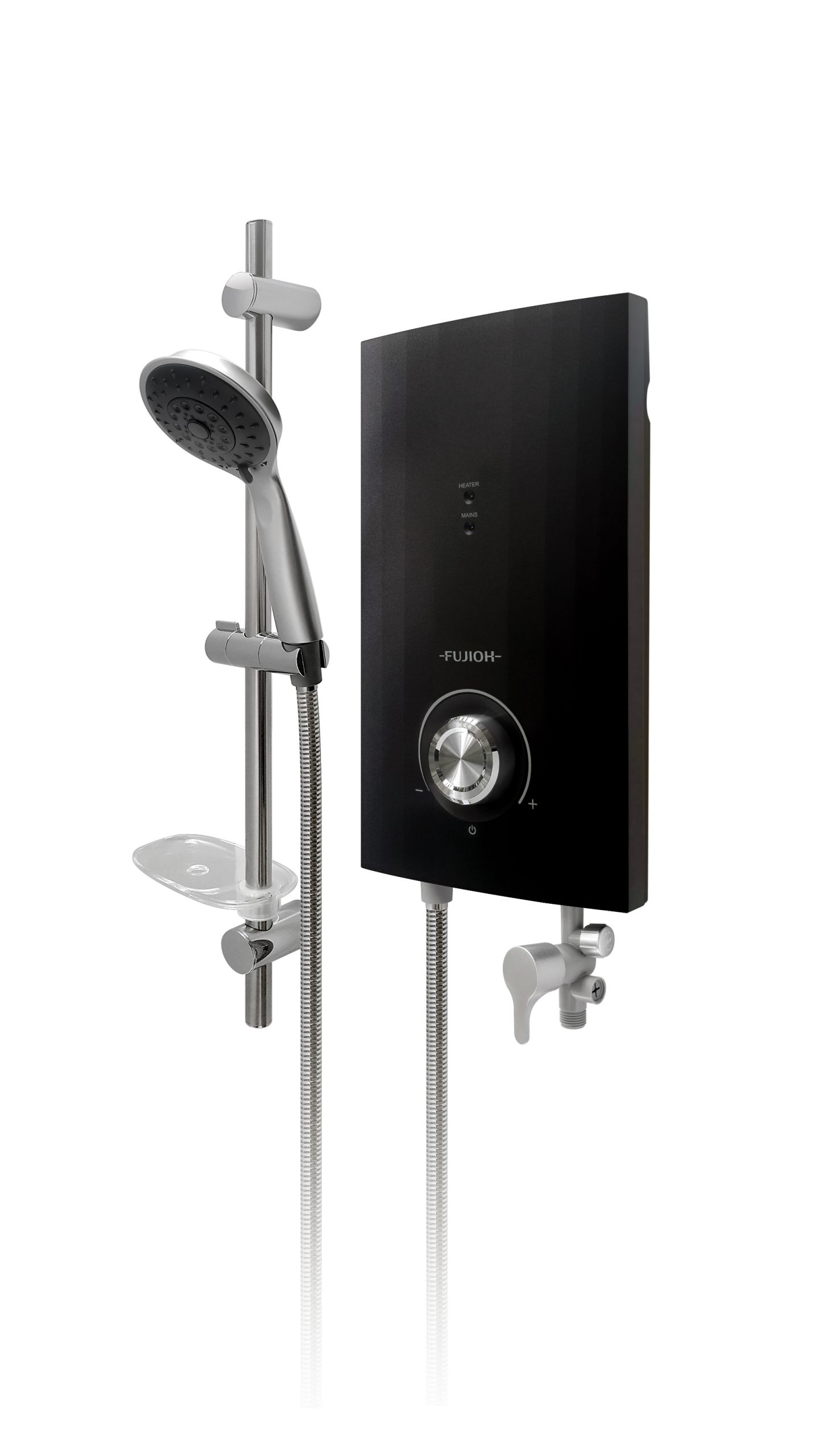

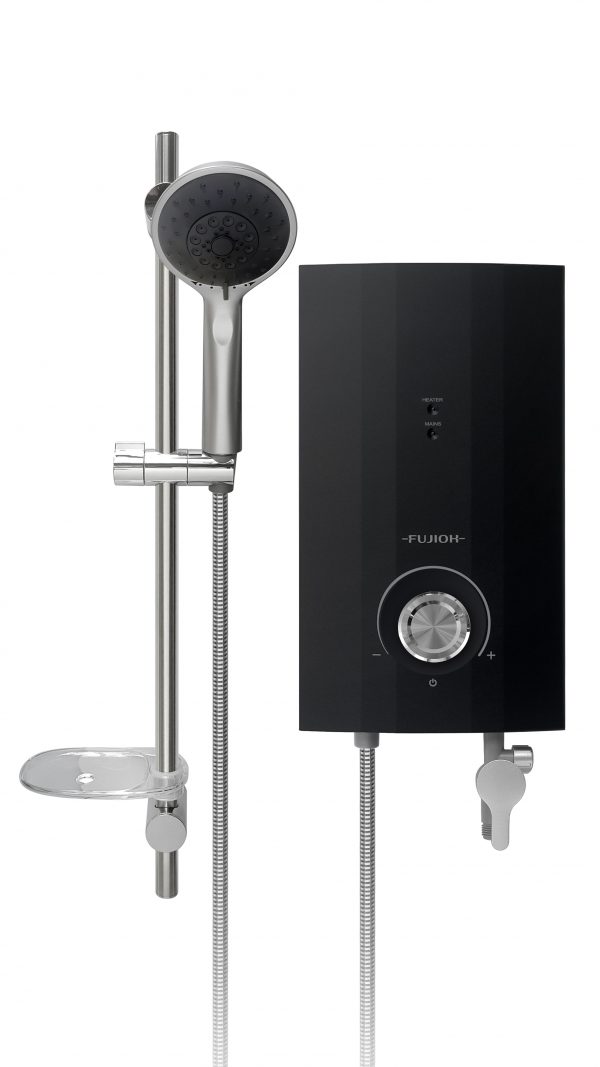

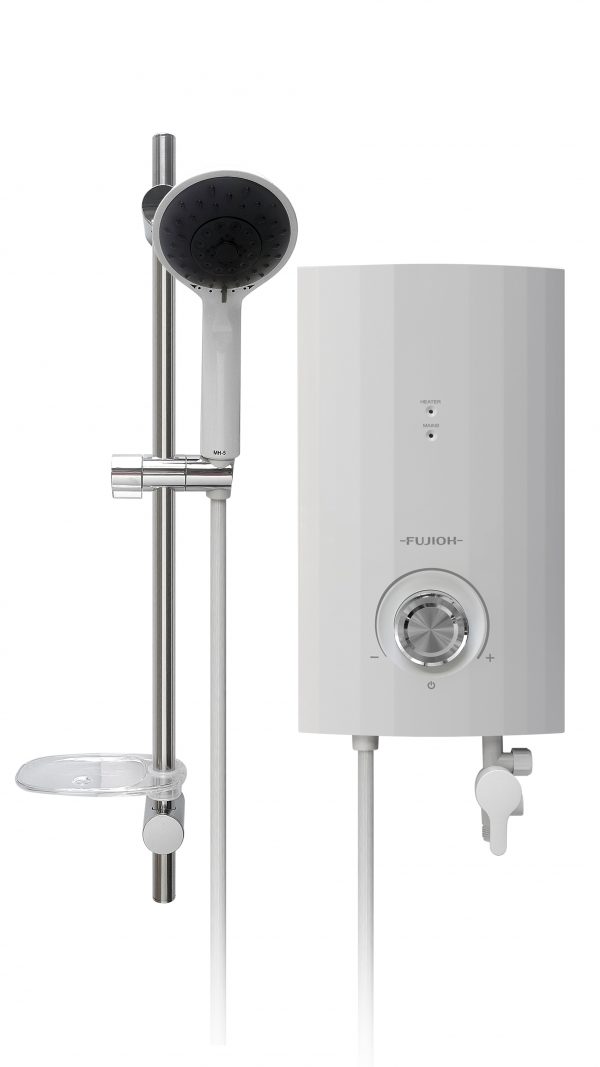

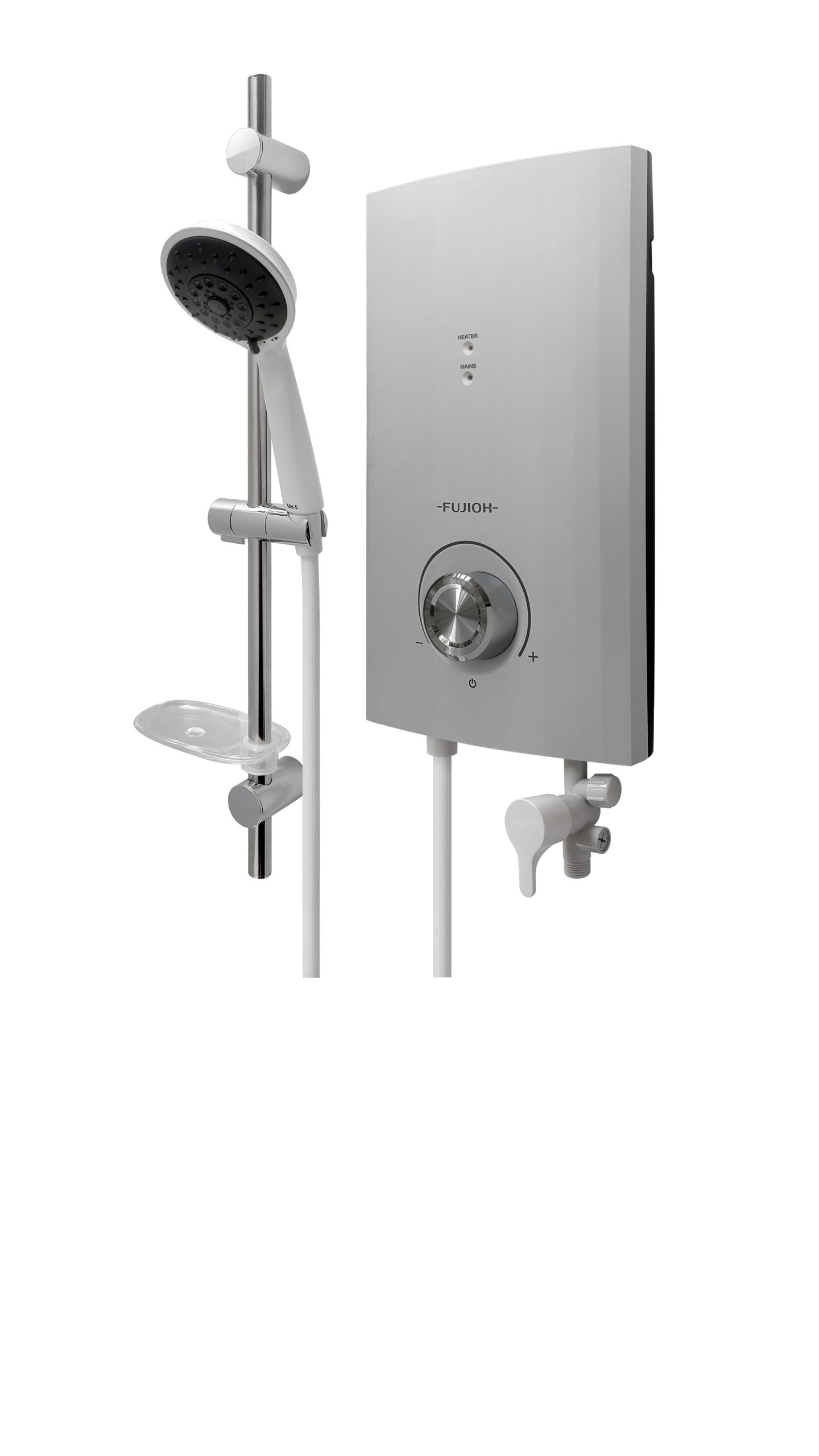

Instant Water Heater with Hand Shower

FZ-WH5033N
Icon Include
90° Stop Valve with Built-in Filter
Icon Include
Stepless Power Control
Icon Include
Fire Retardant Heater Tank
Icon Include
Auto Flow Sensor Switch
Icon Include
Double Function Thermostat
Icon Include
Anti-Leak Water Tank
Icon Include
IP25 Splash Proof Protection
Icon Include
Insulated PVC Hose

A hassle-free water heater

Manufactured to enable personal control of the shower temperature by a turn of the control while allowing you to beat the unbearable climate swings.

Enjoy silent operation, powerful flow and experience a new degree of comfort while showering. Your shower experience will never be the same!

Country of Origin: Made in Malaysia

Warranty Coverage:
5-year warranty for heating element and 1-year warranty for other parts

Promotions Applicable:
  • Hand Shower Type
  • Stepless Power Control
  • Anti-leak Water Tank
Clear
Feature
MULTI SPRAY MODES HANDSHOWER WITH ANTI-TWIST HOSE

Enjoy higher water flow rate and cleaner water

90° Stop Valve With Built-In Filter Icon

Enjoy higher water flow rate and cleaner water

Stepless Power Control Icon

Shower at your ideal shower temperature

FIRE RETARDANT HEATER TANK Icon

Peace of mind with fire retardant VO material that complies to UL-94 grade

AUTO FLOW SENSOR SWITCH Icon

Avoid dry burn by shutting of heater when water flow is too low

DOUBLE FUNCTION THERMOSTAT Icon

Auto reset thermostat when water temperature exceeds safe limit

ANTI-LEAK WATER TANK Icon

Avoid scalding by withstanding water with high pressure

IP25 SPLASH PROOF PROTECTION Icon

Protect against water and dust

INSULATED PVC HOSE Icon

Extra safety with insulated PVC hose and non-conductive stop valve

EQUIPMENT

Water Connection [mm/inch BSP]

15 or 1/2

Brushless DC Silent Inverter Pump

No

180 Swivel Divert Spout

No

Adjustable Rain Shower Height

No

PERFORMANCE

Minimum Water Flow Rate [Liter/min]

2

Minimum Water Pressure [kPa]

20

Maximum Water Pressure [kPa]

380

POWER, VOLTAGE

Voltage [V/Hz]

230/50

Available Power [kW]

3.3

ACCREDITATION

Safety Standard

IEC

ROSH

ROSH COMPLIANT

ISO Certified Manufacturer

ISO 9001:2015

DIMENSIONS AND WEIGHT

Dimensions [mm]

W220 x H390 x D89

Net Weight (Heater only) [kg]

1.3

Gross Weight (Heater + Shower Set only) [kg]

2.6

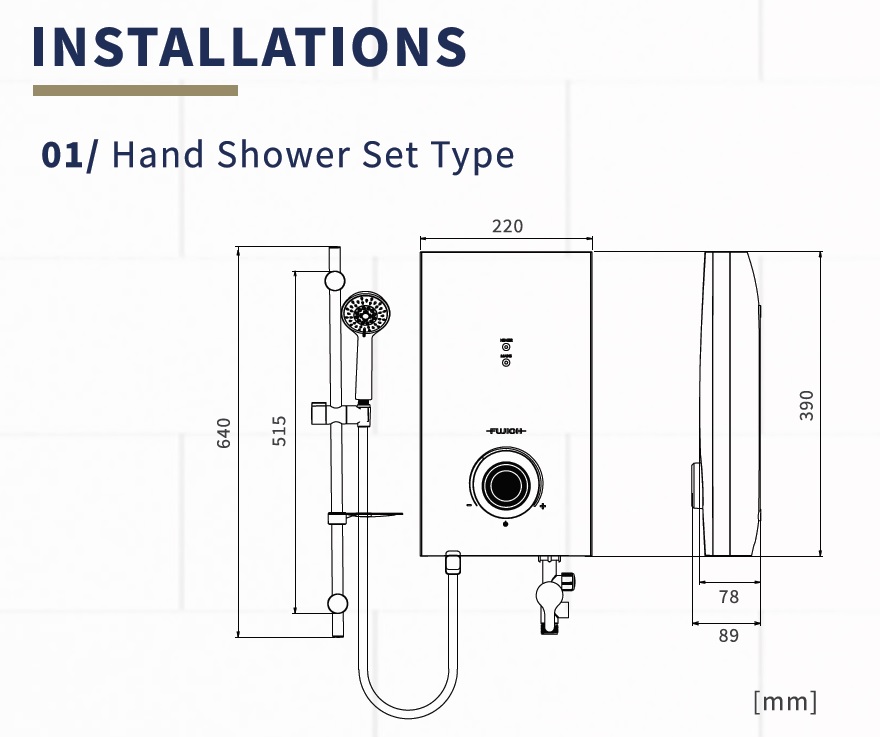

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing

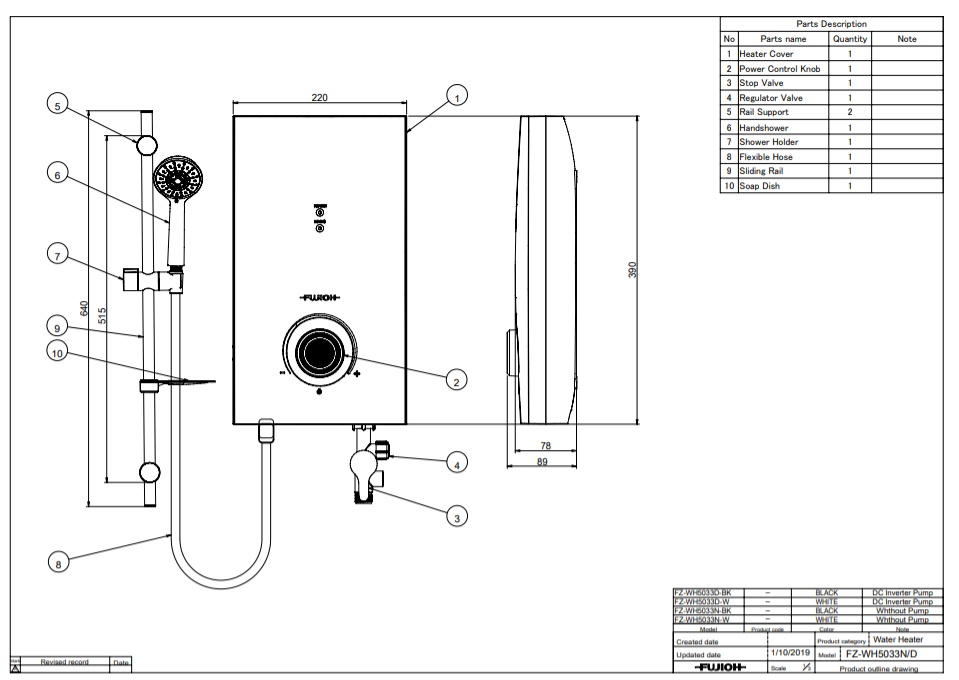

PRODUCT DRAWING

Please download Product Drawing here.

Drawing

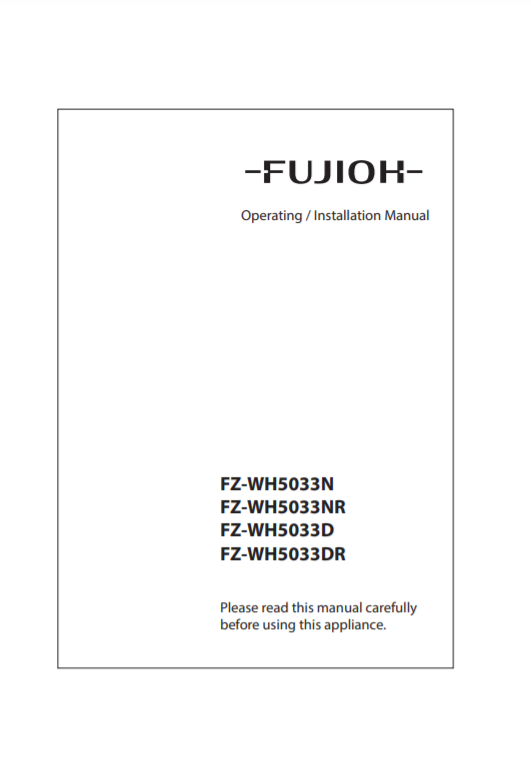

PRODUCT MANUAL

Please download Product Manual here.

Downloads

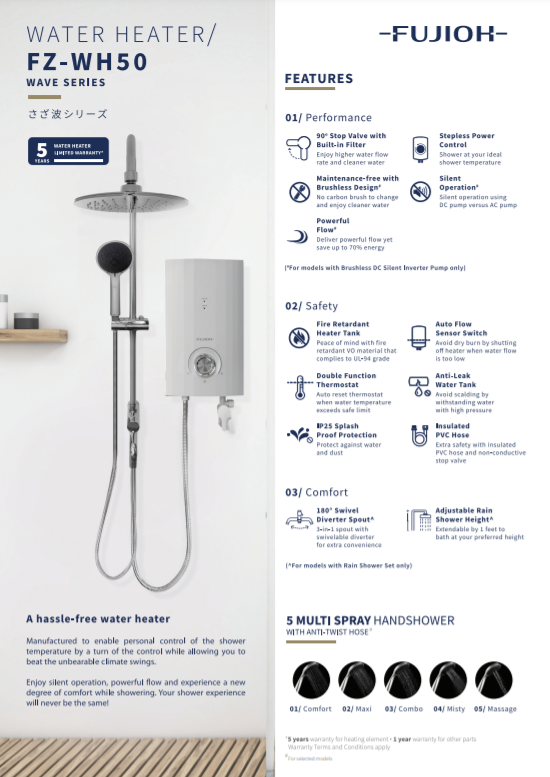

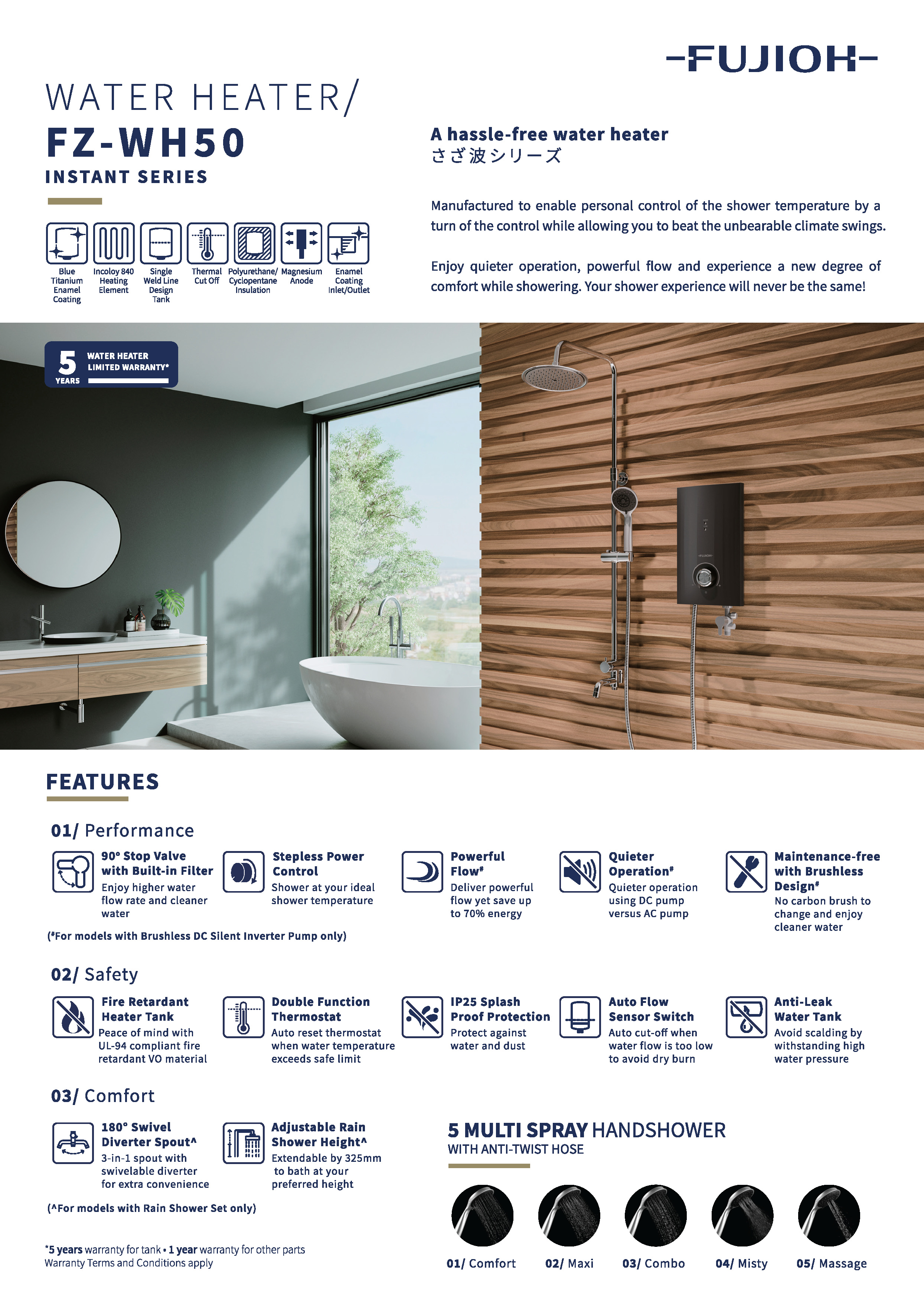

PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
Accessories
  • Hand Shower
  • Flexible Hose
CHECK FOR ACCESSORIES AVAILABILITY
